Marantz UD5007 Owner's Manual

Super audio cd / blu-ray disc player
Hide thumbs Also See for UD5007:
Table of Contents

Advertisement

Quick Links

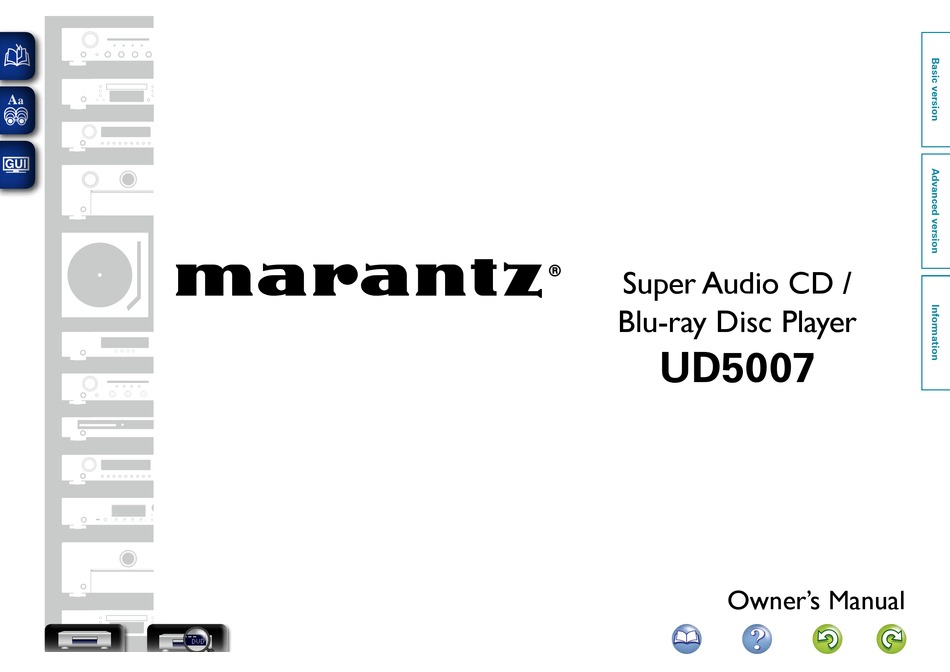

Super Audio CD /
Blu-ray Disc Player
UD5007
Owner's Manual
DVD

Advertisement

Table of Contents
loading

Related Manuals for Marantz UD5007

Summary of Contents for Marantz UD5007

  • Page 1 Super Audio CD / Blu-ray Disc Player UD5007 Owner’s Manual...

  • Page 2: Important Safety

    Do not install near any heat sources such as radiators, heat registers, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. approved by marantz may void your authority, granted by the FCC, to use stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 3 n CAUTIONS ON INSTALLATION NOTES ON USE WARNINGS • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. • Unplug the power cord when not using the unit for long periods of time.

  • Page 4: Table Of Contents

    Getting started Thank you for purchasing this marantz product. To ensure proper operation, please read these owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference. Contents Accessories Getting started ··············································································1 Advanced version ································································30...

  • Page 5: Features

    Features Cautions on handling Cautions on handling for 3D video • Before turning the power switch on Before viewing 3D video, refer to the considerations described in the A Universal Audio/Video player that plays Super Check once again that all connections are correct and that there are instruction manuals and other documents for your 3D enabled TV and Audio CD and DVD-Audio formats no problems with the connection cables.

  • Page 6: Basic Version

    Basic version Basic version Here, we explain the connections and basic operation methods for this unit. F Connections vpage 4 F Playback (Basic operation) vpage 11 F Settings vpage 26...

  • Page 7: Connections

    Connections Important information Make connections before using this unit. You can connect HDMI-compatible devices to the unit. To create a home theater that can play back higher quality video Connections with an HDMI cable offer the following benefits that can not be achieved with other connection methods. and audio by fully utilizing the capabilities of this unit and your video devices, connect this unit to each of your video devices • High quality playback by transmitting audio and video via digital signals...
  • Page 8 Important information HDMI function n Deep Color (vpage 41, 58) When a device supporting Deep Color is connected, use a cable compatible with “High Speed HDMI This unit supports the following HDMI functions: cable” or “High Speed HDMI cable with Ethernet”. n About 3D function n High definition digital audio format This unit supports output of 3D (3 dimensional) video signals of HDMI.

  • Page 9: Hdmi Connections

    HDMI connections This section describes two methods for connecting this unit and a television, connecting directly or via an Connecting a TV AV receiver. Use an appropriate method depending on the television to be used. For the connection, use an HDMI This connection is to connect the unit and a television directly.

  • Page 10: Connecting A 2-Channel Audio Amplifier

    AUDIO AUDIO • marantz does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter.

  • Page 11: Connecting To A Home Network (Lan)

    LAN port/ LAN port/ details. • The normal shielded-type Ethernet cable Ethernet Ethernet • marantz assumes no responsibility whatsoever connector is recommended. If a flat-type cable or connector for any communication errors or troubles unshielded-type cable is used, other devices resulting from customer’s network environment could be affected by noise.
  • Page 12 • The router you can use varies with the ISP. For more information, contact your ISP or PC dealer. • marantz assumes no responsibility whatsoever for any communication errors or problems resulting from customer's network environment or connected devices.

  • Page 13: Remote Control Connection

    Remote control connection Connecting the power cord When you use this unit connected to a marantz amplifier, this unit receives operation signals sent from the After completing all the connections, insert the power plug into the power outlet. amplifier and operates accordingly.

  • Page 14: Playback

    Playback When power is switched to standby Media icons n Media icons (vpage 11) ON/STANDBY X n Turn on the power (vpage 11) Press This unit can play back various kinds of media including video, audio, • The STANDBY indicator flashes. Then the indicator lights in red and and photos.

  • Page 15: About Playback Information

    About playback information INFO Press to display the information bar display or media player display. Information bar display Media player display INFO • To close the display, press until it This screen is displayed while video content is being played back. This screen is displayed when audio data is played.
  • Page 16 About playback information Home menu screen Home menu screen The unit can play music, photos, video files stored in the USB memory device connected to the front panel of the unit or on the sever Home Menu connected via the network. For playback operation, use the Home menu screen.

  • Page 17: Playing Bd And Dvd-Video

    Playing BD and DVD-Video ON/STANDBY X Press to turn TOP MENU POP UP MENU Press to display the on power to the unit. menu. • When playing back a hybrid BD disc, use the following procedures OPEN/CLOSE 5 to select the playback layer before inserting the disc (vpage 52). Press to open n Top menu (Example)

  • Page 18: Playing Super Audio

    Playing Super Audio CD Playing CD ON/STANDBY X ON/STANDBY X Press to turn Press to turn on power to the unit. on power to the unit. DISC LAYER The area/layer selected with remains in the memory even Press and hold DISC LAYER when the power is turned off OPEN/CLOSE 5...

  • Page 19: Playing Dvd-Audio

    Playing DVD-Audio ON/STANDBY X Press to turn Playing bonus group on power to the unit. DVD-Audio discs may have a bonus group that can be played after Press and hold DISC LAYER entering a password. select “Audio”. n If you enter the wrong password Select the bonus group again and enter the correct password.

  • Page 20: Playing Files (Media Player)

    Playing files (MEDIA PLAYER) Files on a USB memory device, disc or a server connected to the unit Select a file to be played on the file list on the screen to select a folder to be played, then press are played using the Media Player of the unit.
  • Page 21 Playing files (MEDIA PLAYER) n Changing the still image being played Press • Before playback or display of next image. n Pausing the display Press • To cancel pause, press n Changing interval of slide show Press n Changing the still image orientation uio p Press : Invert...

  • Page 22: Playing Netflix Video Picture

    Playing NETFLIX video Playing YouTube video picture The operation for the video site YouTube is described here. About YouTube The operation for the NETFLIX streaming service is described here. Press HOME • YouTube is a video file-sharing service operated and managed by The Home menu is displayed on the HOME YouTube Inc.

  • Page 23: Playing Vudu Hd Movies, Vudu Apps

    Playing vudu HD Movies, Playing hulu PLUS video vudu Apps The operation for the hulu PLUS streaming service is described here. The operation for the vudu HD Movies, vudu Apps streaming service Press HOME is described here. The Home menu is displayed on the television screen.

  • Page 24: Operations Enabled During Playback

    Operations enabled during playback Media icons Stopping Playback (vpage 11) This unit can play back various kinds of media including video, audio, Press during playback. and photos. In this owner’s manual, corresponding media icons are n Media icons (vpage 21) Playback stops. indicated next to titles for each operation description.
  • Page 25 Operations enabled during playback Skipping to a desired Finding specific sections Enter the search criteria. chapter/track/file with search modes Once an entry is finalized, it searches for the specified location. 0 – 9 : Number entry ENTER : Playback During playback, press Press SEARCH to select a “Search”.

  • Page 26: Playing Repeatedly

    Operations enabled during playback Memorizing locations to Playing repeatedly between Playing repeatedly replay (Marker function) specified points (Repeat playback) (A-B repeat) REPEAT Press during playback. You can attach a marker to a location you want to view or hear again, so that playback begins at that location.

  • Page 27: Random Playback

    Operations enabled during playback n Checking the program contents Playing in random order Playing in your preferred CALL Press (Random playback) order (Program playback) • The programmed tracks are shown on the display of the unit each time the button is pressed. Press RANDOM during playback.

  • Page 28: Switching The Audio

    Operations enabled during playback Slow-forward/Slow-reverse Changing the subtitle Switching the angle Press while paused. During playback of a disc or file with recorded subtitles, you can switch During playback of a BD or DVD-Video recorded with several camera the subtitles on/off as well as the subtitle language. angles, you can change the angle.

  • Page 29: Settings

    Settings Settings enabled during playback Media icons Playing high-quality audio Playback (vpage 11) (Pure direct function) This unit can play back various kinds of media including video, audio, Operations enabled during playback (vpage 21) and photos. In this owner’s manual, corresponding media icons are This enables you to play high quality audio by stopping the video and indicated next to titles for each operation description.

  • Page 30: Video Resolution

    Settings enabled during playback Video resolution • If the video resolution is not set to “Auto”, set it to correspond with the resolution of your television. This section is for making the settings for video output resolution. Set them depending on the connected • Images will not be projected normally if the television resolution and this unit’s output resolution do not television.
  • Page 31 Settings enabled during playback Adjusting the picture quality (Picture control) Setting items Setting contents Default 3DNR You can adjust the picture quality to your liking. 0 – +3 Reduces noise in the entire picture. The adjusted values can be stored in Memory 1 through Memory 5. Press PICTURE ADJ.
  • Page 32 Settings enabled during playback OPTION setting Setting items Setting details BD Audio Mode HD Audio Output : Outputs high-definition signals such as Dolby TrueHD, You can make various OPTION settings during playback. The setting menu is displayed at the left of the Switch Blu-ray Disc audio Dolby Digital Plus, and DTS-HD as high-quality bitstreams with no change screen.

  • Page 33: Advanced Version

    Advanced version Advanced version This chapter describes how to set the HDMI control that links devices connected via HDMI to this unit, how to play back sub contents of Blu-ray discs, and other detailed settings. F Convenient functions vpage 31 F How to make detailed settings vpage 34...

  • Page 34: Convenient Functions

    Convenient functions Playing BD-Video compatible with Bonus View Playback (vpage 11) With a BD disc that is compatible with bonus view (picture-in-picture), Switch the “BD Audio Mode” setting to “Mix Audio Settings (vpage 26) in addition to the main video (primary video) stored on the disc, you Output”.

  • Page 35: Playing Back Bd-Live

    Playing back BD-Live™ For some Blu-ray discs, you can access dedicated sites for BD-Live™ Playing back BD-Live™ contents contents on the Internet from the disc menu. In this case, you can download BD-Live™ contents on the Internet to this unit for playback. Before these steps, connect this unit to the Internet.

  • Page 36: Hdmi Control Functions

    HDMI control functions The HDMI connection not only transmits video and audio but also n Setting procedure convey information between the connected devices. The HDMI control function conveys control signals between the devices to Set the HDMI control function to “On”. enable them to link with each other.

  • Page 37: How To Make Detailed Settings

    How to make detailed settings Menu map By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences. SETUP Pressing displays the SETUP menu. From this menu, you can move to various setting screens. General Settings Setting items Detailed items...

  • Page 38: Video Settings

    Menu map Video Settings System Information Setting items Detailed items Description Page Setting items Description Page Aspect Ratio Set the screen type and display mode of the TV. Displays the MAC address. Address Wallpaper Setting for displaying the background when playback is stopped.

  • Page 39: Setup Menu Operation

    SETUP menu operation SETUP Press Examples of SETUP menu screen displays The SETUP menu is displayed on the TV screen. Typical examples are described below. • The SETUP menu can also be displayed n Menu selection screen (Top menu) from “SETUP” home menu (vpage 13).

  • Page 40: General Settings

    General Settings Settings for system, language, parental lock, network, etc. can be made. System Setting items Setting details Default settings are underlined. HDMI Control On : Links with the device connected to HDMI. Set the following settings. Links the unit and a device Off : Disables the HDMI control function.
  • Page 41 General Settings Language Setting items Setting details Default settings are underlined. Update Notification On : The message for updating is displayed on a television screen. Set the playback audio, subtitles, and menu display languages. Displays a notification Off : The message for updating is not displayed on a television screen. message when there is Setting items Setting details...
  • Page 42 General Settings Parental Controls Network Default settings are underlined. Default settings are underlined. Set the BD and DVD playback settings and password settings. Set Internet connection settings and BD-Live™ settings. Setting items Setting details Setting items Setting details Change Password Change : Changes the password.
  • Page 43 DivX Registration General Settings Displays the DivX ® System registration code. Language Remote ID Switches the unit’s remote control ID code when other marantz BD Parental Con... players are in the vicinity. (Unit side) Network !@#$ Back Space Enter Clear Sets the remote control ID BD 1 : Selects BD 1.

  • Page 44: Settings

    3D video playback. played back as 3D and 2D, respectively. Normally, use this setting. Off : Always outputs 2D video signals. Wallpaper Picture : Displays the marantz logo. Setting for displaying the Black : Sets the background to black. uio p Screen Size –...

  • Page 45: Audio Settings

    Audio Settings System Information Settings for audio output are made. MAC address is displayed. Audio Output MAC Address Default settings are underlined. Set the audio output. Displays the MAC address. Setting items Setting details Items Bitstream : For selecting when the device connected to the unit supports HDMI MAC address Sets the audio format output...

  • Page 46: Informations

    Informations Informations Here, we list various information related to this unit. Please refer to this information as needed. F Part names and functions vpage 44 F Other information vpage 50 F Troubleshooting vpage 60 F Specifications vpage 64 F Index vpage 65...

  • Page 47: Part Names And Functions

    Part names and functions Front panel For buttons not explained here, see the page indicated in parentheses ( ). STANDBY indicator ································································· (11) USB port ····················································································· (7) Power operation button (X ON/STANDBY) ························· (11) Reverse-skip/Forward-skip buttons (8, 9) ·················· (22) is pressed when the power is in standby, the power is Turns power to this unit on and off (standby).

  • Page 48: Display

    Display Playback mode indicators HDMI output indicator Media indicators 1 : During Playback Lights when the HDMI connection is made. BD : BD 3 : During pause and step-by-step playback DVD : DVD-Video, DVD-R/+R/-RW/+RW PROG : During program playback DVD AUDIO : DVD-Audio RAND : During random playback SUPER AUDIO CD : Super Audio CD Does not display when the HDMI cable is not correctly connected...

  • Page 49: Rear Panel

    Rear panel For buttons not explained here, see the page indicated in parentheses ( ). HDMI OUT connector ································································ (6) REMOTE CONTROL connectors NOTE NETWORK connector ································································ (8) REMOTE CONTROL switch (INT./EXT.) ································ (10) Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

  • Page 50: Remote Control Unit

    • The , and buttons are for operations REPEAT button ··········································· (23) for marantz AV receivers. Depending on the specifications of the AV receiver used, operations A-B Repeat button (A-B) ···························· (23) may not be allowed with this remote control. RESOLUTION button ································· (27) DVD A PAGE button ···································...

  • Page 51: Inserting The Batteries

    Remote control unit Inserting the batteries Operating range of the remote control NOTE • Insert the specified batteries in the remote control. Point the remote control at the remote sensor when operating it. • Replace the batteries with new ones if the set does not operate q Remove the rear lid in the w Load the two batteries properly even when the remote control is operated close to the unit.
  • Page 52 Remote control unit Remote control settings (remote control side) Switches when this unit remote control operates another marantz BD players in the vicinity. Set the remote control code simultaneously on the unit, too (vpage 40 “Remote ID”). GRemote control code settingH • The supplied remote control has two remote control code settings:...

  • Page 53: Other Information

    Other information Playable media Discs NOTE • A disc may not be accessible or may play incorrectly due to audio Playable formats/ Playable region Symbols used in this and video interruptions, etc., depending on the recording conditions Playable media modes codes Owner’s Manual when recorded with a BD recorder or DVD recorder.
  • Page 54 Playable media Files Playable media Symbols used • Depending on recording conditions, these files BD-R/-RE Playable files File specification in this Owner’s may not be playable. DVD-R/-RW/ USB memory (Extension) Network Manual • If a file name/title name/artist name/album name +R/+RW device includes characters that are not supported for CD-R/-RW the Media player display, it may not be displayed...

  • Page 55: About Discs And Files

    Playable media USB memory device About Discs and Files n About DivX ® Video-on-Demand (VOD) • When you purchase or rent a DivX ® file through the official site of • The unit supports the FAT 16 and FAT 32 file system. It does not DivX ®...
  • Page 56 Playable media n Super Audio CD n DVD-Audio n File Files, such as MP3/WMA/AAC/LPCM/JPEG/DivX ® etc., recorded DVD-Audio discs are divided into several large sections (groups) GType of Super Audio CDH and small sections (tracks). These sections are all allotted numbers, on BD-R/-RE, DVD-R/-RW/+R/+RW, CD-R/-RW and USB memory called group numbers and track numbers.

  • Page 57: Cautions On Using Media

    Cautions on using media Inserting a disc How to handle media Cleaning discs • Set the disc in the tray label side up. • Do not get fingerprints, oil or dirt on discs. • If there are fingerprints or dirt on a disc, wipe them off before using • Make sure the disc tray is fully open when inserting the disc.

  • Page 58: Copyright Protection System (Hdcp)

    Cautions on using media Copyright protection system (HDCP) Cinavia notice In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both the player and TV or the AV • This product uses Cinavia technology to limit the use of unauthorized receiver need to support the copyright protection system known as copies of some commercially-produced film and videos and their HDCP (High-bandwidth Digital Content Protection System).

  • Page 59: About Digital Signal Audio Output

    About digital signal audio output The unit converts the format of digital audio signals recorded on media and output them. • Audio signal input may not be supported depending on the HDMI compatible monitor (projector, etc.) being used. When the unit is connected to this kind of device, audio signals are not output from the HDMI terminal. Analog Audio Output Terminal HDMI Output Terminal z1 z2 z3 Media/Files...

  • Page 60: Trademark Information

    Trademark information This product uses the following technologies: YouTube and the YouTube logo are the registered DivX ® , DivX Certified ® , DivX Plus ® HD and “Blu-ray Disc™”, and the logos are trademarks of trademarks of Google Inc. associated logos trademarks...

  • Page 61: Explanation Of Terms

    Explanation of Terms Downmix Interactive audio This function converts the number of channels of This is audio recorded in the titles of BD-Video, AAC (Advanced Audio Coding) Deep Color surround audio to less channels for playback. such as clicking sounds made during operations. This is an internationally standardized audio data This technology allows expression of more colors IP Address...
  • Page 62 Explanation of Terms Pop up menu Secondary subtitle This type of menu is recorded with BD software. This subtitle, such as the director’s comments and While playing back a BD, this menu can be displayed other data recorded in the bonus view of BD-Video. on the front of the screen and can be operated.

  • Page 63: Troubleshooting

    Troubleshooting If a problem occurs, firstly check the following: GVideoH 1. Are the connections correct? Symptom Cause/Solution Page 2. Is the set being operated as described in the owner’s manual? No picture appears. • Switch the TV’s input setting to the external input connected to –...
  • Page 64 GAudioH GHDMIH Symptom Cause/Solution Page Symptom Cause/Solution Page HD audio is not • Set “BD Audio Mode” to “HD Audio Output”. Video and audio are • Check the connection of the HDMI cable. output. not output via the • Is the “HDMI” indicator on the display of the unit lit? HDMI connection.
  • Page 65 GUSB memory deviceH GDiscH Symptom Cause/Solution Page Symptom Cause/Solution Page USB memory device • The format of the USB memory device does not match this unit or A playable disc is not • The pickup lens may be dirty. Before requesting servicing, try –...
  • Page 66 GBD-Live™H Symptom Cause/Solution Page Symptom Cause/Solution Page Can not play DRM- • The server does not support DRM. Connected to a server that – BD-Live™ function • Network connection is not established. Perform the connection protected files. does support DRM. does not work. test.

  • Page 67: Specifications

    GRemote control unitH Specifications Symptom Cause/Solution Page The set cannot be • Aim the remote control directly at the infrared sensor window on operated with the the front of the unit. n Performance remote control. • Operate within a distance of 23 ft / 7 m from the remote control Signal format : NTSC, PAL sensor.
  • Page 68 Index Connection 2-channel audio amplifier ··································· 7 Gamma Correction ············································· 28 Operation AV receiver ························································ 6 v Numerics General Settings ················································· 37 A-B repeat ························································ 23 HDMI ································································· 6 Group ································································· 53 Angle································································ 25 2ch Linear PCM ·················································· 56 Home network (LAN) ········································· 8 Changing the subtitle ·······································...
  • Page 69 Rating ································································· 59 x.v.Color ····························································· 59 Rear panel ·························································· 46 Region code ················································· 50, 59 Remote control unit ··········································· 47 YouTube ····························································· 19 Inserting the batteries······································ 48 Remote control settings ·································· 49 Repeat mode ······················································ 23 Reset ·································································· 37 Resume function ················································ 21 Sampling frequency ·····································...
  • Page 70 Dimensions Unit : in. (mm) 5 5/16 (135.0) 17 21/64 (440.0) 2 13/64 (56.0) 1 31/32 1 31/32 (50.0) 13 25/64 (340.0) (50.0) Weight : 11 lbs 0.37 oz (5.0 kg)
  • Page 71 License This section describes software license used for UD5007. To maintain the correct content, the original These requirements apply to the modified work as 4. You may not copy, modify, sublicense, or distribute a whole. If identifiable sections of that work are not the Program except as expressly provided under this (English) is used.
  • Page 72 END OF TERMS AND CONDITIONS 8. If the distribution and/or use of the Program is restricted Exhibit-B Finally, software patents pose a constant threat to the in certain countries either by patents or by copyrighted How to Apply These Terms to Your New Programs existence of any free program.
  • Page 73 GNU LESSER GENERAL PUBLIC LICENSE in the event an application does not supply such function 5. A program that contains no derivative of any portion b) Use a suitable shared library mechanism for linking TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION or table, the facility still operates, and performs whatever of the Library, but is designed to work with the Library with the Library.
  • Page 74 9. You are not required to accept this License, since 13. The Free Software Foundation may publish revised <one line to give the library’s name and a brief idea of Exhibit-D you have not signed it. However, nothing else grants and/or new versions of the Lesser General Public what it does.>...
  • Page 75 We specifically permit and encourage the inclusion of this 2. Redistribution Exhibit-F ============================================== software, with or without modifications, in commercial This product includes cryptographic software written by LICENSE ISSUES products. This license grants a worldwide, royalty-free, perpetual Eric Young (eay@cryptsoft.com). This product includes We disclaim all warranties covering The FreeType Project and irrevocable right and license to use, execute, software written by Tim Hudson (tjh@cryptsoft.com).
  • Page 76 THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS This software may be referred to only as “the Independent THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT above copyright notice, this list of conditions and the IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, JPEG Group’s software”.
  • Page 77 GPL/ LGPL software that is used in the product. marantz provides the source code based on the GPL and LPGL licenses at the actual cost upon your request to our customer service center. However, note that we make no guarantees concerning the source code.
  • Page 78 D&M Holdings Inc. 3520 10142 00AM...
