Summary of Contents for First Alert INDOOR / OUTDOOR WIRELESS D575

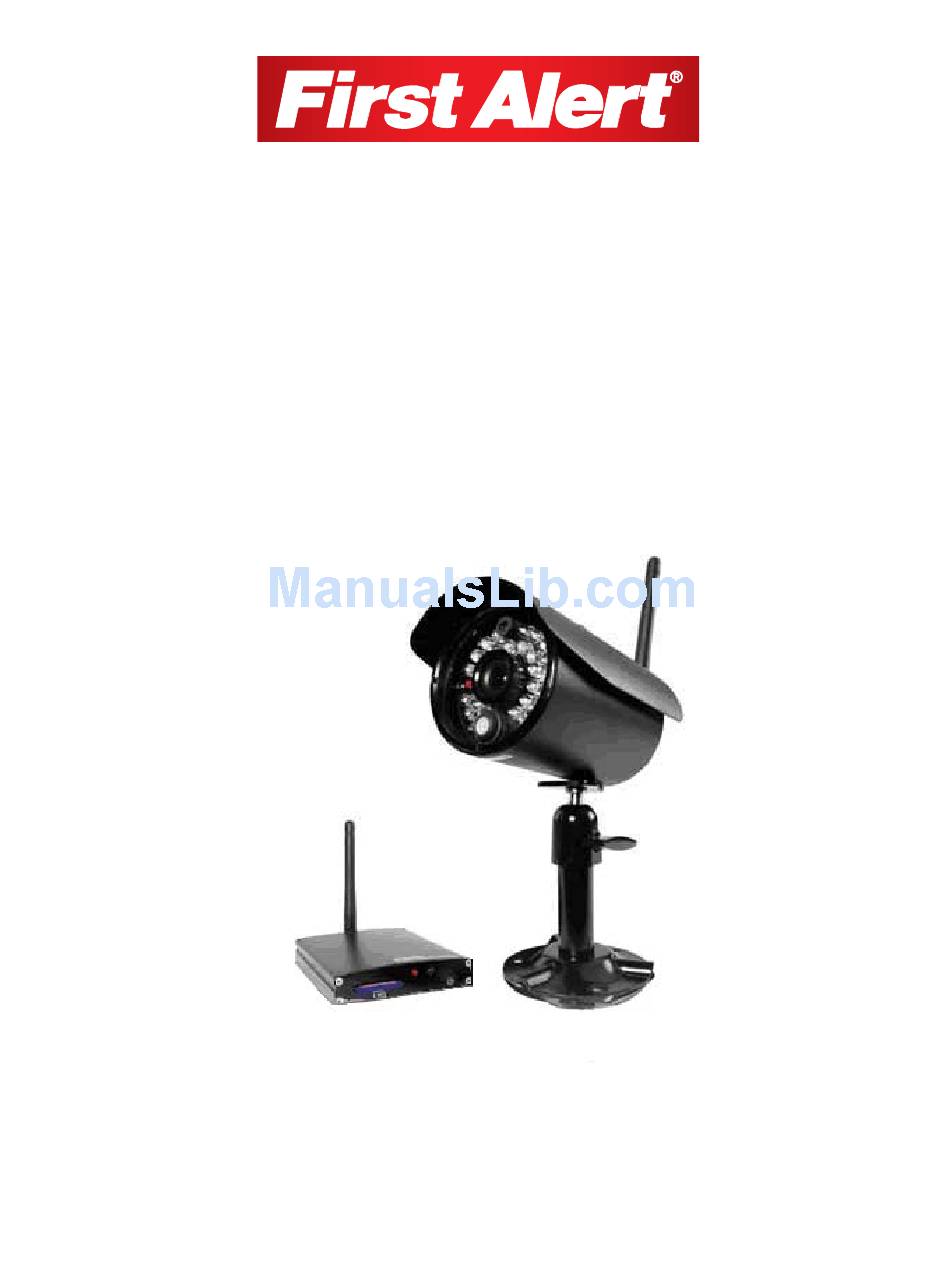

- Page 1 Indoor/Outdoor Digital Wireless Camera with Receiver Model D575 USER'S MANUAL...
- Page 2 ©2010 Lehigh Consumer Products, LLC All rights reserved. Distributed by Lehigh Consumer Products, LLC, Macungie, PA 18062. Due to continuing product development, the product inside the packaging may look slightly different than the one on the package. Lehigh Consumer Products, LLC is a subsidiary of Jarden Corporation (NYSE: JAH). To obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday, 7:30am-5:00pm, Central Standard Time.
-
Page 3: Table Of Contents
Safety ... 1 Safety Precautions ... 1 FCC Compliance ... 1 Disposal ... 2 Getting to Know Your D575 Camera System ... 3 Check Package Contents... 3 Digital Wireless Camera ... 4 Digital Wireless Receiver ... 4 Remote Control... 5 Display Screen Icons ... - Page 4 Table of Contents Model D575 User's Manual Troubleshooting ... 18 Technical Information ... 20 Warranty... 21 Product Limited Warranty... 21 Warranty Exclusions ... 21 Obtaining Service ... 22...
-
Page 5: Safety
AFETY RECAUTIONS Do not drop, puncture, or disassemble the camera. Never tug on the power adapter. Use the plug to remove it from the wall. Use the device with care. Avoid pressing hard on the camera or receiver body. ... -
Page 6: Disposal
Safety Model D575 User's Manual ISPOSAL These symbols indicate that it is prohibited to dispose of these batteries in the household waste. You can take spent batteries that can no longer be charged to the designated collection points in your community. -
Page 7: Getting To Know Your D575 Camera System
Congratulations on purchasing your First Alert Security Camera product. First Alert has been helping families and businesses stay safe for over 50 years. By having a First Alert Security Camera, you’re taking the first step in protecting your home or business from damage or theft. -
Page 8: Digital Wireless Camera
IGITAL IRELESS AMERA 1 Antenna 2 EDS 3 Power LED 4 Camera Lens IGITAL IRELESS ECEIVER 1 Antenna 2 DC IN 3 AV OUT Getting to Know Your D575 Camera System 5 Link LED 9 Pairing Key 6 PIR 10 Power Jack 7 IR LED 11 Microphone 8 Camera Stand... -
Page 9: Remote Control
Getting to Know Your D575 Camera System Model D575 User's Manual EMOTE ONTROL Press to Start/Stop manual recording Enter Event List directly; press OK to select video file; use Play/Pause function when viewing video files Press OK to delete video files you selected In view mode, up to four display images are available cameras at one time Press MENU button to exit Play/Pause Mode... -
Page 10: Display Screen Icons
ISPLAY CREEN CONS Signal Indicator Channel Indicator Motion Detection and Recording Indicator (ON) Motion Detection Alarm Indicator (ON) Recording Indicator (blinking) No SD Card SD Card Full FULL SD Card Error SD Card Locked SD Card Overwrite (ON) SD Card Indicator SD Card Storage Room Indicator 32.2GB Camera Brightness... -
Page 11: Setting Up Your D575 Camera System
ENERAL RECAUTIONS Use only the power supply provided with the system. Unplug the power supply when the system is not in use for extended periods. Do not place any of the equipment near a radiator, vent, or other place where it ... -
Page 12: Installing The Receiver
Adjust camera to the proper view angle. Make sure the lens is upright relative to your subject. Tighten the thumb bolt. Screw the antenna into place on the rear of the camera. Adjust the antenna to an upright position. NSTALLING THE ECEIVER Connect the power cable to the DC IN of the receiver. -
Page 13: Operating Menus
This chapter provides information about the menu screens. The screens are used to control the various functions of the DVR system. The user selects options from a series of menus and executes the actions by using the keypad on the remote control. PERATION The Main Menu display when the system is powered up. -
Page 14: Camera Brightness
AMERA RIGHTNESS 1. Use to select a camera. 2. Press to display Camera Brightness bar. 3. Use to adjust Brightness. AIRING 1. Use to select a camera. 2. Press to start system countdown from 60 seconds. 3. Within 60-second countdown, press LINK on the camera cable. Image will display when pairing is complete. -
Page 15: Resolution
Operating Menus Model D575 User's Manual ESOLUTION 1. Use to select Resolution between 640x480 and 320x240. 2. Press to confirm. Resolution will affect recording file size. System can support longer recording time for QVGA resolution and low image quality. ECORDER ETUP Access the Recorder Setup menu from the Main Menu. -
Page 16: Motion Detection Record Period
OTION ETECTION ECORD 1. Use to select a different Motion Detection Record Period: OFF, 5 sec, 10 sec, or 15 sec. (Default setting is 5 sec.) 2. Press to confirm. Motion detection will be disabled for 5 seconds after motion detection recording or alarm stops. -
Page 17: Event List
Operating Menus Model D575 User's Manual VENT Access the Event List menu from the Main Menu. Play Mode 1. Press to enter Record Folder. 2. Continue to press 3. Press to fast forward (2x, 4x, 8x, 16x); press press MENU to Stop/Exit. 4. -
Page 18: System Setup
YSTEM ETUP Access the System Setup menu from the Main Menu. Use this menu to select quad display, scan period, system clock, SD card format, TV format, factory default settings, and system version. ISPLAY 1. Use to select Quad display ON/OFF. 2. -
Page 19: Scan Period
Operating Menus Model D575 User's Manual ERIOD 1. Use to change Scan Time interval: OFF, 5 sec, 10 sec, or 15 sec. 2. Press to confirm the change. This function is available for multi-camera systems. Only camera of current display can be triggered during scan time. Recommended scan time is 5 sec. Scan Time turns off when CH+, CH-, or REC is selected for manual scan or record. -
Page 20: Sd Card Format
SD C ORMAT 1. Press to select SD Card Format screen. Start 2. Press and press Make sure SD card is unlocked. For first time use, it is strongly recommended to format the SD card. TV F ORMAT 1. Use to select TV Format: NTSC or PAL. -
Page 21: Set To Factory Default
Operating Menus Model D575 User's Manual ET TO ACTORY EFAULT 1. Press to select Factory Default screen. Start 2. Press and press YSTEM ERSION ---- Cam1 ---- Cam2 ---- Cam3 ---- Cam4 ---- 1. Press to select System Version screen. For factory use only. -
Page 22: Troubleshooting
Problem Possible Causes System message No power supply to shows “No Signal” camera Channel is not synched up to camera Service out of range Signal is blocked Low or unstable Antenna direction is signal limited Signal has been blocked Strong radio signal nearby Strong electromagnetic interference nearby... - Page 23 Troubleshooting Model D575 User's Manual Audio feedback Camera and receiver are too close Poor image quality Interference The camera has a high sensitivity microphone. Keep the camera at least 10 feet away from the receiver. If the camera must be within 10 feet of the receiver, keep the volume down.
-
Page 24: Technical Information
GENERAL Operating Power Remote Control Included 4 Camera Multi-View Yes (additional cameras sold separately) Wireless Range 750 ft Frequency 2.4 GHz Transmission Channels CAMERA Operating Temperature 14°F - 122°F Indoor/Outdoor Both Dimensions 4.7” x 2.8” x 2.7” (camera & stand) Image Sensor CMOS Viewing Angle... -
Page 25: Warranty
IMITED ARRANTY BRK Brands, Inc., (“BRK”) the maker of First Alert® brand products warrants that for a period of one year from the date of purchase (the “Warranty Period”), this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or replace this product or any component of the product found to be defective during the Warranty Period. -
Page 26: Obtaining Service
Warranty Model D575 User's Manual software via its website. This warranty does not cover any alteration or damage to any other software that may be or may become resident on the users system as a result of installing the software provided. This warranty is in lieu of other warranties, expressed or implied, and BRK neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the sale or service of the product.
