INTRODUCTION:
Congratulations on purchasing this state-of-the-art weather projection station as an example
of innovative design and quality piece of engineering. Providing radio controlled time, date,
calendar, moon phase, indoor and outdoor temperature, indoor and outdoor relative
humidity, this unit will never keep you guessing on current and future weather conditions.
Operation of this product is simple and straightforward. By reading this operating manual, the
user will receive a better understanding of the weather projection station together with the
optimum benefit of all its features.
FEATURES:

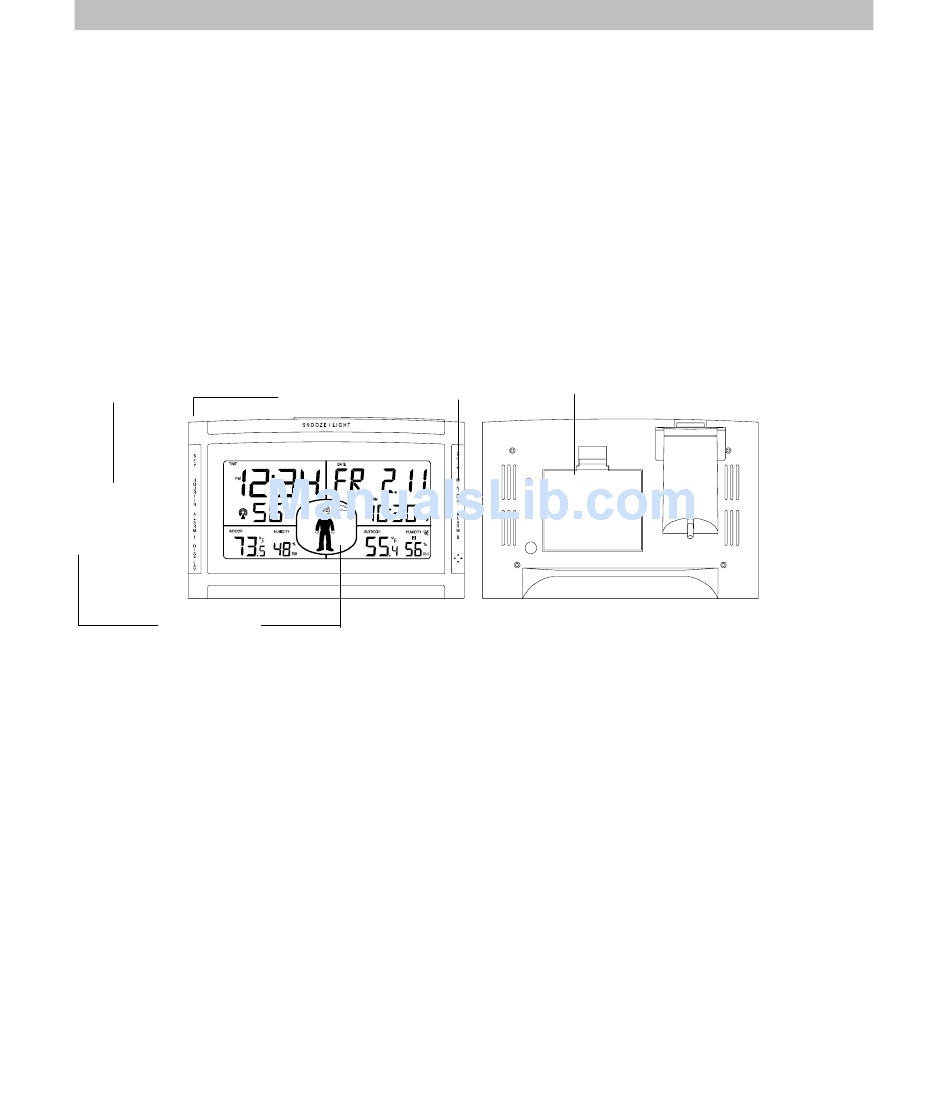

The Weather Projection Station
LCD
Display
Function
keys
•
WWVB Radio-controlled time with manual setting option
•
Time reception ON/OFF (user selectable)
•
12/24-hour time display
•
DST ON/OFF (daylight saving time)
•
Time zone option ±12 hours
•
Month, date, weekday calendar display
•
Alarm setting with snooze function
•
Automatic daylight saving time updating
•
Weather forecasting with 24 combinations of weather icons and "weather boy" images
•
Weather tendency indicator
•
Temperature display with MIN/MAX records and time of reception
•
Indoor and outdoor temperature display in ºF/ºC
•
Humidity data with MIN/MAX records
•
Indoor and outdoor humidity display as RH%
WEATHER PROJECTION STATION
Instruction Manual
compartment
SNOOZE key
Battery
Projector
1
Advertisement
Table of Contents
Related Manuals for La Crosse Technology WS-9520U
Summary of Contents for La Crosse Technology WS-9520U
- Page 1 WEATHER PROJECTION STATION Instruction Manual INTRODUCTION: Congratulations on purchasing this state-of-the-art weather projection station as an example of innovative design and quality piece of engineering. Providing radio controlled time, date, calendar, moon phase, indoor and outdoor temperature, indoor and outdoor relative humidity, this unit will never keep you guessing on current and future weather conditions.
- Page 2 • Can receive up to 3 remote temperature/humidity sensors • Time projection display (hour and minute) • Outdoor temperature projection display (degrees ºF or ºC) • Alternate projection display mode selectable • Projection with adjustable brightness and projection orientation possible •...
-
Page 3: Battery Change
BATTERY CHANGE: It is recommended to replace the batteries in all units on an annual basis to ensure optimum accuracy of these units. Please participate in the preservation of the environment. Return used batteries to an authorized depot. SETTING UP The weather projection station can be either batteries-operated or powered by the provided AC adapter. - Page 4 TO USE THE WEATHER PROJECTION STATION POWER ADAPTER The unit comes with an AC adapter for using the projector for an extended period of time, such as throughout the night. To connect the AC adapter: Important! Make sure that your household voltage is 120V! Otherwise it can result in damaging your weather projection station.
-
Page 5: About Wwvb Radio Controlled Time
Note: If the weather projection station is powered through the AC adapter, the projection will be constantly ON. If the weather projection station is battery operated the projection will turn ON only when the SNOOZE key is pressed. Once the SNOOZE key is released, the projection and E.L. backlight will stay on for approximately 10 seconds. -
Page 6: Function Keys
The WWVB radio station receives the time data from the NIST Atomic clock in Boulder, Colorado. A team of atomic physicists is continually measuring every second, of every day, to an accuracy of ten billionths of a second per day. These physicists have created an international standard, measuring a second as 9,192,631,770 vibrations of a Cesium-133 atom in a vacuum. -
Page 7: Snooze Key
Key (DIRECTION key) • Project the image direction (can display 4 different orientations) • Back-light on DISPLAY key • Toggle between the time and outdoor temperature or automatic alternates time/outdoor temperature every 5 seconds display mode for projection • Back-light on ALARM 1 key •... - Page 8 LCD SCREEN The LCD screen is split into 5 sections displaying the information for time, date, weather forecast, indoor data, and outdoor data. WWVB Signal Time Display Calendar display Reception Icon Alarm time Alarm icon Outdoor data signal reception indicator Outdoor Indoor Outdoor...
-
Page 9: Dst (Daylight Saving Time) Setting
The time zone default of the weather projection station is EST –5. To set a different time zone: The current time zone value starts flashing. Use the CH/+ key to set the time zone. The range runs from 0 to -12 and then runs from +12 back to 0 in consecutive 1-hour intervals. -
Page 10: Calendar Setting
The hour digit will start flashing. Use the CH/+ key to set the hour. Press again the SET key to set the minutes. The minute digits start flashing. Use the CH/+ key to set the minutes. Confirm with the SET key and enter the Calendar setting. Note: The unit will still try to receive the signal between 12:00 to 6:00 a.m. -
Page 11: Alarm Setting
The temperature display can be selected to show temperature data in °F or °C (Default °F). Use the CH/+ key to toggle between “°F” or “°C”. Confirm with the SET key and enter the Weather forecasting icon sensitivity setting. WEATHER FORECASTING ICON SENSITIVITY SETTING: Digit flashing Icons... -
Page 12: Weather Forecast Icons
To stop the alarm, press any key (except the DISPL and keys during alarm ringing. Or press and hold the SNOOZE key for 2 seconds (a beep sound can be heard). WEATHER FORECAST AND WEATHER TENDENCY INDICATOR: Weather forecast icon Weather tendency indicator Weather Boy icon WEATHER FORECAST ICONS... - Page 13 WEATHER TENDENCY INDICATOR Working together with the weather icons is the weather tendency indicators (located on the right side of the weather icons). When the indicator points upwards, it means that the air-pressure is increasing and the weather is expected to improve, but when indicator points downwards, the air-pressure is dropping and the weather is expected to become worse.
-
Page 14: To Exit The Manual Setting Mode
Outdoor reception indicator Transmitter identification number (only if there is more Outdoor than one transmitter) temperature Outdoor relative in °F/ °C humidity in RH% TOGGLING AND RESETTING THE OUTDOOR RECORDINGS: To toggle between the outdoor current, MIN/MAX temperature and humidity data and the times (for temperature data only) that were recorded press the MIN/OUT key: Once to show the MAX outdoor temperature and humidity data with the recorded time and date. -
Page 15: Care And Maintenance
Note: When the 433 MHz-signal is received correctly, do not re-open the battery cover of either the remote temperature/humidity sensor or weather projection station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then reset all units (see “Setting up” above) otherwise transmission problems may occur. -
Page 16: Liability Disclaimer
Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 17 Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier);...
- Page 18 FCC ID: OMO-01RX (receiver), OMO-01TX (transmitter) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
