Summary of Contents for LA Audio DA82

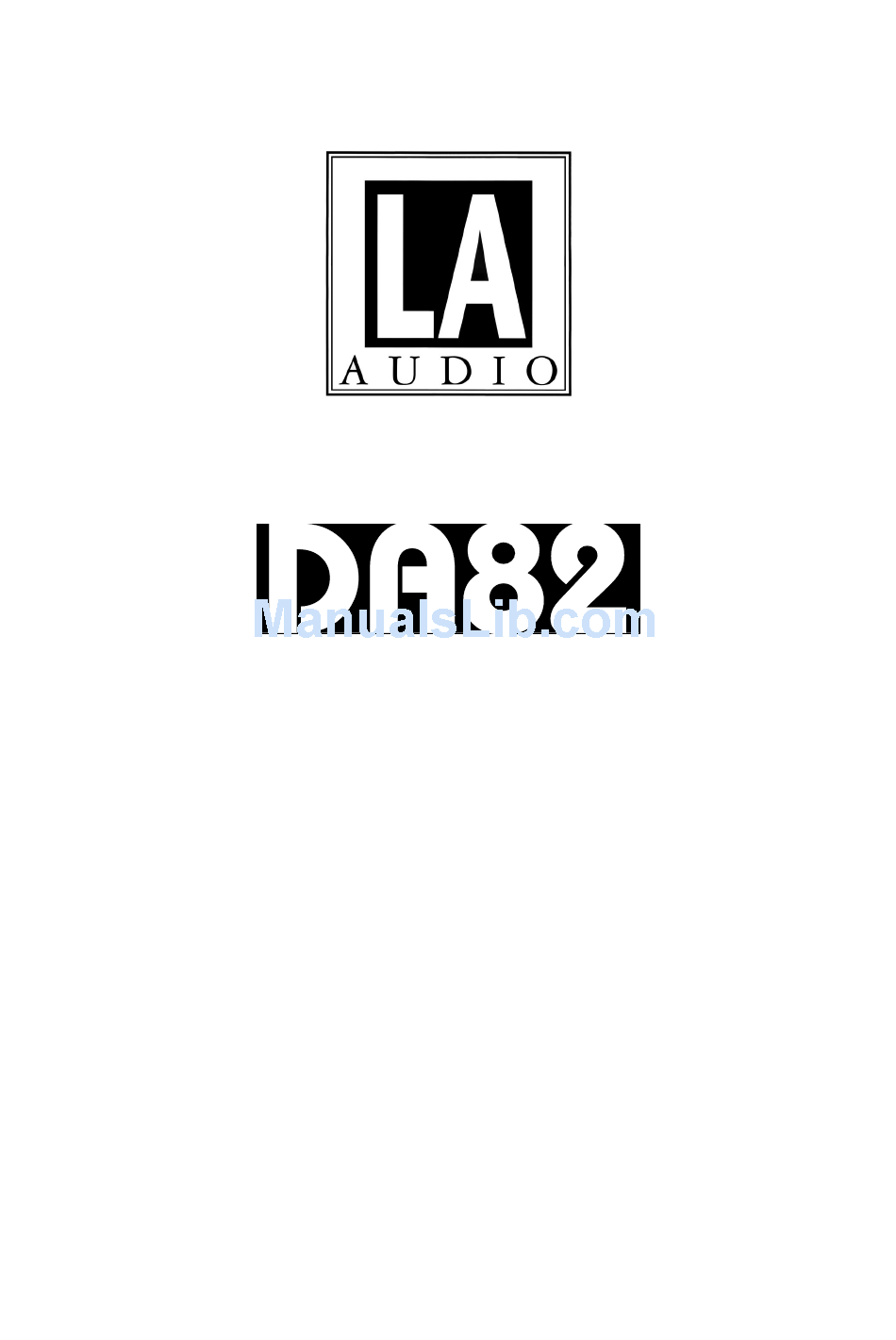

  • Page 1 Distribution Unit User Guide...
  • Page 2 CONTENTS Introduction Page 2 Technical Specifications Page 3 Installation Inspection and un-packing Page 4 Operating environment Page 4 Power requirements & Line voltage switch Page 4 Description of controls Page 5 Warranty Page 6 Page 2...
  • Page 3 The DA82 is ideal for O.B. vans, sound reinforcment systems, theatres and any application where its ease of installation and setup will be greatly appreciated. The DA82 is built in accordance with EMC and safety regulations encompassed by the CE marking, guaranteeing trouble free integration into systems.
  • Page 4 2.0 TECHNICAL SPECIFICATIONS ELECTRICAL Input Impedance 20KΩ Balanced Maximum Input Level +20dBu Input Gain Adjustable -6 to +6dB Output impedance 75Ω Balanced Recommended Output Load 600Ω to Infinity Maximum Output Level +20dBu Output Gain Adjustable -12 to +6dB Frequency Response 20Hz to 20KHz +0, -1dB Total Harmonic Distortion...
  • Page 5 PLEASE READ THIS SECTION BEFORE USING THE DA82 3.1 INSPECTION AND UNPACKING The DA82 has been carefully packed at our factory in a carton designed to withstand handling in transit. Should the unit appear to have been damaged in transit, do not discard any of the packing material and notify the carrier immediately as it is he who is responsible.
  • Page 6 4.0 DESCRIPTION OF CONTROLS 1. Cal/Uncal switch. Switches gain control between pot and trimmer adjustment. 2. Cal trimmer adjustment for input gain, ranging from –6 to +6dB. Requires a flat-bladed screwdriver. 3. Uncal potentiometer adjustment for input gain, ranging from –6 to +6 dB.
  • Page 7 To receive service under this warranty it is necessary to return the unit to an LA Audio authorised service centre or to the factory with a dated receipt as proof of purchase. After repair the unit will be returned to you free of charge.
