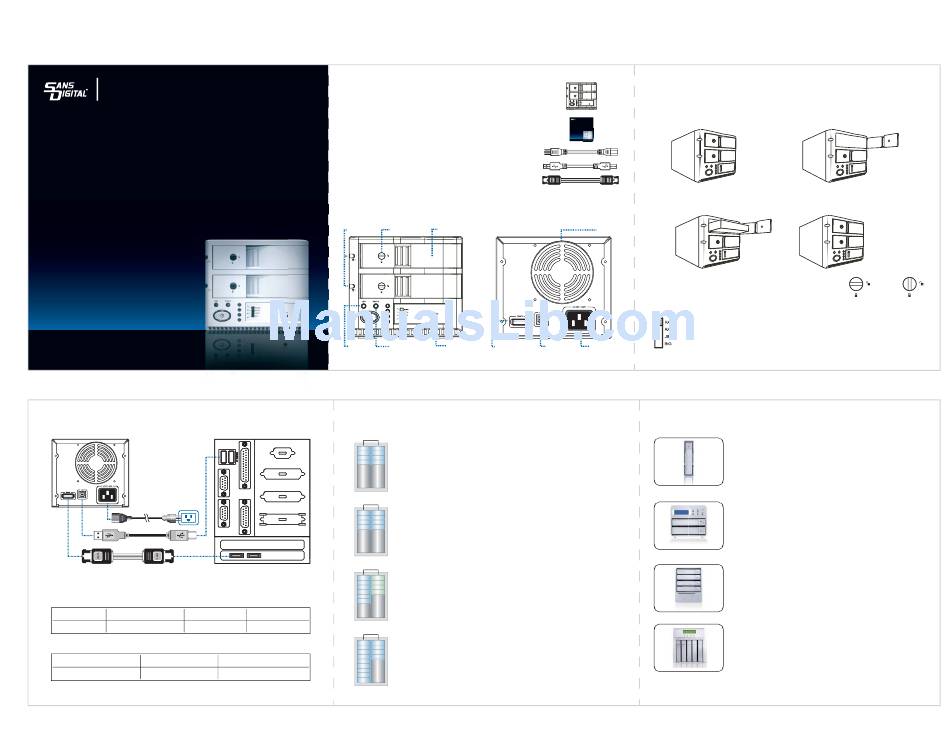

Sans Digital TOWERSTOR TS2UT Quick Installation Manual

Cover
TOWERSTOR
QUICK INSTALLATION GUIDE v1.0
Hardware Connections
LED Indications
The front plate LED lights in a variation of blue, red, or purple depending on the unit's status.
BLUE FLASHING RED & BLUE LED OFF
HDD INSERTED HDD FAILED NO HARD DRIVE
RAID 1 LED Indications
FLASHING RED & BLUE PURPLE
HDD FAILED REBUILD SOURCE
Page 3
TS2UT
Package Contents
MS2C1/MS2U1/MS2T1.....................................................................
Manual ............................................................................................
Power Cord .....................................................................................
USB 2.0 Cable .................................................................................
eSATA Cable ..................................................................................
(Please contact us in case of missing or damaged items)
Hardware Diagrams
FRONT
HDD LED HDD LOCK
USB LED eSATA LED
RAID Diagrams
COMPUTER REAR PANEL
RAID 0
A1 A2 RAID 0 (Striping)
A3 A4
A RAID 0 (also known as a stripe set or striped volume) splits data evenly across two or
A5 A6
A7 A8 more disks (striped) with no information for redundancy. It is important to know that
once one of the hard drive fails, all of the data will be lost. RAID 0 is normally used to
increase performance, although it can also be used as a way to create a small
number of large virtual disks out of a large number of small physical ones.
DISK 0 DISK 1
RAID 1
RAID 1 (Mirroring)
A1 A1
A RAID 1 creates an exact copy (or mirror) of a set of data on two or more disks. This is
A2 A2
A3 A3
useful when read performance or reliability are more important than data storage
A4 A4
capacity. Such an array can only be as big as the smallest member disk. A classic
RAID 1 mirrored pair contains two disks (see diagram), which increases reliability
geometrically over a single disk. Since each member contains a complete copy of
the data, and can be addressed independently.
eSATA
DISK 0 DISK 1
JBOD
A1 B1 JBOD (Just a Bunch of Disks)
A2 B2
JBOD is not one of the numbered RAID levels. Unlike a concatenated array, the disks
A3 B3
of JBOD appear as individual hard disks, instead of one single large disk. JBOD
A4 B4
A5
accurately describes the underlying physical structure that all RAID structures rely
A6
upon. When a hardware RAID controller is used, it normally defaults to JBOD
configuration for attached disks.
PURPLE
DISK 0 DISK 1
ACCESSING DATA
BIG
BIG / Spanning (Concatenated Array)
A1 A10 Spanning or concatenated array is also not RAID, although it is an array. It is a group
A2 A11
of disks connected together, end-to-end, for the purpose of creating a larger logical
A3 A12
A4 A13 disk. Although it is not RAID, it is included here as it is the result of early attempts to
FLASHING RED & BLUE
A5
combine multiple disks into a single logical device. There is no redundancy with a
A6
concatenated array. Any performance improvement over a single disk is achieved
A7
REBUILD TARGET
A8 because the file-system uses multiple disks. This type of array is usually slower than a
A9
RAID-0 array of the same number of disks.
DISK 0 DISK 1
Page 1
1
1
TOWERSTOR TS2UT
1
QUICK INSTALLATION GUIDE v1.0
1
1
BACK
HANDLE FAN
RESET eSATA USB 2.0 POWER
Page 4
Page 2
Installing a Hard Drive
Step 1 Step 2
Turn the faceplate lock to the unlock Pull the faceplate handle to open the hard
position. drive faceplate.
Step 3 Step 4
Insert the hard drive with the connector Push the hard drive inwards while closing the
towards the back. faceplate. Turn the faceplate lock to the lock
position.
Note:
Front panel hard drive handle lock position.
Unlock
Setting the RAID Mode
Power on the unit. Set the unit to the desired RAID mode (RAID 0 / RAID 1 / JBOD / BIG)
by adjusting the RAID switch located on the front panel, and select 'reset'.
Other Sans Digital Products
• 3.5" Hard Drive Enclosure with Removable Tray
• Dual host interface: USB 2.0 and eSATA.
• Supports high performance SATA hard drives.
• Ultra quiet operation.
• Vertical placement stand included.
• Durable aluminum housing.
MS1UT
• Both Mac OS X and Windows supported.
• 2-Bay External RAID Enclosure
• RAID design, supports RAID 0, 1.
• eSATA and USB 2.0 (MS2UT) or Firewire 800 & USB 2.0 (MS2UB).
• Drive interface: 3.5" x 2 SATA I/ SATA II hard drives.
• Hot-swappable removable tray.
• Data auto-rebuilding.
MS2UT/MS2UB
• Hard disk, fan and temperature failure detectors.
• 4-Bay External RAID Enclosure
• Supports JBOD for independent access up to four hard drives.
• 1394b x 2 (MS4B), eSATA x 4 (MS4T), USB 2.0 & Port Multiplier (MS4UM).
• Drive interface: 4 x 3.5" SATA I/ SATA II hard drives.
• RAID supported in MS4B (RAID 0) and MS4UM (software RAID 0, 1,
0+1, 5, 5 + spare in Windows).
MS4B/MS4T/MS4UM
• OS independent with plug and play capability.
• 5-Bay External RAID 6 Enclosure
• Hardware RAID design, supports RAID 0, 1, 0+1, 3, 5, 6, JBOD & hot
spare disk.
• SCSI Ultra 320 (MR5S1)/ USB 2.0, Firewire 800 & eSATA (MR5CT1).
• Drive interface: 5 x 3.5" SATA I / SATA II hard drives.
• Hot-swappable tray design.
MR5S1/MR5CT1
• Hard disk, fan and temperature failure detectors.
T: 1.800.980.1988 F: 1.562.949.3328 E: INFO@SANSDIGITAL.COM
Page 5
Lock
W: WWW.SANSDIGITAL.COM
