Q
I
UICK
NSTALL

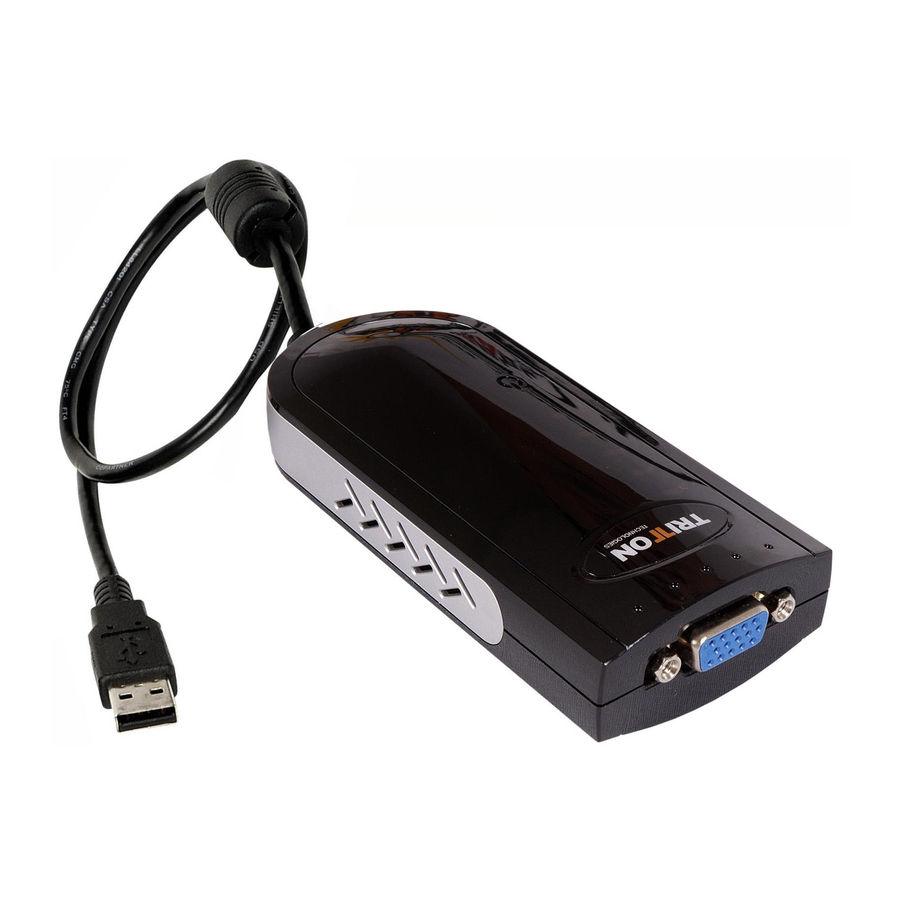

Congratulations on your purchase of the
to work with most Windows-based PC systems. It provides a high-speed VGA port that is
ideal for PC users with small LCD displays as it can support a second display with up to
1600 x 1200 resolution. This easy-to-use solution will provide increased productivity,
expandability and connectivity to both home and office users.
***For the entire manual, please insert the included CD***
F
EATURES
High-Resolution Monitors supported; up to 1600 x 1200
Plug-and-Play USB connectivity
Multi graphics display modes – primary, extended, mirror, rotated
Full USB 2.0 Compliance
Standard VGA (DB15) connector to support secondary CRT/LCD monitor
S
R
YSTEM
EQUIREMENTS
1.0GHz or higher processor;
Intel Pentium 4 / Celeron Family, AMD K6 / Athlon / Duron Family.
256MB memory or higher (512MB memory or higher recommended for optimal
performance)
Available USB 2.0 port
Windows 2000 SP4 / Windows XP SP2 / Windows Vista
P
C
ACKAGE
ONTENTS
S
2 USB
VGA A
EE
TO
CD (User Manual, Driver)
Quick Start Guide
R
C
EGULATORY
FCC / CE / C-tick / VCCI
G
UIDE
DAPTOR
OMPLIANCE
S
2
. The USB 2.0 interface allows the
EE
1
SEE2
Advertisement
Table of Contents
Related Manuals for Tritton SEE2
Summary of Contents for Tritton SEE2
- Page 1 UICK NSTALL UIDE SEE2 Congratulations on your purchase of the . The USB 2.0 interface allows the to work with most Windows-based PC systems. It provides a high-speed VGA port that is ideal for PC users with small LCD displays as it can support a second display with up to 1600 x 1200 resolution.
- Page 2 3. Make sure to restart the computer. Installing the SEE2 Hardware After installing the SEE2 software, you are ready to connect the SEE2 to your computer. 1. Plug the cable from the monitor, into the VGA port on the SEE2 SEE2 2.
- Page 3 - The resolution supports from 800x600 x 16 / 32 bit and up-to 1600 x 1200 16 bit. - The resolution can be modified via the system tray or Display Properties.
- Page 4 Color Bits Resolutions Supported 16 Bits 32 Bits 1600 x 1200 1680 x 1050 1440 x 900 1280 x 1024 1280 x 960 1280 x 800 1280 x 768 1152 x 864 1024 x 768 800 x 600...
- Page 5 “Primary” Mode When selected, the screen connected to your internal video card will work as the extended desktop. The monitor connected to the SEE2 will act as the primary Windows desktop. advised that display utilities and drivers that ship with some AGP and built-in display adapters may prevent this option from working.
- Page 6 CRT/LCD monitor. Several options such as “90 degrees”, “180 degrees”, 270 degrees” or “0 degress” are available under the Extended or Primary mode “OFF” Mode This option disables the SEE2 video port on the system.
- Page 7 You can also try to reset/refresh/resynchronize your monitor. Q: Direct3D does not work? A: This is a current limitation of the SEE2. Check for driver updates in the future to add support for this. If your application requires this, please use the main display.
- Page 8 - Reset/refresh/resynchronize your monitor. - Make sure that the USB port that you are using is USB 2.0. - Try connecting the SEE2 directly to the computer instead of through a hub. - Try a different USB 2.0 port and/or computer - Check to see that the monitor is connected correctly and the power is ON.
