Tritton TRI-UV150 User Manual

Tritton TRI-UV150 User Manual

Usb 2.0 external video adapter

Advertisement

2.0
TRI-UV150
USB
EXTERNAL VIDEO ADAPTER

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRI-UV150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tritton TRI-UV150

  • Page 1: User Manual

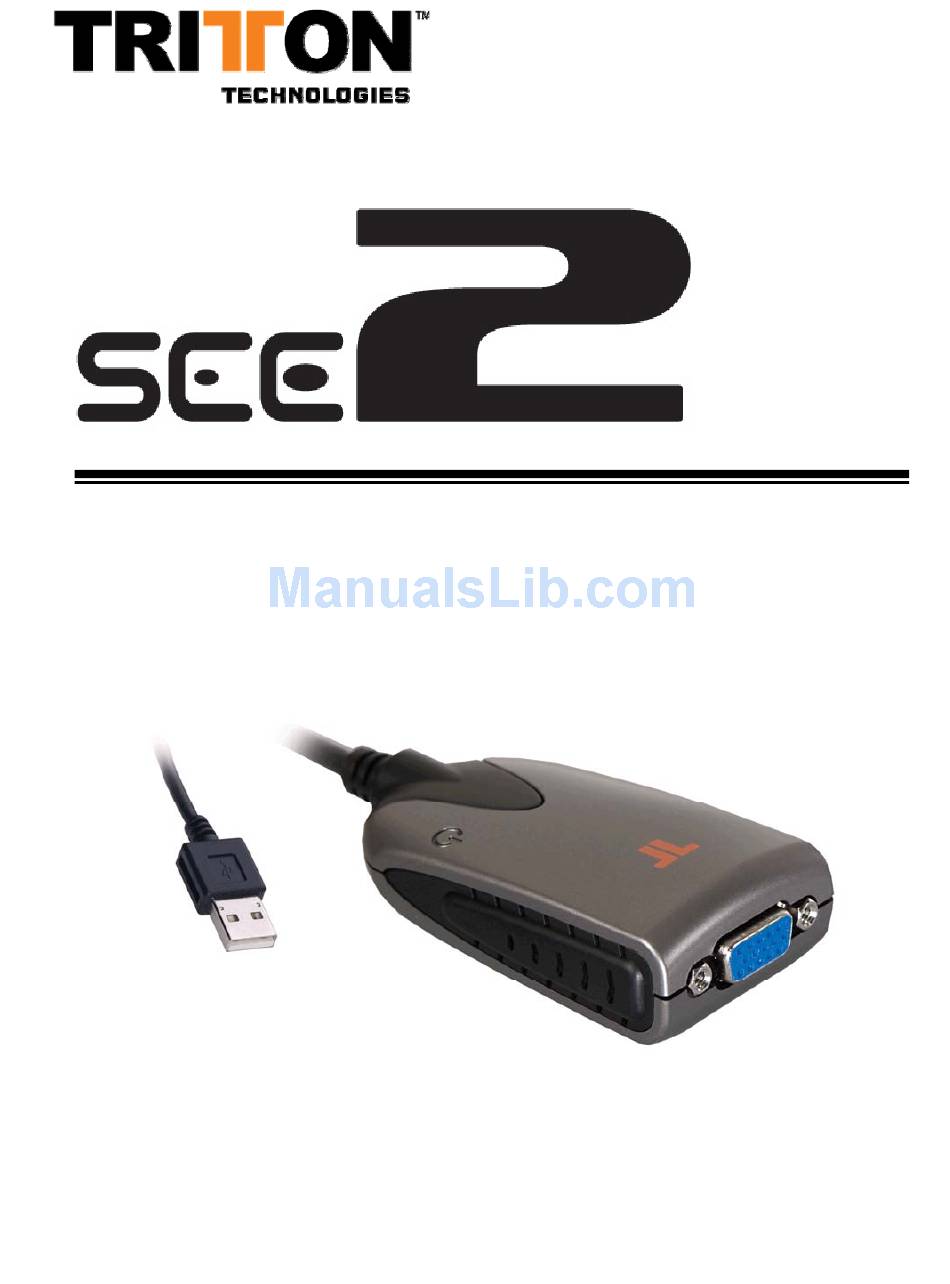

    TRI-UV150 EXTERNAL VIDEO ADAPTER USER MANUAL...
  • Page 2: Table Of Contents

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER ONTENTS ..........................1 NTRODUCTION .........................1 EATURES .....................1 YSTEM EQUIREMENTS ......................1 ACKAGE ONTENTS ....................1 EGULATORY OMPLIANCE :..................2 UPPORTED ISPLAY ESOLUTIONS 2000/XP ................3 EVICE NSTALLATION INDOWS ...................3 OFTWARE NSTALLATION 2000/XP H ............5 INDOWS ARDWARE NSTALLATION 2000/XP ...........6 ERIFYING EVICE RIVER...
  • Page 3: Introduction

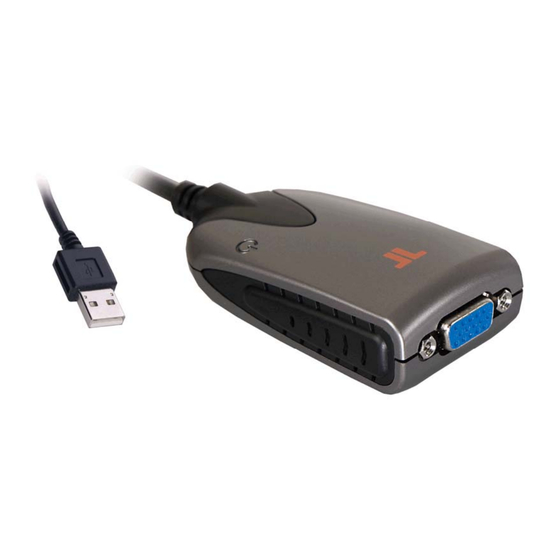

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER NTRODUCTION Thank you for purchasing the SEE2 UV150. The flexibility and prevalence of USB 2.0 technology makes it unnecessary to open your computer. The SEE2 UV150 enables you to connect one or more display devices (CRT/LCD monitor, projector) to your desktop or notebook PC.
  • Page 4: Supported Display Resolutions

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER UPPORTED ISPLAY ESOLUTIONS Color Bits Resolutions Supported 16 Bits 32 Bits 1600 x 1200 1680 x 1050 1400 x 1050 1440 x 900 1600 x 900 1360 x 768 1280 x 1024 1280 x 960 1280 x 800 1280 x 768 1280 x 720...
  • Page 5: Device Installation Windows 2000/Xp

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER 2000/XP EVICE NSTALLATION INDOWS OFTWARE NSTALLATION Installing the device driver enables your computer’s operating system to recognize the SEE2 UV150. Please check what operating system you are using, and ensure you are referring to the appropriate installation procedure before you begin. Please make sure the SEE2 UV150 is unplugged from your PC or Notebook before executing the setup program.
  • Page 6 SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER dialogue boxes will not appear once the driver receives the WHQL certification. Step 4. Click “Finish” to exit the Driver Wizard and reboot your computer.
  • Page 7 SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER 2000/XP H INDOWS ARDWARE NSTALLATION Step 1 Connect the external display device (monitor/projector) to the VGA connector of the SEE2 UV150 and ensure the display device is on. Step 2 Plug the SEE2 UV150 into an available USB 2.0 port of your PC.
  • Page 8: Verifying Device Driver Installation In Windows 2000/Xp

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER ERIFYING EVICE RIVER NSTALLATION IN INDOWS 2000/XP The following procedure allows you to verify the device driver installation. It is optional, but a useful troubleshooting tool. Right click “My Computer” → “Properties” → “Hardware” → “Device Manager”. Double click “Display adapters”, and “Universal Serial Bus controllers”.
  • Page 9: Device Driver U N - Installation In Windows 2000/Xp System

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER 2000/XP EVICE RIVER INSTALLATION IN INDOWS YSTEM The following procedure allows you to un-install the SEE2 UV150 device driver. Step 1 Please make sure the SEE2 UV150 is unplugged from your PC or Notebook before executing the device driver un-installation program.
  • Page 10: Device Installation On Windows Vista System

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER EVICE NSTALLATION ON INDOWS ISTA YSTEM OFTWARE NSTALLATION Installing the device driver enables your computer’s operating system to recognize the SEE2 UV150. Please check what operating system you are using, and ensure you are referring to the appropriate installation procedure before you begin.
  • Page 11 SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER Step 3 License Agreement; review it and check “I accept the terms of the license agreement.” Click “Next” to accept the License Agreement Step 4 A Windows Security warning dialogue box will display under Windows Vista, but it will not affect the device driver installation and usage the device.
  • Page 12: Hardware Installation On Windows Vista System

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER Step. 6 Driver Installation Wizard, click “Finish” to continue and restart the computer.
  • Page 13 SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER Installation of SEE2 UV150 Step 1 Connect the external display device (monitor/projector) to the VGA connector of the SEE2 UV150 and ensure the display device is on. Step 2 Plug the SEE2 UV150 into an available USB 2.0 port of your PC. The driver installation will proceed automatically.
  • Page 14: Erifying Evice River Nstallation In Indows Ista

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER ERIFYING EVICE RIVER NSTALLATION IN INDOWS ISTA The following procedure allows you to verify the device driver installation. It is optional, but a useful troubleshooting tool. Please right click “Computer” → “Properties” → “Device Manager”. Please double click “Display adapters”, and “Universal Serial Bus controllers”.
  • Page 15: Device Driver U N - Installation In Windows Vista

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER EVICE RIVER INSTALLATION IN INDOWS ISTA The following procedure allows you to un-install the SEE2 UV150’s device driver. Please make sure the SEE2 UV150 is unplugged from your PC or Notebook before executing the device driver un-installation program. Step 1.
  • Page 16: Function Description

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER UNCTION ESCRIPTION This section describes the main functions provided by the SEE2 UV150. The SEE2 UV150 can support LCD or CRT displays; The VGA interface can be used on LCD or CRT monitors. Four different modes are available for use: Primary, Extended, Mirror and Portrait Mode (Rotation) by right-clicking the utility icon.
  • Page 17: Primary" Mode

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER Display Settings Shortcut Choosing the “Display Settings…” option from the pop-up menu will open the Windows Display Settings Control Panel. “Primary” Mode The system’s main graphics adapter will automatically switch to act as the secondary graphics adapter and the main screen as the extended desktop.
  • Page 18: Mirror" Mode

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER “Mirror” Mode By setting this mode, the Windows desktop will mirrored/replicated secondary CRT/LCD monitor. The screen resolution setting on the secondary monitor MUST match the primary screen’s resolution. For example, if the primary resolution is 1600 x 1200 x 32bit, the secondary monitor’s resolution will be the same.
  • Page 19 SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADAPTER Multi-Display Control Panel The Multi-Display Control Panel will allow you to setup hotkey shortcuts for moving windows to other displays. Check the “Move Window and Fullscreen” checkbox to maximize the window when it is moved to the selected display.
  • Page 20: Q&A

    SEE2 UV150 USB 2.0 EXTERNAL VIDEO ADPATER Q&A This section describes the common Q&A regarding the installation and operation of the SEE2 UV150. Q: Why can’t I make the SEE2 UV150 the primary display? A: Some video cards ship their product with a utility that prevent other video cards from being set as the primary card.
  • Page 21: Troubleshooting Tips

    • For telephone support, please call us at 800-431-1176 and one of our friendly support technicians will be happy to assist you. Copyright© 2009 Tritton Technologies Inc. All rights reserved. All trade names are registered trademarks of their respective owners. Features and specifications are subject to change without notice.
