Page 1: User Manual
EXTERNAL VIDEO ADAPTER USER MANUAL... -
Page 2: Table Of Contents
USB 2.0 EXTERNAL VIDEO ADAPTER ONTENTS ........................1 NTRODUCTION ..........................1 EATURES .....................1 YSTEM EQUIREMENTS ......................1 ACKAGE ONTENTS ....................1 EGULATORY OMPLIANCE :..................2 UPPORTED ISPLAY ESOLUTIONS 2000/XP................3 EVICE NSTALLATION INDOWS ....................3 OFTWARE NSTALLATION 2000/XP H .............5 INDOWS ARDWARE NSTALLATION SEE2 ..................7 ULTIPLE UNITS For S SEE2 ....................7 INGLE... -
Page 3: Introduction

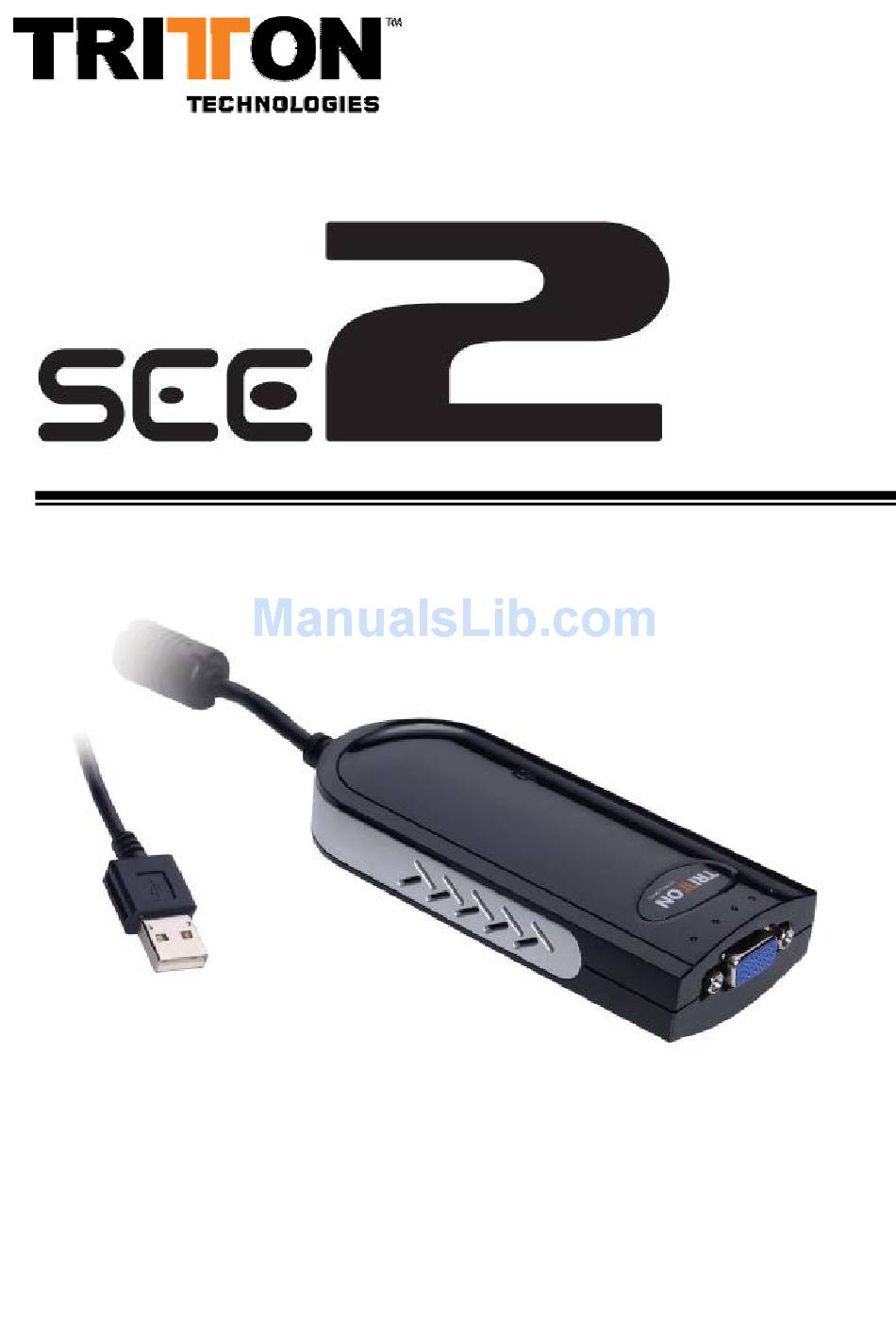

USB 2.0 EXTERNAL VIDEO ADAPTER NTRODUCTION Thank you for purchasing the SEE2. The flexibility and universality of USB 2.0 technology makes it un-necessary to open your computer. The SEE2 enables you to connect one or more display devices (CRT/LCD monitor, projector) to your desktop or notebook PC. -
Page 4: See
USB 2.0 EXTERNAL VIDEO ADAPTER UPPORTED ISPLAY ESOLUTIONS PC Resolutions Supported 16 Bits 32 Bits 1600 x 1200 1680 x 1050 1400 x 1050 1440 x 900 1280 x 1024 1280 x 960 1280 x 800 1280 x 768 1152 x 864 1024 x 768 800 x 600... -
Page 5: Device Installation Windows 2000/Xp
USB 2.0 EXTERNAL VIDEO ADAPTER 2000/XP EVICE NSTALLATION INDOWS Ø S OFTWARE NSTALLATION Installing the device driver enables your computer’s operating system to recognize the SEE2. Please check what operating system you are using, and ensure you are referring to the appropriate installation procedure before you begin. Please make sure the SEE2 is unplugged from your PC or Notebook before executing the setup program. - Page 6 USB 2.0 EXTERNAL VIDEO ADAPTER Step 4. Click “Finish” to exit the Driver Wizard. Step 5 Reboot your computer...
-
Page 7: Indows 2000/Xp Hardware Nstallation
USB 2.0 EXTERNAL VIDEO ADAPTER Ø W 2000/XP H INDOWS ARDWARE NSTALLATION Step 1 Connect the external display device (monitor/projector) to the VGA connector of the SEE2 and ensure the display device is on Step 2 Plug the SEE2 into an available USB 2.0 port of your PC or Notebook. - Page 8 USB 2.0 EXTERNAL VIDEO ADAPTER Step 5 Click “Finish” to close the wizard Step 6 Please select “Continue Anyway” to continue with the device driver installation. It will not affect the device driver installation and the device usage ＊ The Microsoft Certificate warning dialogue boxes will not appear when the driver receives the WHQL certification.
-
Page 9: For Multiple See2 Units
USB 2.0 EXTERNAL VIDEO ADAPTER Step 8A SEE2 ULTIPLE UNITS Please select “No, I will restart my computer later.” and click “Finish” to continue the installation of next SEE2. ※ Repeat the Hardware Installation Procedure Step 1 - 7 and 8 A for all additional SEE2 units, then after all units are installed, move on to 8 B. -
Page 10: Verifying Device Driver Installation In Windows 2000/Xp
USB 2.0 EXTERNAL VIDEO ADAPTER ERIFYING EVICE RIVER NSTALLATION IN INDOWS 2000/XP The following procedure allows you to verify the device driver installation. It is optional, but a useful troubleshooting tool. Right click “My Computer” → “Properties” → “Hardware” → “Device Manager”. Double click “Display adapters”, and “Universal Serial Bus controllers”. - Page 11 USB 2.0 EXTERNAL VIDEO ADAPTER Multiple SEE2 USB 2.0 VGA Adapter The device number is dependant upon how many SEE2 units are installed.
-
Page 12: Device Driver U Ninstallation In Windows 2000/Xp System
USB 2.0 EXTERNAL VIDEO ADAPTER 2000/XP EVICE RIVER INSTALLATION IN INDOWS YSTEM The following procedure allows you to un-install the SEE2 device driver. Step 1 Please make sure the SEE2 is unplugged from your PC or Notebook before executing the device driver un-installation program. Step 2. -
Page 13: Device Installation On Windows Vista System
USB 2.0 EXTERNAL VIDEO ADAPTER EVICE NSTALLATION ON INDOWS ISTA YSTEM Ø S OFTWARE NSTALLATION Installing the device driver enables your computer’s operating system to recognize the SEE2. Please check what operating system you are using, and ensure you are referring to the appropriate installation procedure before you begin. -
Page 14: Window Vista,
USB 2.0 EXTERNAL VIDEO ADAPTER Step 4 It will show the Windows Security warning dialogue box under Windows Vista, it will not affect the device driver installation and usage the device. Please select “Always trust software from “Magic Control Technology Corp.”, then click “Install”... -
Page 15: Ardware Nstallation On Indows Vista Ystem
USB 2.0 EXTERNAL VIDEO ADAPTER Ø H ARDWARE NSTALLATION ON INDOWS ISTA YSTEM u Installation of Multiple SEE2 Units in Windows Vista Step 1 Connect the external display device (monitor/projector) to the VGA connector of the SEE2 and ensure the display device is on. Step 2 Plug the SEE2 into an available USB 2.0 port of your PC. - Page 16 USB 2.0 EXTERNAL VIDEO ADAPTER Please select “Yes, I want to restart my computer now” to complete the installation...
-
Page 17: Erifying Evice River Nstallation In Indows Vista
USB 2.0 EXTERNAL VIDEO ADAPTER ERIFYING EVICE RIVER NSTALLATION IN INDOWS ISTA The following procedure allows you to verify the device driver installation. It is optional, but a useful troubleshooting tool. Please right click “Computer” → “Properties” → “Device Manager”. Please double click “Display adapters”, and “Universal Serial Bus controllers”. - Page 18 USB 2.0 EXTERNAL VIDEO ADAPTER Multiple SEE2 USB 2.0 VGA Adapter u The device number is dependeing on how many SEE2 units are installed.
-
Page 19: Device Driver U N - Installation In Windows Vista
USB 2.0 EXTERNAL VIDEO ADAPTER EVICE RIVER INSTALLATION IN INDOWS ISTA The following procedure allows you to un-install the SEE2’s device driver. Please make sure the SEE2 is unplugged from your PC or Notebook before executing the device driver un-installation program. Step 1. -
Page 20: Unction Escription
USB 2.0 EXTERNAL VIDEO ADAPTER UNCTION ESCRIPTION This section describes the main functions provided by the SEE2. The SEE2 can support LCD or CRT displays; The VGA interface can be used on LCD or CRT monitors. Four different modes are available use: Primary,... -
Page 21: Primary" Mode
USB 2.0 EXTERNAL VIDEO ADAPTER “Primary” Mode The system’s main graphics adapter will automatically switch to act as the secondary graphics adapter and the main screen as the extended desktop. The monitor connected to the SEE2 will now act as the primary Windows desktop. Please be advised that display utilities that shipped with some AGP and built-in display adapters may prevent this option... -
Page 22: Mirror" Mode
USB 2.0 EXTERNAL VIDEO ADAPTER “Mirror” Mode By setting this mode, the Windows desktop will be mirrored/replicated to the secondary CRT/LCD monitor. The screen resolution setting on the secondary monitor MUST match the primary screen’s resolution. For example, if the primary resolution is 1600 x 1200 x 32bit, the secondary monitor’s resolution will be the same. -
Page 23: Q&A
USB 2.0 EXTERNAL VIDEO ADPATER Ø Q&A This section describes the common Q&A regarding the installation and operation of the SEE2. Q: Why can’t I make the SEE2 the primary display? A: Some video cards ship their product with a utility that prevent other video cards from being set as the primary card. -
Page 24: Troubleshooting Tips
Mode and uninstall the driver. Hold the CTRL key until the Windows startup menu appears and select Safe Mode. Copyright© 2008 Tritton Technologies Inc. All rights reserved. All trade names are registered trademarks of their respective owners. Features and specifications are subject to change without notice.
