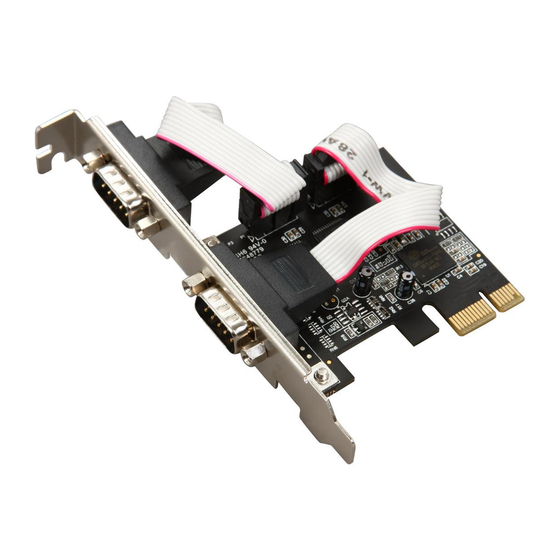

- Page 1 2 Port Serial PCIe Card RC-301EU User Manual...
-
Page 2: Features And Benefits
Connectors：2 x DB9 male serial connectors System Requirements Windows® 2000, XP/2003 32/64 bit, Vista 32/64 bit PCI Express-enabled system with an available PCI Express slot Package Contents 1 x RC-301EU 1 x User Manual 1 x CD Driver 2 x Low-Profile Brackets... -
Page 3: Hardware Installation
2 Port Serial PCIe Card RC-301EU User Manual Hardware Installation General instructions for installing the card are provided below. Since the design of system may vary, refer to your system’s reference manual for further information, if needed. Insert the Card into the PCIe slot of your system. Make sure it is inserted all the way in for a solid connection. - Page 4 2 Port Serial PCIe Card RC-301EU User Manual For Windows ® XP/Server 2003 1. Insert the Driver CD into the CD-ROM drive. 2. At the Found New Hardware Wizard, select Install the software automatically (Recommended), then click Next. 3. Accept the default entry, then click Next.
- Page 5 Express UART Port … installed under Ports (COM & LPT) item, and one PCI Express Multiport Serial Adapter installed under Multi-port serial adapters item. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
