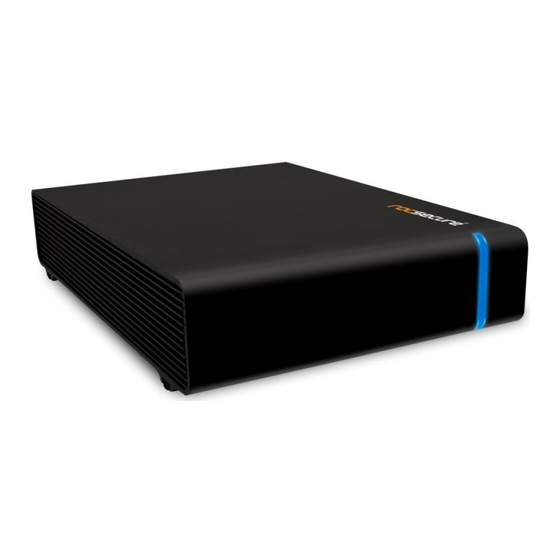

Rocstor COMMANDER 3F series User Manual

(desktop) encryption firewire 800 (400) and usb 3.0 (2.0)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
secure your future
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMMANDER 3F series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rocstor COMMANDER 3F series

Summary of Contents for Rocstor COMMANDER 3F series

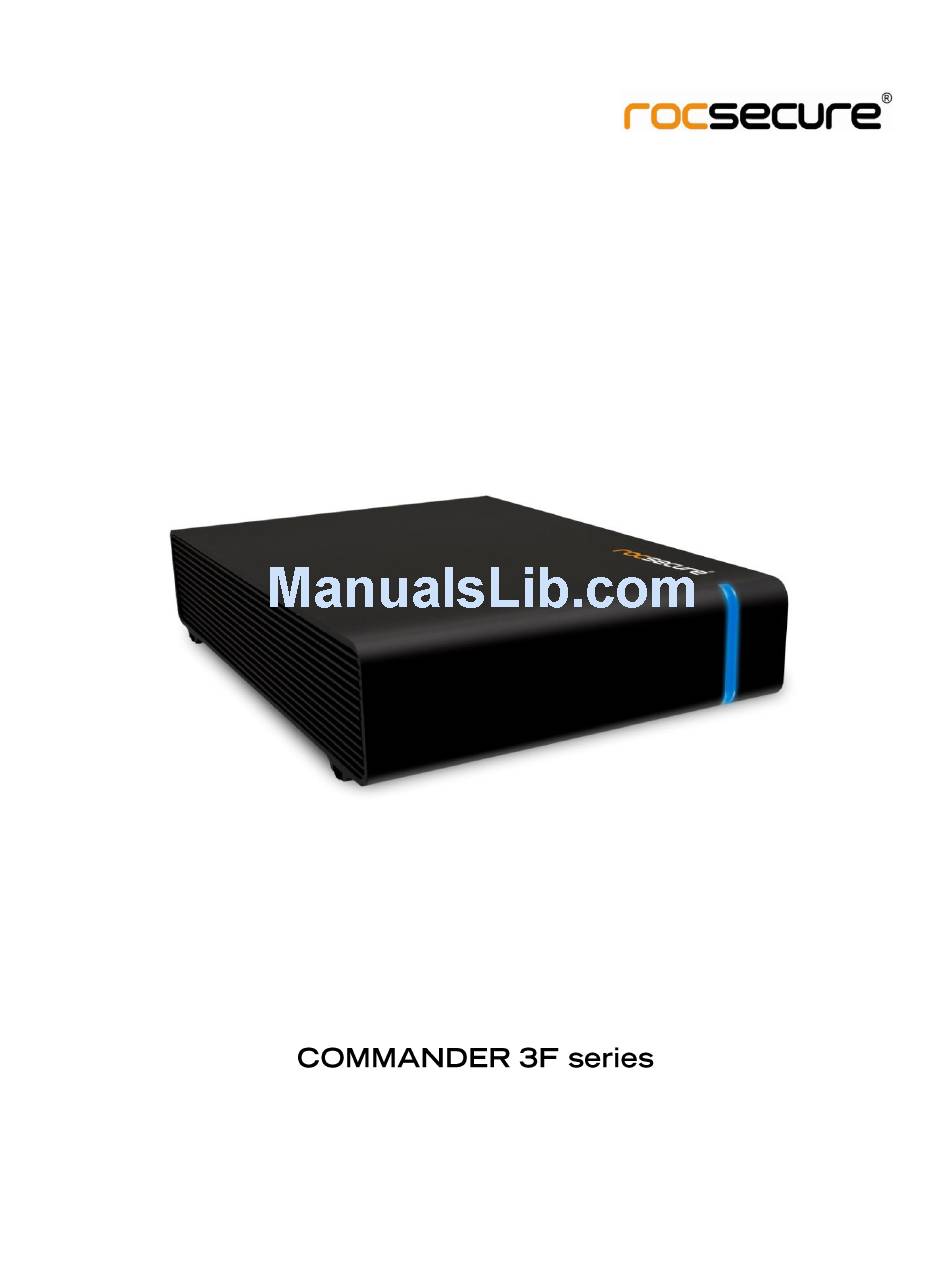

  • Page 1 secure your future User Manual...

  • Page 2: Table Of Contents

    _______________ PARTITIONING & FORMATTING the COMMANDER on WINDOWS 2000, XP, VISTA, 7 Warning _____________________________________________________________ Important Notes Different ways to get to the Control Panel __________________________________ Instructions upon reaching the Control Panel ROCSTOR | COMMANDER 3F user manual Page | 2...
  • Page 3 File Allocation Table (FAT) and FAT 32 __________________________________ HFS Plus or HFS+ LIMITED WARRANTY TECHNICAL SUPPORT ACKNOWLEDGEMENTS Trademarks __________________________________________________________ Copyrights CONTACT INFORMATION Corporate Headquarters ________________________________________________ Technical Support / Return Authorization “RMA” Sales Info ____________________________________________________________ ROCSTOR | COMMANDER 3F user manual Page | 3...

  • Page 4: Important Notices

    Rocstorage, Inc. shall not be held liable for loss of data or the restoration or recovery of data on the device. Please view complete Limited Warranty Information in this manual or on the Rocstor website (www.rocstor.com) for further details. Capacity Disclaimer Actual accessible hard drive capacity will indicate up to 10% lower than stated under different Operating Systems and formatting.
  • Page 5 Do not attempt to disassemble and service the Commander drive during the warranty period. Please read the Safety Notices and Limited Warranty information in this Manual and on the Rocstor website (www.rocstor.com) for further details. ROCSTOR | COMMANDER 3F user manual Page | 5...

  • Page 6: General

    Technology (NIST), and FIPS Level 2 for Cryptographic Module. It is authenticated by digital key token, which is inserted for authentication and removed soon after the device is authenticated and ready for use. Choose Rocsecure drives and store your future. ROCSTOR | COMMANDER 3F user manual Page | 6...

  • Page 7: Partitioning & Formatting The Commander On Windows 2000, Xp, Vista

    ROCSTOR | COMMANDER 3F user manual Page | 7...

  • Page 8: Box Contents

    USB cable (USB 3.0 to USB 3.0 or USB 3.0 to USB 2.0) 9-pin to 9-pin FireWire 800 (1394b) cable AC power cord Three (digital) key tokens Installation user Guide Carrying case ROCSTOR | COMMANDER 3F user manual Page | 8...

  • Page 9: Minimum System Requirements

    (You may connect FireWire 800 to a FireWire 400 port via a special cable {also read page 12}) Standard AC power input connection Digital key token ON/OFF power switch USB 3.0 port x1 ROCSTOR | COMMANDER 3F user manual Page | 9...

  • Page 10: Must Be Read First

    If you lose all of your digital key tokens, you lose your data. Rocstor does not keep a note of any key codes nor will be able to copy any digital Keys. o In the future, you may order your device with as many keys with similar key codes as you prefer (extra digital keys bear additional costs).
  • Page 11 Windows or Mac is the same. (If you seek help in formatting, please proceed with the formatting chapter in this manual; you may start with the Table of Contents on page two (2) of this manual. If you require live assistance, you may call Rocstor tech support toll-free at 888-877-7716, Ext 8883, or email support@Rocstor.com.) Once the drive is formatted with a new digital key, which you received/purchased, it will authenticate the Commander device with that key (set of new keys) only.

  • Page 12: Quick Installation

    Connect one end of the cable to the Commander 3F and the other end to the computer. Please review cable types on the next page: 5. Turn the Commander 3F Hard Drive switch ON. ROCSTOR | COMMANDER 3F user manual Page | 12...
  • Page 13 6. The Hard drive is preformatted for Plug-and-Play operation. After a few seconds a Rocstor HD icon will show on the “My Computer” folder under the Windows OS. Under the Mac OS, the Commander HD will appear on the “Desktop.”...
  • Page 14 USB 2.0: A Hi-Speed (USB 2.0) rate of 480 Mbits/s (60 MB/sec) USB 1.1: A Full Speed rate of 12 Mbits/s (1.5 MB/sec) USB 1.0: A Low Speed rate of 1.5 Mbits/s (187 KB/sec) ROCSTOR | COMMANDER 3F user manual Page | 14...

  • Page 15: Installing Your Drive

    Macintosh operating systems. To begin using your Rocstor drive, simply connect a data cable and power cord. There’s no need to shut down your computer because your Rocstor drive is hot-pluggable. Just plug it in and it’s ready to use.

  • Page 16: Mac

    Desktop and the drive’s activity light is green, you can safely disconnect or turn off the drive. Reformatting Your Drive As mentioned previously, all Rocstor hard drives are formatted as blank FAT32 volumes (otherwise noted on the retail packaging) that are compatible with most modern Windows and Macintosh operating systems.

  • Page 17: How To Daisy-Chain Through Firewire Ports To Your Commander Drive At One Time

    PARTITIONING AND FORMATTING THE COMMANDER DRIVE ON A MAC OS All Rocstor drives are factory formatted with FAT32, unless otherwise stated on the retail box. WARNING: Formatting and Partitioning the Commander Drive will destroy all of its data. To protect your data, back it up before formatting or partitioning this device.

  • Page 18: Instructions For Partitioning And Formatting From Fat32 To Hfs

    INSTRUCTIONS FOR PARTITIONING AND FORMATTING FROM FAT32 to HFS+: Connect the Rocstor drive to the computer via a port. The drive will appear as an icon on the Desktop on the middle right side (figure 1.0 below) the icon will represent the method of connection (USB or FireWire).
  • Page 19 FireWire as (figure 1.2) on the “Macintosh HD” icon. The same procedures would also apply to the following steps. Once the icon appears on the “Desktop” click on the “Macintosh HD” icon (figure 2.0) Figure 2.0 ROCSTOR | COMMANDER 3F user manual Page | 19...
  • Page 20 In the “Macintosh HD” menu, click on the “Applications” icon. In the “Applications” menu, click on the “Utilities” icon (figure 3.0.) Figure 3.0 ROCSTOR | COMMANDER 3F user manual Page | 20...
  • Page 21 In the “Utilities” menu, click on the “Disk Utility” icon (figure 4.0.) Figure 4.0 ROCSTOR | COMMANDER 3F user manual Page | 21...
  • Page 22 On the left side of the “Disk Utility” menu is a list of available drives (figure 5.0.) One will show as Rocstor drive. Click on the icon showing the disk capacity (figure 5.1.) Figure 5.0 Figure 5.1 ROCSTOR | COMMANDER 3F user manual...
  • Page 23 You are now in the Rocstor menu. Click on the “Partition” tab and then click the “Current” tab under “Volume Scheme.” A drop down “Partition” menu will appear. In the “Partition” menu, you may select any number of partitions available under “Volume Scheme.”...
  • Page 24 Volume Information: select a name for your drive (figure 7.0.) Figure 7.0 Format: Click on either the “Format” area or the Blue up/down arrows. Select Mac OS extended (journal). ROCSTOR | COMMANDER 3F user manual Page | 24...
  • Page 25 After selecting the type of format, click the “Apply” tab in the lower right of the screen, (figure 7.1.) On the next screen, Partition Disk, click “Partition” (figure 8.0) Figure 7.1 Figure 8.0 ROCSTOR | COMMANDER 3F user manual Page | 25...
  • Page 26 The drive will begin to format (figure 8.1) and upon completion; the same icon that first appeared on the Desktop will reappear with your designed name on the Desktop (figure 9.0) Figure 8.1 Figure 9.0 You can now Exit or close to return to the desktop. ROCSTOR | COMMANDER 3F user manual Page | 26...

  • Page 27: Warning

    PARTITIONING AND FORMATTING THE COMMANDER DRIVE ON WINDOWS 2000, XP AND VISTA and Windows 7 All Rocstor drives are factory formatted with FAT32, unless otherwise stated on the retail box. WARNING: Formatting and Partitioning the Commander Drive will destroy all of its data. To protect your data, back it up before formatting or partitioning this device.

  • Page 28: Different Ways To Get To The Control Panel

    2. If the icon “My Computer” does not show on your desktop, click on the Start icon on the lower left of your screen. If the Control Panel link is displayed, click on the Control Panel link. ROCSTOR | COMMANDER 3F user manual Page | 28...
  • Page 29 4. Click on the Start icon on the lower left of your screen. Click on Run. Delete anything listed in the Open window. Type the following: compmgmt.msc and then click OK. Skip to INSTRUCTION # 4 (Instructions for Partitioning and Formatting from FAT 32 to NTFS {page 24}). ROCSTOR | COMMANDER 3F user manual Page | 29...

  • Page 30: Instructions Upon Reaching The Control Panel

    INSTRUCTIONS UPON REACHING CONTROL PANEL a. After reaching the Control Panel, click on Administrative Tools. b. After reaching Administrative Tools, click on Computer Management. c. After reaching Computer Management, click on Disk Management. ROCSTOR | COMMANDER 3F user manual Page | 30...

  • Page 31: Instructions For Partitioning And Formatting From Fat32 To Ntfs

    INSTRUCTIONS FOR PARTITIONING AND FORMATTING FROM FAT32 to NTFS 1. In the “Disk Management” window, right click the Rocstor drive in the upper portion of the menu to highlight it. In the drop down menu, select “Delete Partition.” WARNING: Formatting and Partitioning the Commander Drive will destroy all of its data. To protect your data, back it up before formatting or partitioning this device.
  • Page 32 4. The Rocstor drive will show up in the lower menu as an “Unallocated” disk. 5. Right click anywhere in the “Unallocated” disk area in the lower menu. 6. Click on “New Partition.” 7. You are taken to “Welcome to the New Partition Wizard.” Click “Next”.
  • Page 33 8. Click on “Primary partition” (it should be selected as the default partition). Click “Next”. 9. Under “Specific Partition Size,” click Next to accept the default setting, which is the maximum size allowed. ROCSTOR | COMMANDER 3F user manual Page | 33...
  • Page 34 10. Under “Assign Drive Letter or Path,” accept the default letter and click “Next”. 11. In the “Format Partition,” accept the default setting. ROCSTOR | COMMANDER 3F user manual Page | 34...
  • Page 35 14. You now reached the “Completing the New Partition Wizard” screen. It displays the various settings you previously selected. If you are satisfied with your selections, click “Finish” to complete the new formatting. At this time the Rocstor disk drive is being formatted, which may take a few minutes.
  • Page 36 15. You will return automatically to the “Disk Management” window and will see the newly formatted Rocstor disk on the screen with the name you selected. If no new name was entered in the “Volume label,” the Rocstor drive will show up as “New Volume.” To rename the volume at this time, right click “New Volume”...

  • Page 37: Troubleshooting

    Troubleshooting Rocstor data storage products are subjected to several quality control tests before leaving our factory. However, from time to time, the product may not work after shipment or would experience intermittent problems under certain criteria and/or situations. Should you experience a problem with your Commander HD, please review the Manual and read the possible solutions that fit your problem.
  • Page 38 You may require upgrading to a higher version of Mac OS if your host computer does not recognize the Commander device when connected via FireWire. You must avoid particular characters similar to ^!?\< when coping to FAT 32 volume section. ROCSTOR | COMMANDER 3F user manual Page | 38...

  • Page 39: Troubleshooting For Pc Windows Based Computers

    Ensure that there is a firm connection. It is suggested that the cables be detached and reattached, and that the computer be shut off for 20 seconds and then restarted. If a conflict with drivers or extensions exists, contact Rocstor for assistance; email tech support at support@rocstor.com or call technical support department at 888.877.7716.
  • Page 40 The Commander device may not be connected to electricity. The device switch is in the OFF position. The Built-in Power Supply does not work. Contact Rocstor technical support. Situation: The light is green but it also flickers in Red. Solutions: The Light is OFF when the drive is Reading/Writing;...

  • Page 41: Knowledge Base

    The Commander series is designed for stackable, horizontal and vertical use. Includes all necessary cables and software Easy plug-and-play installation (pre-formatted Hard Drive) ROCSTOR | COMMANDER 3F user manual Page | 41...

  • Page 42: Specifications

    Transfer rates: USB 3.0 up to 5,000 Mbits/s; FireWire up to 800 MB/s; FireWire 400 up to 400 Mbits/s; USB 2.0 up to 480 Mbits/s; or USB 1.1 up to 12 Mbits/s. ROCSTOR | COMMANDER 3F user manual Page | 42...

  • Page 43: Encryption Technology (Q&A)

    Rocsecure—Commander external drives use hardware-based security, performed by eNova’s X-Wall MX, to provide reliable security for your stored data. Every bit and byte on the hard ROCSTOR | COMMANDER 3F user manual Page | 43...
  • Page 44 A: No. AES is a complicated mathematical algorithm that computes the original data with 128 or 256 bit key length. Regardless of the size of the encryption key, the size of data file after encryption remains unchanged. ROCSTOR | COMMANDER 3F user manual Page | 44...
  • Page 45 Wall Technology. It is engineered specifically to encrypt/decrypt entire SATA hard drive including boot sector and operating system in real-time performance. The cryptographic engine of the X-Wall MX is NIST (National Institute of Standards and Technology) of USA and CSE ROCSTOR | COMMANDER 3F user manual Page | 45...
  • Page 46 FIPS (US Federal Information Processing Standard) 140-2 Level 3 Cryptographic Engine validated for Physical Security Provides iron-clad security through hardware-based NIST & CSE certified cryptographic AES engine Simplify engineering design for security targets ROCSTOR | COMMANDER 3F user manual Page | 46...
  • Page 47 Very low power consumption at less than 350mW at 1.8V under constant burst mode System Requirement All Microsoft Windows Operating Systems Linux OS with SATA support All embedded OS with SATA support SATA1.0a & 2.0 compliant hard drive ROCSTOR | COMMANDER 3F user manual Page | 47...

  • Page 48: Introduction To Interfaces (Ports) And Cables

    1394a also standardized the 4 pin connector already widely in use. The 4- pin version is used on many consumer devices such as camcorders, some laptops and other small FireWire devices. Though fully data compatible with 6-pin interfaces, it lacks power connectors. ROCSTOR | COMMANDER 3F user manual Page | 48...
  • Page 49 The full IEEE 1394b specification supports data rates up to 3200 Mbits/sec over beta-mode optical connections up to 320 Ft (100 meters) in length. ROCSTOR | COMMANDER 3F user manual Page | 49...

  • Page 50: Usb (Universal Serial Bus)

    USB supports four data transfer rates: USB 3.0: A Supper-Speed (USB 3.0) rate of up to 5,000 Mbits/s (1GB/3.3sec) USB 2.0: A Hi-Speed rate of 480 Mbits/s (60 MB/s). All Rocstor devices are integrated with USB 2.0, Hi-Speed. USB 1.1: A Full Speed rate of 12 Mbits/s (1.5 MB/s). All USB Hubs support Full Speed.

  • Page 51: Comparison Chart

    6.5- 164000 Ft (2–50000 m) 16777216 with switches Infiniband > 32 Ft (>10 m) Copper 1 with point to point 12x quad-rate 120000 12000 <32,800 Ft (<10000 m) Fiber Many W/switched Fabric ROCSTOR | COMMANDER 3F user manual Page | 51...

  • Page 52: Introduction To Formatting

    Windows and Linux by using the Linux-native ext2 or ext3 file systems through the use of external drivers for Windows, such as ext2 IFS. However, Windows cannot boot from ext2 or ext3 partitions. ROCSTOR | COMMANDER 3F user manual Page | 52...

  • Page 53: Hfs Plus Or Hfs

    HFS Plus uses a larger value to address allocation blocks than HFS, 32 bits rather than 16 bits. This means it can access 4,294,967,296 (=2 ) allocation blocks rather than the 65,536 (=2 allocation blocks available to HFS. ROCSTOR | COMMANDER 3F user manual Page | 53...

  • Page 54: Limited Warranty

    Rocstor. The replacement part or product takes on either the Limited Warranty status of the removed part or product or the thirty (30) day limited warranty of the spare part. In the unlikely event that your Rocstor product has a recurring failure, Rocstor, at its discretion, may elect to provide you with a replacement unit of Rocstor‘s choosing that is at least equivalent to your Rocstor branded product in hardware performance.
  • Page 55 Rocstor does not warrant that the operation of this product will be uninterrupted or error-free. Rocstor is not responsible for damage that occurs as a result of your failure to follow the instructions that came with the Rocstor branded product.
  • Page 56 PERFORM, INCLUDING ANY LOST PROFITS OR SAVINGS OR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. ROCSTOR IS NOT LIABLE FOR ANY CLAIM MADE BY A THIRD PARTY OR MADE BY YOU FOR A THIRD PARTY. THIS LIMITATION OF LIABILITY ALSO APPLIES WHETHER DAMAGES ARE SOUGHT OR A CLAIM IS MADE UNDER THIS LIMITED WARRANTY OR AS A TORT CLAIM (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY), A CONTRACT CLAIM OR ANY OTHER CLAIM.
  • Page 57 Rocstor on the Rocstor branded product or included with the Rocstor branded product at the time of your purchase or lease of the product is available for a fee. WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended.

  • Page 58: Technical Support

    Technical Support All Rocstor hard drives are backed by free telephone technical support for two (2) years from the date of purchase. Please register your product with Rocstor. To register, fill in the Limited Warranty Registration form in the Support tab at www.rocstor.com.

  • Page 59: Contact Information

    Educational sales information: academic_sales@Rocstor.com Federal, State & Local government sales information: government_sales@Rocstor.com Resellers/Business Development/OEM Partners All Channel National and International Resellers, VARs, Consultants … contact Rocstor Channel Sales: In U.S., call: 888.877.7716 Out of USA call +1.818.449.2000 Email: reseller_info@Rocstor.com ROCSTOR | COMMANDER 3F user manual...
  • Page 60 Available in Black Thank you for purchasing Commander 3F Rocstor Ver.0726K ROCSTOR | COMMANDER 3F user manual Page | 60...
