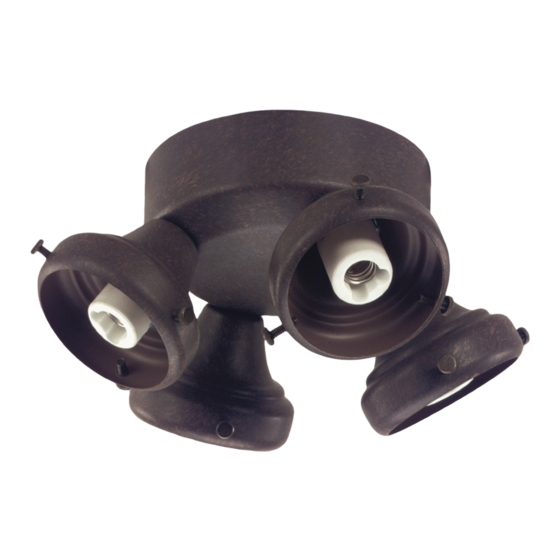

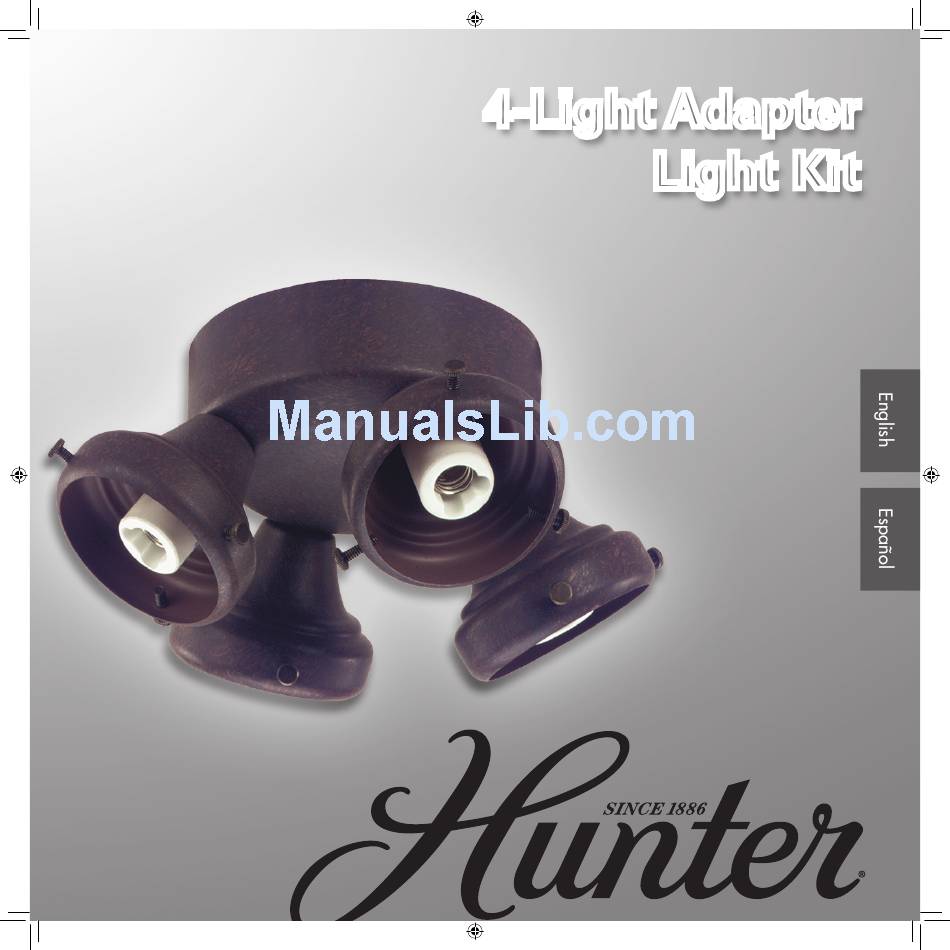

- Page 1 4-Light Adapter 4-Light Adapter 4-Light Adapter Light Kit Light Kit Light Kit Owner’s Guide and Installation Manual Manual De Propietario Form# 43548-01 20090430 ©2009 Hunter Fan Co.
- Page 2 • To reduce the risk of personal injury, install this light fixture only on Hunter® fan types A through Z. Note: The fan type can be found on the ceiling fan package or on the nameplate label located on top of the motor housing of the ceiling fan.
- Page 3 Fan Corte D’ A zur, Custom Home, 42” Dominion, 52” Dominion, Marseille, and Santa Barbara models. Preparing the Light Kit 1. Shades are not included with this light kit. Be sure to purchase shades for your light kit before installing this light kit.
- Page 4 Installing the Light Kit on Fans With Removable Switch Housings Before installing the light fixture, remove the wiring harness and its components from the fan’s lower switch housing. Then install the wiring harness into the light fixture. 1. Unscrew the three screws from the upper switch housing. Disconnect the 9-pin plug connectors.
- Page 5 CAUTION: Be sure no bare metal wires or wire strands are visible after making the connections. 12. Reconnect the 9-pin plug connector. Plug 13. Install screws to reattach the light kit to the upper switch housing. Connector Plug Connector Detail...
-
Page 6: Troubleshooting
If you need parts or service assistance, please call 888-830-1326 or visit us at our Web site at http://www.hunterfan.com. Hunter Fan Company 7130 Goodlett Farms Pkwy. # 400 Memphis, Tennessee 38016 This Light Fixture Weighs 2 lbs. Printed in China 43548-01 • 04/30/09 • Hunter Fan Company...
