RIDGID RD80770 Operator's Manual

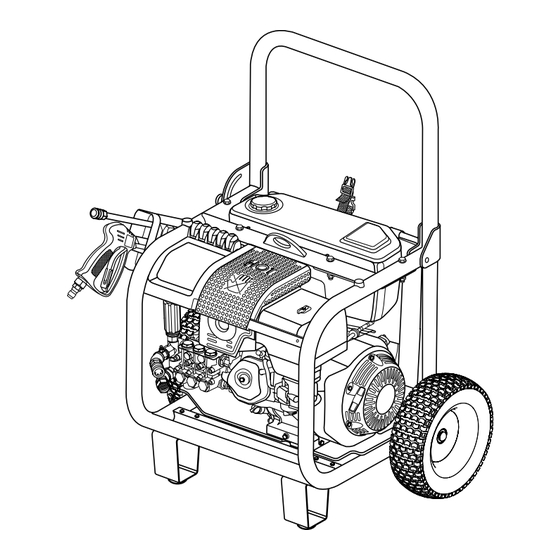

Gasoline pressure washer
Hide thumbs Also See for RD80770:

Advertisement

Table of Contents

Your pressure washer has been engineered and manufactured to our high standard for dependability, ease of operation,
and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
GASOLINE PRESSURE WASHER
RD80770
product.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD80770 and is the answer not in the manual?

Questions and answers

Related Manuals for RIDGID RD80770

Summary of Contents for RIDGID RD80770

  • Page 1 When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product. Thank you for buying a RIDGID product. ®...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS n Introduction.................................. n Important Safety Instructions ............................3 n Specific Safety Rules ................................ 4 n Symbols ..................................5-6 n Features ..................................7-8 n Assembly ..................................9-13 n Operation ...................................14-18 n Maintenance ................................19-1 n Troubleshooting ................................ n Warranty ..................................3-5 n Parts Ordering/Service ............................Back page INTRODUCTION This tool has many features for making its use more pleasant and enjoyable.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS checked to determine that it will operate properly and perform its intended function. Check for alignment of WARNING: moving parts, binding of moving parts, breakage of parts, Read and understand all instructions. Failure to mounting, and any other conditions that may affect its follow all instructions listed below, may result in operation.

  • Page 4: Specific Safety Rules

    SPECIFIC SAFETY RULES n Never direct a water stream toward people or pets, n Never store the machine with fuel in the fuel tank or any electrical device. inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers, n Before starting any cleaning operation, close doors and the like.

  • Page 5: Symbols

    SYMBOLS Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta- tion of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION To reduce the risk of injury, user must read and understand Read The Operator’s Manual operator’s manual before using this product.
  • Page 6 AUTHORIZED SERVICE CENTER for repair. When servic- understand completely the operator’s manual. Save ing, use only identical replacement parts. this operator’s manual and review frequently for continuing safe operation and instructing others who may use this product. Call RIDGID customer ® service for assistance. WARNING: The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage.

  • Page 7: Features

    FEATURES PRODUCT SPECIFICATIONS Engine Size ..................................389cc Fuel Tank Capacity ..............................3.5 gallons Maximum Pounds Per Square Inch Pressure* ......................3,800 psi Maximum Gallons Per Minute* ............................4 gpm Maximum Inlet Water Temperature ..........................104˚F *Max. rating determined by PWMA Standard 101 hOSe StOraGe chOke fuel ValVe...

  • Page 8: Spark Arrestor

    FEATURES KNOW YOUR PRESSURE WASHER PRESSURE/FLOW ADjUSTMENT HANDLE See Figure 1. Use the pressure/flow adjustment handle to change the The safe use of this product requires an understanding of pressure/flow levels of the cleaning stream for acceptable the information on the tool and in this operator’s manual as pressure/flow for every project.

  • Page 9: Assembly

    ASSEMBLY UNPACKING WARNING: his product requires assembly. Do not attempt to modify this tool or create acces- Carefully cut the box down the sides then remove the sories not recommended for use with this tool. Any machine and any accessories from the box. Make sure such alteration or modification is misuse and could that all items listed in the packing list are included.
  • Page 10 ASSEMBLY key SlOtS INSTALLING THE FRAME SUPPORTS See Figure 3. n Locate the frame supports, hex bolts ( long and  short), and hex nuts. n Raise the end of the pressure washer high enough to access the frame bottom. Position blocks of wood under the machine for support.
  • Page 11 ASSEMBLY ATTACHING INjECTION HOSE trIGGer See Figure 7. haNdle Before detergent can be used with this machine, the injection hose must be attached. n Remove the clear injection hose. Uncoil the hose. Push the open end of the injection hose securely over the fitting.
  • Page 12 ASSEMBLY ADDING LUBRICANT TO THE ENGINE See Figure 8. WARNING NOTE: This machine has been shipped with approximately Gasoline and its vapors are highly flammable and  oz. of lubricant in the engine from testing. You must add explosive. To prevent serious personal injury and lubricant to the engine before starting it the first time.
  • Page 13 ASSEMBLY CONNECTING THE GARDEN HOSE TO THE PRESSURE WASHER WARNING See Figure 10. Make sure the nozzle and hose connections are The water supply must come from a clean water source secure before starting the machine. A non-secured (e.g. public water main or well) with the following specifica- accessory could become a projectile if not properly tions: installed which could result in serious injury.

  • Page 14: Operation

    OPERATION APPLICATIONS WARNING: You may use this product for the purposes listed below: Do not allow familiarity with tools to make you Remove dirt and mold from decks, cement patios, careless. Remember that a careless fraction of a house siding, etc. second is sufficient to inflict severe injury.
  • Page 15 OPERATION CAUTION : Do not run the pump without the water supply con- nected and turned on as this will result in damage to the pump. STARTING AND STOPPING THE PRESSURE WASHER SwItch See Figures 12 - 15. NOTE: Before starting the engine, read the engine operator’s manual.
  • Page 16 OPERATION SlOt WARNING Never direct water stream towards people or pets, or place any part of the body in the stream path as this may cause injection type injuries. Leaking hoses and fittings are also capable of causing injection injuries. WARNING Hold the handle and wand securely with both hands.
  • Page 17 OPERATION quIck-cONNect cOllar WARNING Make sure the nozzle and hose connections are secure before starting the machine. A non-secured accessory could become a projectile if not properly installed which could result in serious injury. “clIck” SELECTING THE CORRECT QUICK-CONNECT NOzzle NOZZLE FOR THE jOB Spray waNd See Figure 17.
  • Page 18 OPERATION USING THE PRESSURE WASHER See Figure 19. n Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure. n Engage the lock out on the trigger by pushing up on the lock out until it clicks into the slot. n Select the correct nozzle for the job: •...

  • Page 19: Maintenance

    MAINTENANCE NOZZLE MAINTENANCE WARNING: See Figure 20. Excessive pump pressure (a pulsing sensation felt while When servicing, use only identical replacement squeezing the trigger) may be the result of a clogged or parts. Use of any other parts may create a hazard dirty nozzle.
  • Page 20 MAINTENANCE STORING THE PRESSURE WASHER PUMP MAINTENANCE See Figures 21 - 22. We recommend having the pump lubricant changed every It is important to store this product in an area that will not 00 hours to ensure longer life of the machine. This service experience freezing temperatures.
  • Page 21 MAINTENANCE P E R I O D I C M A I N T E N A N C E S C H E D U L E NOTE: For engine repair, service, and warranty, please see the Honda engine manual, call 1-(770)-497-6400, or visit the TABLE Honda website at www.honda-engines.com.

  • Page 22: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION Engine fails to start 1. Engine switch is in the off position. 1. Move switch to start. . Fuel valve lever is OFF. . Move the lever to ON. 3. No fuel in tank. 3. Fill tank. 4.
  • Page 23 WARRANTY EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS Your new RIDGID brand gasoline powered product complies with all applicable U.S. EPA, Environment Canada, and State ® of California emissions regulations. The evaporative emissions portion of this coverage, as described below, is provided by Techtronics Industries North America, Inc.
  • Page 24 WARRANTY DEFECTS WARRANTY REQUIREMENTS: Repair or replacement of any warranted part under the warranty provisions of this article (a) The warranty period begins on the date the engine or must be performed at no charge to the owner equipment is delivered to an ultimate purchaser. at a warranty station.

  • Page 25: Limited Warranty

    TATIONS OR PROMISES AS TO THE QUALITY OR PER- This product is manufactured by Techtronic Industries North FORMANCE OF ITS PRESSURE WASHERS OTHER THAN America, Inc. The trademark is licensed from RIDGID, Inc. All THOSE SPECIFICALLY STATED IN THIS WARRANTY. warranty communications should be directed to Techtronic Industries North America, Inc., attn: Pressure Washer Techni-...
  • Page 26 OPERATOR’S MANUAL GASOLINE PRESSURE WASHER RD80770 CUSTOMER SERVICE INFORMATION For parts or service, contact your nearest RIDGID authorized service ® center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
