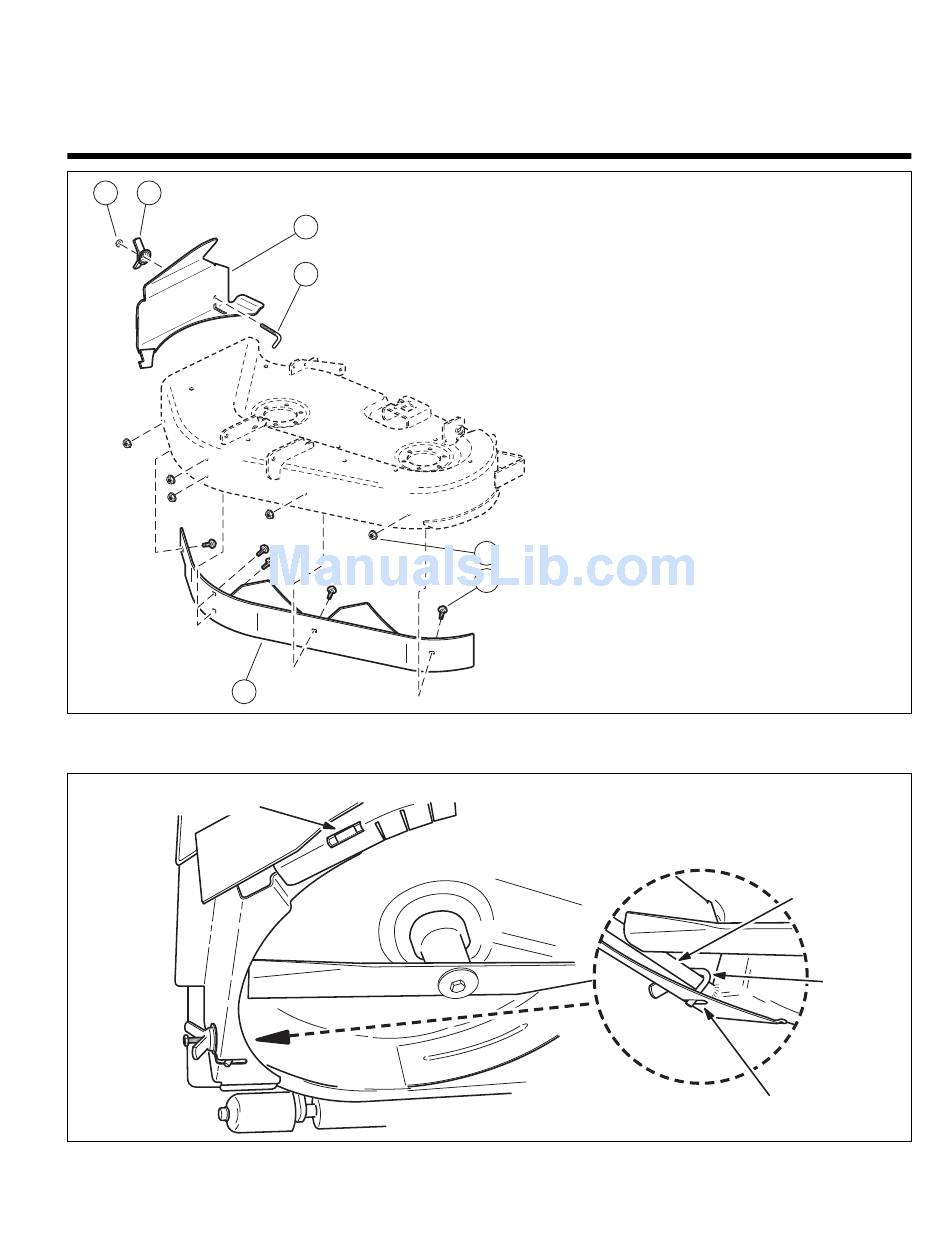

Figure 1.
Kit Components
MULCH PLATE TAB
LOCATED IN BAFFLE SLOT
Figure 2.
Mulch Plate Installation
© Copyright 2003 Ferris Industries. All Rights Reserved.
Kit Contents:
Ref
A
A.
B.
E
C.
D.
E.
F.
G.
34" Mulcher Deck Kit
Part No.
Qty.
Description
1724832
1
MULCH PLATE
1724457
1
34" BAFFLE
1923362
1
NUT, Hex Lock, 5/16-18
1679163
1
WING NUT
1724475
1
J-BOLT
25127
5
NUT, Serrated Flange, 5/16-18
1931333
5
CARRIAGE BOLT, 5/16-18 3/4
F
G
1
Part No. 48550
For Derby Pacer 1334
STONE GUARD
J-BOLT
SLOT
Rev. 01/2003
TP 200-7115-00-SK-D
