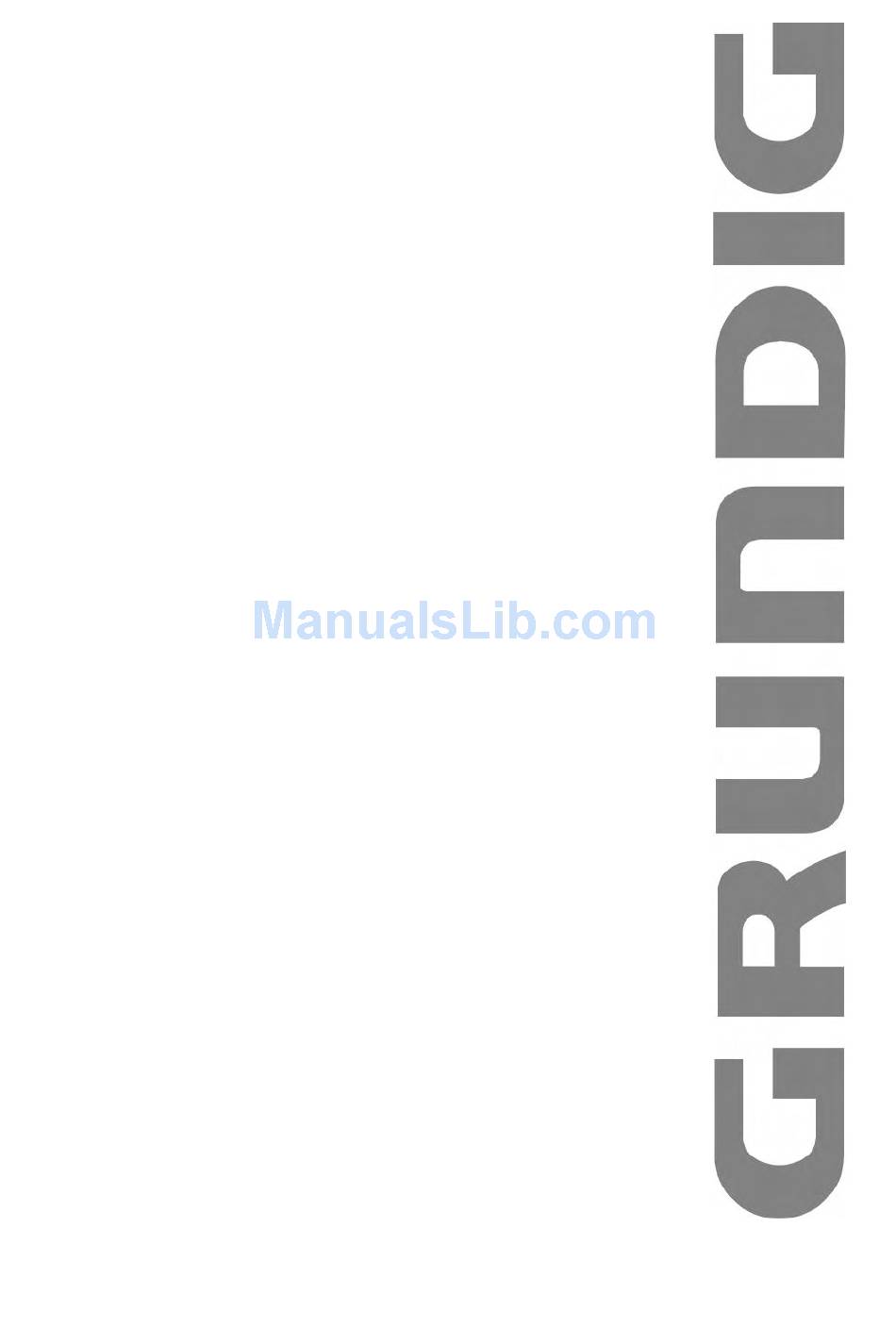

- Page 1 VANTO+ HD LED LCD TV GLED1907HDB GLED2207HDB GLED2407HDB The Gold Technical Support Line: 1902 215 259 (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
Introduction Thank you for buying this Grundig product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please the take time to read these instructions. They are designed to familiarise you with the unit‟s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Contents Introduction………………...…………………………………..….………1 Safety Instructions……………………………………………………..3-4 Unpacking………………………………………………………………...5 LED LCD TV Installation……………………………..…………………..6 Wall Mount Bracket Installation ………………………………………..7 View of LED LCD TV……………………………………………….…..8-9 Remote Control …………………..………………………….…….10-13 Installation and Connection …………………………….………….14-15 TV Basic Operation ………………….……..…….…………………15-17 TV Channel Menu …………………...………………….……….….17-39 Auto Scan………………………………………..………..…...18 Manual Scan…………………………………………………..19-20 Program Edit…………………………………………….....20-21 PVR Basic Operation………………………………………….22-39 Picture Menu………………………….…….………………….30-31 Sound Menu……………………………………………………31-32... -
Page 4: Safety Instructions
Safety Instructions 1. Please read these operating instructions carefully before you operate this unit. Do not use this television near water. 3. Clean with a dry cloth only. 4. Do not block any ventilation openings. Install in accordance with the manufacturers‟ instructions. - Page 5 Installation Notes This TV can be connected to AC 100-240 Volts, 50/60 Hz power source. Never connect straight to a DC supply or any other power supply, then specified above. Locate the TV in the room where light does not directly strike the screen. ...
-
Page 6: Unpacking
Unpacking ___________________________________________ Please make sure that the following items are included with your LED LCD TV. If any item is missing, please contact the warranty line. LED TV Remote Control Operation Manual DC Adaptor Power Cord RCA Cable 4 Cabinet Screws SJ2822-87 ST4*12 - 5 -... -
Page 7: Led Lcd Tv Installation
TV Installation Place the “LED LCD TV” on a solid flat surface. Use soft material to place over the front screen to avoid any damage. Use the 4 screws provided to attach the unit to the stand as per the diagram below. -
Page 8: Wall Mount Bracket Installation
Wall Mount Bracket Installation Use the 4 screws provide to fix the TV to your wall mount bracket (not included). This TV is VESA Standard and as shown below there are 4 VESA holes provided (100mm x 100mm). - 7 -... -
Page 9: View Of Led Lcd Tv
View of the TV Front View Back View - 8 -... - Page 10 LED LCD TV Key Functions Power Indicator 10. DC Input In Power On Mode the indicator will The DC Input allows you to connect your turn green. In Standby mode the DC 12 Volt power supply. indicator will be red. 11.
-
Page 11: Remote Control
Remote Control - 10 -... - Page 12 Remote Control Keys Function 1. Power Button: Press the Power Button to switch the TV on or off. 2. Numeric Buttons: Press the Numeric Buttons to select a channel or select a page in the Teletext. 3. CH.LIST Button: Press the Channel List Button to show the channel list. 4.
- Page 13 29. Skip Backwards Button: Press the Skip Backwards Button to go back to the previous chapter in USB mode or to skip backwards in Time shift mode. 30. Skip Forward Button: Press the Skip Forward Button to skip to the next chapter in USB mode or to skip forwards in Time shift mode.
-
Page 14: Remote Control
Remote Control Battery Installation Replace battery by following the below steps: The remote control requires two AAA batteries. Open the battery cover as shown below: Install the batteries into the battery tray. Close the battery cover Caution: 1. Keep the batteries out of the reach of children. 2. -
Page 15: Installation And Connection
Installation and Connection Connect the LED LCD TV 1. Connect the TV RF source to the RF IN port. TV/RF signal including: Receiving antenna /satellite TV/CATV net. You can use 75Ω coaxial cable to connect the outdoor antenna. Outdoor Antenna Connection: Use 75Ω... -
Page 16: Tv Basic Operation
2. Ensure you connect your audio sources (including DVD, VCR, Camcorder and PC) to the Left and Right Audio Input jacks „L‟ and „R‟. 3. To connect your video sources (including DVD, VCR or Camcorder) you must connect them to the Video Input via the RCA Cable. 4. - Page 17 Channel List will appear on the left top corner of the screen after initial Channel List Button the channel scan is complete or to view press the "-/--" to view. Press the CH- or CH+ Buttons to scroll through the channel list or press the 0-9 Buttons to select and enter a channel Press the OK button to confirm number directly.
-
Page 18: Tv Channel Menu
Press the TEXT Button to enter the TELETEXT Menu. Then press the TEXT Button again to exit. Press the CH- or CH+ Buttons to select the previous page or press the 0-9 numeric Buttons for your desired page. Note: The first number should not be „0‟... -
Page 19: Auto Scan
Auto Scan When you select Auto Scan, this screen will be displayed and the channel scan will begin automatically. Press the ▲or▼ Buttons to move the cursor to select Auto Scan and then press the OK or ►Button to enter and confirm. A pop-up menu will be displayed and you will be able to enter your country origin and the type of scan you would like to conduct. -
Page 20: Manual Scan
DTV Manual Scan Press the ◄or ► Buttons to select the individual DTV channel you wish to tune. Then press the OK Button to start the scan. ATV Manual Scan Press the ◄or ► Buttons to select the individual ATV channel you wish to tune. Then press the OK to start scan. -
Page 21: Program Edit
Search Press the ► or ◄ Buttons to search backward/forward, through the manual scan. Press the MENU Button or EXIT Button to stop the manual search. Fine-Tune Press the ► or ◄ Buttons to fine tune the signal level of the current ATV channel. - Page 22 To move the position of a channel, press the Buttons to move cursor to your desired program. Press the yellow Button to select and confirm the channel or program you wish to move. The MOVE mark will be displayed. Then press the to move the channel to the new position.
-
Page 23: Pvr Basic Operation
(Only for DTV) Please ensure the USB is connected into TV‟s USB input before selecting this option. In DTV mode and the TV channel menu, press ► Button to enter into the below submenu. NOTE: Please check that your USB or Hard Disc is compatible and does not require formatting. - Page 24 3) To stop recording, enter the PVR Menu again and the first option displayed will be “Record Stop”. Highlight Record Stop and press the OK or ► simply press the Stop Button to stop recording. Alternatively you can Button on remote control to stop recording. Recorded List To view the Recorded List in the PVR Menu, press the ►...
-
Page 25: Pvr File System
Recorder Schedule To view the Recorder Schedule in the PVR Menu, press the ► Button to select and enter this menu. Here you are able to view all the programs that have been booked in to record. The results column will show you the status of the program you wish to record. - Page 26 Select Disk To view and select the USB file or the allocated space on your Hard Disk, you would like to record to, select the Select Disk option. If using a USB for recording, "C:" is shown regularly. If you are using a Hard Disc for recording, you can press <...
- Page 27 Format completed as below： Once the USB has been formatted, press the RED ● Button to begin record the DTV program of your choice. Press the Record Button again to pause recording. Press the ■ Button to exit/stop the program record. - 26 -...
- Page 28 Enter Recorded List in your PVR sub MENU to select the recorded program for playback. Press OK button or Play/Pause Button to play. Press the ►II Button again to pause or press the ■ Button to exit play. To enter and view the Recorded List Menu whilst you are recording press the INDEX Button, see below.
- Page 29 Time shift – Play Pause Rewind Insert your USB storage device into the USB input to utilise Play, Pause and Rewind Live TV/Time shift. Use the Time shift feature in the PVR File System to format your USB to enable the Time shift function. In the setting you will be able to see the Time shifIt memory size and you will be able to adjust as per below.
- Page 30 Press the ■ Button to exit the Time Shift function. Pre-record through your EPG Menu/PVR Function The PVR and EPG functions allow you to set reminders and pre-record your favourite programs. In the EPG Menu select the program you wish to set as a pre-record.
-
Page 31: Picture Menu
PICTURE Menu ◄ or To enter the Picture Menu, press the MENU Button and then press the ► Buttons to select the Picture Menu. ▲ or ▼ Buttons to select the settings Once in the Picture Menu, press the you wish to adjust. To return to the Main Menu, press the MENU Button or to exit press the EXIT Button. -
Page 32: Sound Menu
Tint Press the ◄ or ► Buttons to adjust the tint, this option only works in VGA mode and when the VGA input is connected. Colour Temperature Press the ◄ or► Buttons to select the colour temperature; Cool, User, Warm, and Standard. -
Page 33: Time Menu
◄ or To enter the Sound Menu, press the MENU Button and then press the ► Buttons to select the SOUND Menu. ▲ or ▼ Buttons to scroll through the settings in the Sound Menu. Press the To return to the Main Menu, press the MENU Button or to exit press the EXIT Button. -
Page 34: Off Time
Buttons to select the Time Menu. ▲ or ▼ Buttons to scroll through the settings in the Time Menu. To Press the return to the Main Menu, press the MENU Button or to exit press the EXIT Button. Clock To set the clock, press the ◄ or ► Buttons to select to change the hours or minutes. -
Page 35: Option Menu
OPTION Menu ◄ or To enter the Option Menu, press the MENU Button and then press the ► Buttons to select the Option Menu. ▲ or ▼ Buttons to scroll through the settings in the Option Menu. Press the To return to the Main Menu, press the MENU Button or to exit press the EXIT Button. -
Page 36: Lock Menu
LOCK Menu ◄ or ► To enter the Lock Menu, press the MENU Button and then press the Menu. The initial start up password it “0000”. Buttons to select the Lock ▲ or ▼ Buttons to scroll through the settings in the Lock Menu. To return Press the to the Main Menu, press the MENU Button or to exit press the EXIT Button. -
Page 37: Parental Guidance
Parental Guidance Press the ◄ or ► Buttons to set the program rating and to block selected rating programs. Hotel Mode ► ▲ or ▼ Press the OK or Button to enter the Hotel Mode list. Press Buttons to select the desired setting and set by pressing the ◄ or ► Buttons. Hotel Lock To set the Hotel Lock Mode, press the ◄... -
Page 38: Epg Menu
To set the Max Volume Mode, press the ◄ or ► Buttons to turn it on or off. Source Lock Press the ► Button to enter into below source lock list: Source Lock YPBPR PC-RGB HDMI Media Player ▲ or ▼ Buttons to select the related source, and set by ◄ or ► Press Button to on or off source. -
Page 39: Epg Menu
To see what is going to be broadcast after the current programme, press the ► Button. Press the◄ Button to move to the current time. To view a different ▲ or ▼ channel, press the Buttons. If you wish to book a program to watch later, press the Blue Button and then press the Green Button to enter the schedule list. - Page 40 Movie Press the Buttons to select Movie Menu and then press the OK Button to enter the Menu. Press the Buttons to select the file you wish to play. Press the EXIT Button to go back to previous Menu. Multimedia Files Basic Operation Play/Pause File Press the Button to play, pause or resume play of a Multi-media file.
-
Page 41: Multimedia/Other Operation
repeatedly to change speed. Skip Next or Previous Track Press the Buttons to skip to the next track or previous track. Other Operation Headphone Operation This unit includes a Headphone Input. You can connect headphones via the 3.5 mm Headphone Input. When Headphones are plugged in, the speaker sound will be automatically turned off. -
Page 42: Troubleshooting
If you have any issues or queries about the functions of this TV, please check the below table as we have provided you with FAQs to assist with any issues. If this table is not of assistance, please contact the Grundig warranty line. Issue... -
Page 43: Specifications
Specifications Model No. GLED1907HDB Screen size 18.5 inch Screen format 16:9 Resolution 1366*768 Contrast 1000:1 Brightness 250 cd/m² Display colours 16.7M View angle 170° (horizontal) / 160° (vertical) Response time 5 ms TV system DTV: DVB-T ATV: PAL I/BG/L/DK Audio: MPEG2 Audio Layer I&II DTV decode Video: MPEG2 Transport MP@HL MPEG4 / H.264 supported... - Page 44 Model No. GLED2207HDB Screen size 21.5 inch Screen format 16:9 Resolution 1920*1080 Contrast 1000:1 Brightness 250 cd/m² Display colours 16.7M View angle 170° (horizontal) / 160° (vertical) Response time 5 ms TV system DTV: DVB-T ATV: PAL I/BG/L/DK Audio: MPEG2 Audio Layer I&II DTV decode Video: MPEG2 Transport MP@HL MPEG4 / H.264 supported...
- Page 45 Model No. GLED2407HDB Screen size 23.6 inch Screen format 16:9 Resolution 1920*1080 Contrast 1000:1 Brightness 250 cd/m² Display colours 16.7M View angle 170° (horizontal) / 160° (vertical) Response time 5 ms TV system DTV: DVB-T ATV: PAL I/BG/L/DK Audio: MPEG2 Audio Layer I&II DTV decode Video: MPEG2 Transport MP@HL MPEG4 / H.264 supported...
-
Page 46: Display Modes
Display modes (only VGA) Horizontal Freq. Vertical Freq. Mode Resolution (KHz) (Hz) 640X350 31.469 70.086 720X400 31.469 70.087 640X480 35.000 66.667 832X624 49.726 74.551 1152X870 68.681 75.062 720X576 35.910 59.950 1152X864 53.783 59.959 VESA CVT 1280X720 56.456 74.777 1280X960 75.231 74.857 640X480 31.469... -
Page 47: Display Modes
Display modes which are not listed in the above table, may not be supported, by this unit. For an optimal picture it is recommended to choose a mode listed in the table above. You have available modes compatible with Windows and MAC. There can be image disruption in PC mode. -
Page 48: Warranty
In the unlikely event that your product fails to work normally, please contact Grundig Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 49 PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au - 48 -...
