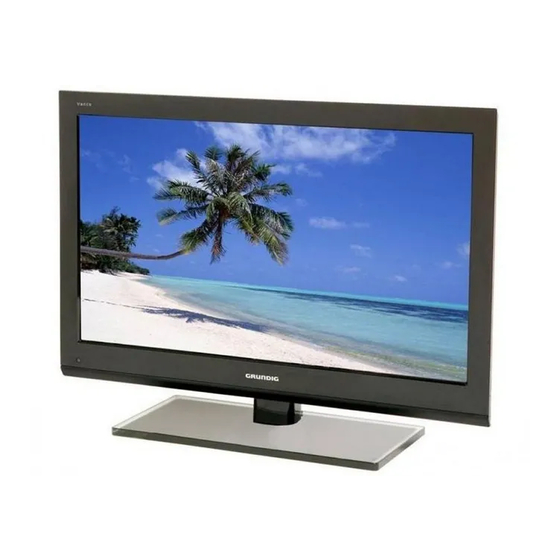

- Page 1 VANTO HD LED LCD TV GLED1907HD GLED2207HD Gold Technical Support Line: 1902 215 259 (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
Introduction Thank you for buying this Grundig product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit‟s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Contents Introduction …………………………………....1 Safety Instructions……………………………………... 3 Unpacking ………………………………………... 5 Wall Mount Bracket Installation Guidelines ……..… 6 View of TV.....………..…………………………... 7 LED LCD TV Functions ………..……………………… 8 Remote Control …………………......9 Remote Control Function …………………....1 0 Installation and Connection ……………....12 TV Screen Operation............13 TV Channel Menu and Adjustments...…...... -
Page 4: Safety Instructions
Safety Instructions 1. Do not use this television near water. 2. Clean with a dry cloth only. 3. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 4. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. -
Page 5: Installation Notes
Installation Notes This TV can be connected to AC 100-240 Volts, 50/60 Hz power source. Never connect straight to a DC supply or any other power supply. Locate the TV in the room where the light does not directley strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain. -
Page 6: Unpacking
Unpacking ___________________________________________ Please make sure that the following items are included with your LED LCD TV. If any item is missing, please contact the warranty line. LED LCD TV M D A L ST S B I LE Remote Control Operation Manual DC Adaptor Power Cord... -
Page 7: Wall Mount Bracket Installation Guidelines
Wall Mount Bracket Installation ____________________________________________ Place the LED LCD TV on a solid surface. Place soft material over the front of the screen to avoid any damage or marks. Remove the 4 screws (①②③④) from the bottom of unit and detatch the stand (Refer to Picture 1). -
Page 8: View Of Tv
View of the TV Front view Back view 1617 18 - 7 -... -
Page 9: Led Lcd Tv Functions
LED LCD TV Functions DC Input Power Indicator In Power On Mode the indicator will The DC Input is where you connect turn to blue. In Standby mode the your 12V Power Supply indicator will be red. VGA Input Remote Sensor The VGA Input allows you to connect Receives remote signals from the your TV to your PC. -
Page 10: Remote Control
Remote Control MEDIA LIST SOURCE SUBTITLE HOLD REPEAT TV/RADIO FREEZE - 9 -... -
Page 11: Remote Control Function
Remote Control Funtions 19. Sleep Button 1. Power Button Press the Power Button to switch the TV on or off. Press the Sleep Button to set your TV to automatically turn 2. Mute Button off after a set period of time. Press the Mute Button to turn the sound off or on. -
Page 12: Remote Control Battery Installation
Remote Control Battery Installation Replace batteries by following the below steps: The remote control requires two AAA batteries. Open the battery cover as shown below: Install the batteries into the battery tray. Close the battery cover Caution: 1. Keep the batteries out of the reach of children. Do not attempt to recharge, short-circuit, disassemble, heat up or throw batteries into a fire. -
Page 13: Installation And Connection
Installation and Connection Connect the LED LCD TV 1. Connect the TV Aerial to the RF IN. TVRF signal including: Receiving antenna /satellite TV/CATV net. You can use a 75Ω coaxial cable to connect the outdoor antenna. Outdoor Antenna Connection: Use 75Ω... -
Page 14: Tv Screen Operation
TV Basic Operation Press the POWER button on the unit or from the remote control to turn the TV on. The power indicator on the front of the unit will turn blue. Press the POWER button again to switch off the TV, the indicator turn to red. - Page 15 Channel ‘1’ will appear on the left top corner after the initial channel scan is finished. Press the CH- or CH+ button to scroll through the stations or press the 0-9 buttons to enter the desired channel number directly. Press the button on the remote control to switch back to the previous channel viewed.
-
Page 16: Tv Channel Menu And Adjustments
Press the TTX button to enter Teletext Menu. Press the TTX button again to exit. Press the CH- or CH+ buttons to select the previous page or press the 0-9 numeric buttons for your desired page. Note: The first number should not be ‘0’ or ‘9’. TV Channel Menu The TV Channel Menu will give you access to the program functions i.e. - Page 17 DTV Manual Scan Press the ◄► buttons to select the desired channel, then press the OK button to confirm. ATV Manual Scan - 16 -...
-
Page 18: Program Edit
Press the buttons to select the ATV settings you desire to change, ▲ ▼ then press the buttons to adjust the setting. Press the OK button to confirm and press the MENU button to return to the previous menu or press the EXIT button to exit. Storage Press the buttons to select the ATV channel number you want to save to. -
Page 19: Picture Menu
Press the ▲ or▼ buttons to select the channel you wish to edit. Delete Press the red button and the DELETE mark will be shown on the current channel. Press the red button again to delete the selected program. Rename Press the green button &... -
Page 20: Picture Mode
Press the MENU button to display the Main Menu， then press the button to select the Picture Menu. Press the ▲ or ▼ buttons to select the settings and then press the button to enter the sub-menu. Press the MENU button to return to the previous menu or press the EXIT button to exit. -
Page 21: Sound Menu
Press the button to turn the Noise Reduction function on or off Sound Menu Press the MENU button to display the Main Menu， then press the button to select Sound Menu. Press the ▲ or ▼ buttons to select the settings in Sound Menu. Press buttons to enter the sub-menu. -
Page 22: Time Menu
TIME Menu Press the MENU button to display the Main Menu, then press the buttons to select the Time Menu. Press the ▲ or ▼ buttons to select the Time settings, press the buttons to enter the sub-menu. Press the MENU button to return to the previous menu or press the EXIT button to exit. -
Page 23: Auto Sleep
Auto Sleep Press the buttons to set Auto Sleep to on or off. When it’s set to on, the unit will turn to Standby Mode. It will also turn off if there is no signal input for longer than 5 minutes. Time Zone Press the buttons to set the time zone. -
Page 24: Lock Menu
Country To display the country you have set when you set up the inital settings. Restore Setting Factory Press the buttons to select the Factory default restore to reset your settings. LOCK Menu Press the MENU button to display the Main Menu， then press the buttons to select the Lock Menu. -
Page 25: Block Program
Block Program Press the OK or button to enter the program list. Press ▲ or ▼ buttons to select the channel you want to lock then press the green button to lock. Once locked the lock icon will appear behind the locked channel. To un-lock the channel, select the locked channel and press the green button again, the lock icon will disappear. -
Page 26: Usb Operation Instruction
To see what is going to be broadcast after the current programme, press the button. To change the time, press the button to move the time back. To view a different channel, press the ▲ or ▼ button. To book a desired program to watch later, press the blue button set programme. - Page 27 1）In the USB Menu, press the left or right buttons to select the Photo Menu， then press the OK button to enter the Photo Menu. Once in the Photo Menu, select the file you wish to view i.e. JPEG etc. Press the Up or Down buttons to select the image files you wish to view.
- Page 28 3）Press the Play button to enter the playlist being played. Press the Up and Down buttons to move the cursor over the next song you wish to play. Press the OK button to confirm. 、 、、 、 Press the Exit button to quit playlist and press the Menu button to return to the Main Menu. 、...
-
Page 29: Troubleshooting
LED LCD TV Trouble Shooting Should the unit not function, please check the following table to find out the possible problem. If you still can not solve the problem, please contact the Grundig Warranty line. Symptom Remedy 1. Check whether the power plug is connected to the power No power supply. -
Page 30: Notes
Notes (1) Please read these operating instructions carefully before you operate this unit. (2) When you want to turn off the electricity supply to the unit, please press the POWER button on the unit, then take out the plug from the wall outlet. - Page 31 - 30 -...
-
Page 32: Specifications
Specifications Model No. GLED2207HD Screen size 22 inch Screen format 16:9 Resolution 1920*1080 Contrast 1000:1 Brightness 250 cd/m² Display colours 16.7M View angle 170° (horizontal) / 160° (vertical) Response time 5 ms TV system DTV: DVB-T ATV: PAL I/BG/L/DK MPEG2 Audio Layer I&II Audio: DTV decode MPEG2 / MEPG4 / H.264 Transport MP@HL... - Page 33 Power Consumption Max 35W * Design and specifications are subject to change without prior notice. Model No. GLED1907HD Screen size 19 inch Screen format 16:9 Resolution 1366*768 Contrast 1000:1 Brightness 250 cd/m² Display colours 16.7M View angle 170° (horizontal) / 160° (vertical) Response time 5 ms TV system...
-
Page 34: Display Modes
Display modes Resolution Horizontal Freq. (KHz) Vertical Freq. (Hz) 720x400 31.5 640x400 31.5 640x480(VGA) 31.5 640x480(VGA) 37.9 640x480(VGA) 37.5 800x600(SVGA) 37.9 800x600(SVGA) 47.2 800x600(SVGA) 46.9 1024x768(XGA) 48.4 1024x768(XGA) 56.5 1024x768(XGA) 60.0 1280x1024(SXGA) 63.5 1280x1024(SXGA) 80.0 1. Modes, which are not listed in the above table, may not be supported. For an optimal picture it is recommended to choose a mode listed in the table. -
Page 35: Warranty
In the unlikely event that your product fails to work normally, please contact Grundig Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 36 PO BOX 6287 Silverwater, NSW, 1811 www.grundig.net.au...
