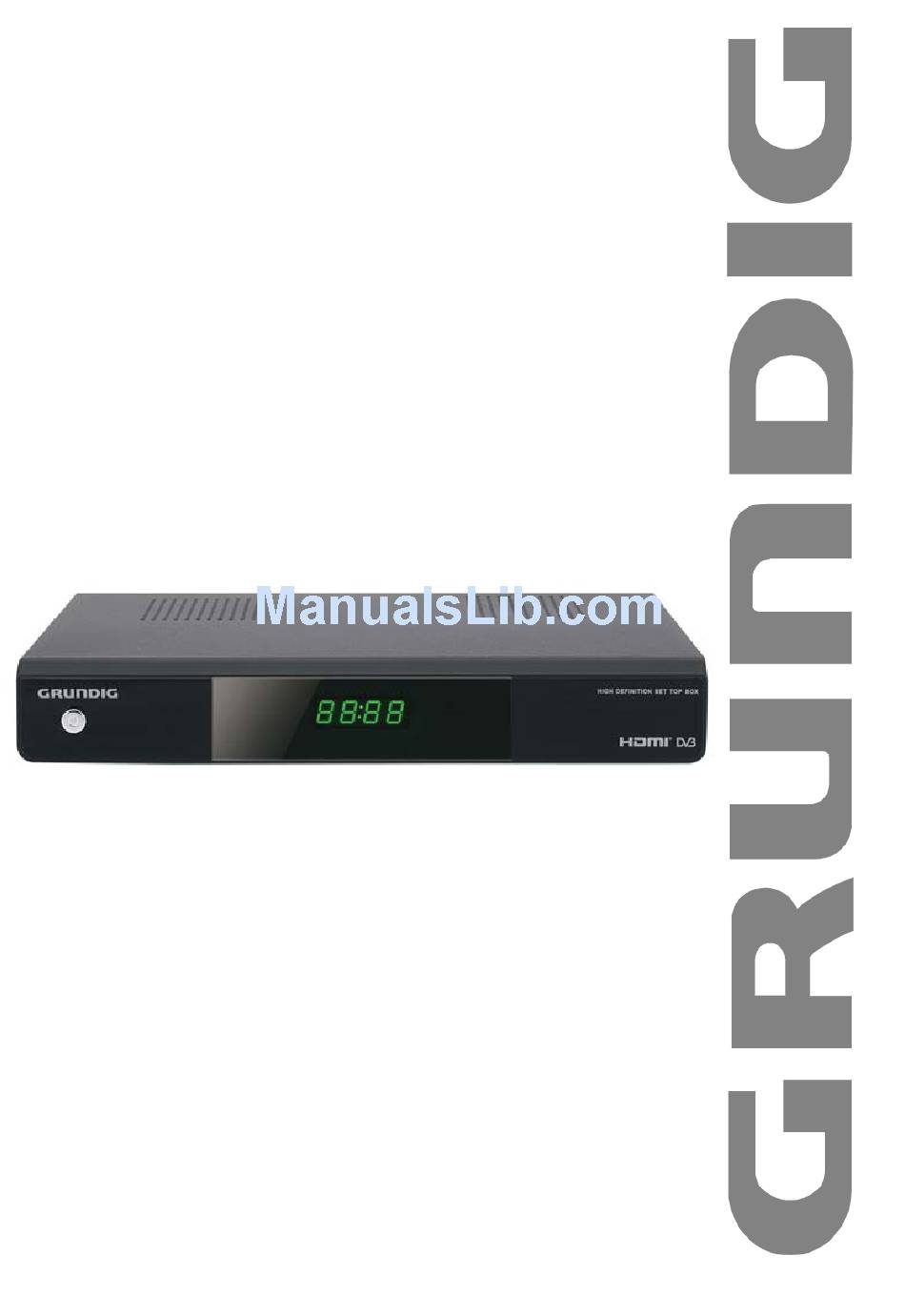

- Page 1 HIGH DEFINTION DIGITAL SET TOP BOX GSTB3105HD The Gold Technical Support Line:1902 215 259 (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
Introduction Thank you for buying this Grundig product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit’s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Table Of Contents Introduction…………………………..………………….………………… … Safety Instructions…………………………………………………………................... About the Set-Top-Box ................. Front Panel and Rear Panel ....................Front Panel ....................Rear Panel ..................Remote Control ................Installing the Batteries ................Connecting to Equipments ................First Time Installation ..................Basic Operations .................... -
Page 4: Safety Instructions
Safety Instructions • Always read the safety instructions carefully • Keep this User's Manual for future reference • Keep this equipment away from humidity • Lay this equipment on a reliable flat surface before setting it up. • Do not stand it on soft furnishings. •... -
Page 5: About The Set-Top-Box
About the Set-Top-Box This DVB-T TV Receiver allows you to access Free-To-Air Digital TV channels and Radio Broadcasts on your TV set. Its digital reception covers VHF & UHF band. Digital TV eliminates noise and interference and offers high quality video and audio. An easy to use on-screen installation guide is provided . -
Page 6: Front Panel And Rear Panel
Front Panel and Rear Panel Front Panel ① POWER To Switch ON/OFF. ② LED Display. Rear Panel ① ANT IN Connect the antenna. ② LOOP OUT Connect a RF signal from the STB to either the RF Input Jack (antenna) on your VCR or to the antenna input from your TV. -
Page 7: Remote Control
Remote Control Remote Key Functions: POWER To turn the Standby mode ON/OFF. Numeric buttons (0-9) To control the numerical operation and to change the Channels. SUBT To switch the close caption ON/OFF. FAV To access and exit the favourite program list. EPG To provide the user with TV programming information . -
Page 8: Installing The Batteries
Installing the Batteries Remove the battery cover from the remote control and put two AA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. Caution: 1. Keep batteries out of children’s reach. 2. -
Page 9: Connecting To Equipments
Connecting to Equipments How to get good reception • In general you are not required to change the existing antenna. However, if your antenna is not in good condition, you should consider replacing them to ensure uninterrupted digital television viewing. •... - Page 10 Connecting to Equipments Connect the STB receiver via YPbPr Output and Audio Output (for High Definition viewing) Connect the STB receiver via Audio Output (for High Definition viewing)
- Page 11 Connecting to Equipments Connect the receiver via HDMI Output (for High Definition viewing) Audio connections via Optical/Coaxial/Mixed Audio L/R Output...
-
Page 12: First Time Installation
First Time Installation Note: Be sure to turn on the main power at the front panel of your receiver before using the receiver. After all the connections have been made properly, switch on your TV. Make sure the receiver is connected to the Main Power and press Power to switch the receiver on. If you are using the receiver for the first time or restored to factory default, a First Time Installation menu will be displayed to guide you through the initial setup. -
Page 13: Basic Operations
Basic Operations Changing Channels 1. Press the NUMERIC keys (0~9) on the remote control to select the channel number you want. 2. Press the ▲▼ key on the remote control or the front panel to change the available channels . 3. - Page 14 Basic Operations TV List Press TV List key to open the program list. Change TV/Radio Mode Press TV/Radio key to change the program list mode between TV and Radio. View Program Info 1. Press INFO key to view the detailed information of current program. 2.
- Page 15 Basic Operations EPG (Electronic Program Guide) where broadcast allows 1. Press EPG key to view the EPG information. 2. Press ▲▼ key to view the event information such as event name and time. Press OK key to view the detailed information of the current event. 4.
-
Page 16: Main Menu
Main Menu This section guides you through all of the options on the Menu screen Navigation in the Main Menu 1. Press MENU key to bring up the main menu or return to previous Menu. 2. Press ▲▼ key to move up/down the sub menu. 3. -
Page 17: Menu Tree
Menu Tree... -
Page 18: Installation
Installation Auto Scan 1. Go to Main Menu > Installation. 2. Press BLUE key to auto scan all the channels. 3. Press EXIT key if you want to stop during the auto scan. Manual Scan 1. Go to Main menu > Installation. 2. -
Page 19: Program Edit
Program Edit NOTE: If there is no program stored, you can not access the edit menu. Edit Favourite 1. Go to Main Menu > Program Edit > TV or Radio list. 2. Press YELLOW key to show the favorite list and then press ▲▼... - Page 20 Program Edit Delete Program 1. Go to Main Menu > Program Edit > TV or Radio list. 2. Press RED key to show a list of Edit modes. Press ▲▼ key to select the delete function. 3. Press OK key to enable the delete function. 4.
-
Page 21: System Setup
System Setup A/V Output Settings 1. Go to Main Menu > System Setup > A/V Output Setting. 2. Press ▲▼ key to select the options: Resolution, Screen Aspect, Audio Output. Press◀▶ to select the item you want to set. 3. Press EXIT key to exit all menus or press MENU to return to the previous menu. Resolution supported: 1080i, 720P, 576P . -
Page 22: User Preferences
User Preferences OSD Language Go to Main Menu > User Preferences >OSD Language. Only English is supported for this receiver. OSD Transparency 1. Go to Main Menu > User Preferences >OSD Transparency. 2. Press ▲▼ key to select the OSD Transparency option. -
Page 23: Parental Control
User Preferences Parental Control 1. Go to Main Menu > User Preferences >Parental Control. 2. Press ▲▼ key to select the Parental Control option. Press OK key and input the correct PIN code to enter the submenu. 1. Parental Rating To set the rating level. -
Page 24: Troubleshooting
Troubleshooting If you experience problems with this receiver or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problem Possible Cause What To Do Display on front panel not Main lead unplugged Check mains lead Main fuse blown... -
Page 25: Technical Specifications
Technical specifications Item Specification Frequency VHF: 162MHz to 400MHz Tuner Range UHF: 448MHz to 858MHz Input Impedance 75Ohms unbalanced Signal Input -78~-25dbm Level Bandwidth 7/8 MHz Demodulator COFDM Demodulation OFDM 2K, 8K FFT, SFN and MFN Modulation Packed Carries 2K/8K Guard Interval 1/4, 1/8, 1/16, 1/32 RF IN... -
Page 26: Warranty
● The manufacturer disclaims any liability for incidental or consequential damaged This warranty is in addition to, and does not diminish, your statutory or legal rights. PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au Grundig Warranty: 1800 509 394 Australia Grundig Warranty: 0800 450 259 New Zealand... - Page 28 PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au...
