High definition digital set top box

Advertisement

Quick Links

High Definition
Digital Set Top Box
GSTB3103HD
The Gold Technical Support Line: 1902 215 259
Personal Product Support
(Charges will apply at $2.95 per minute)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSTB3103HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grundig GSTB3103HD

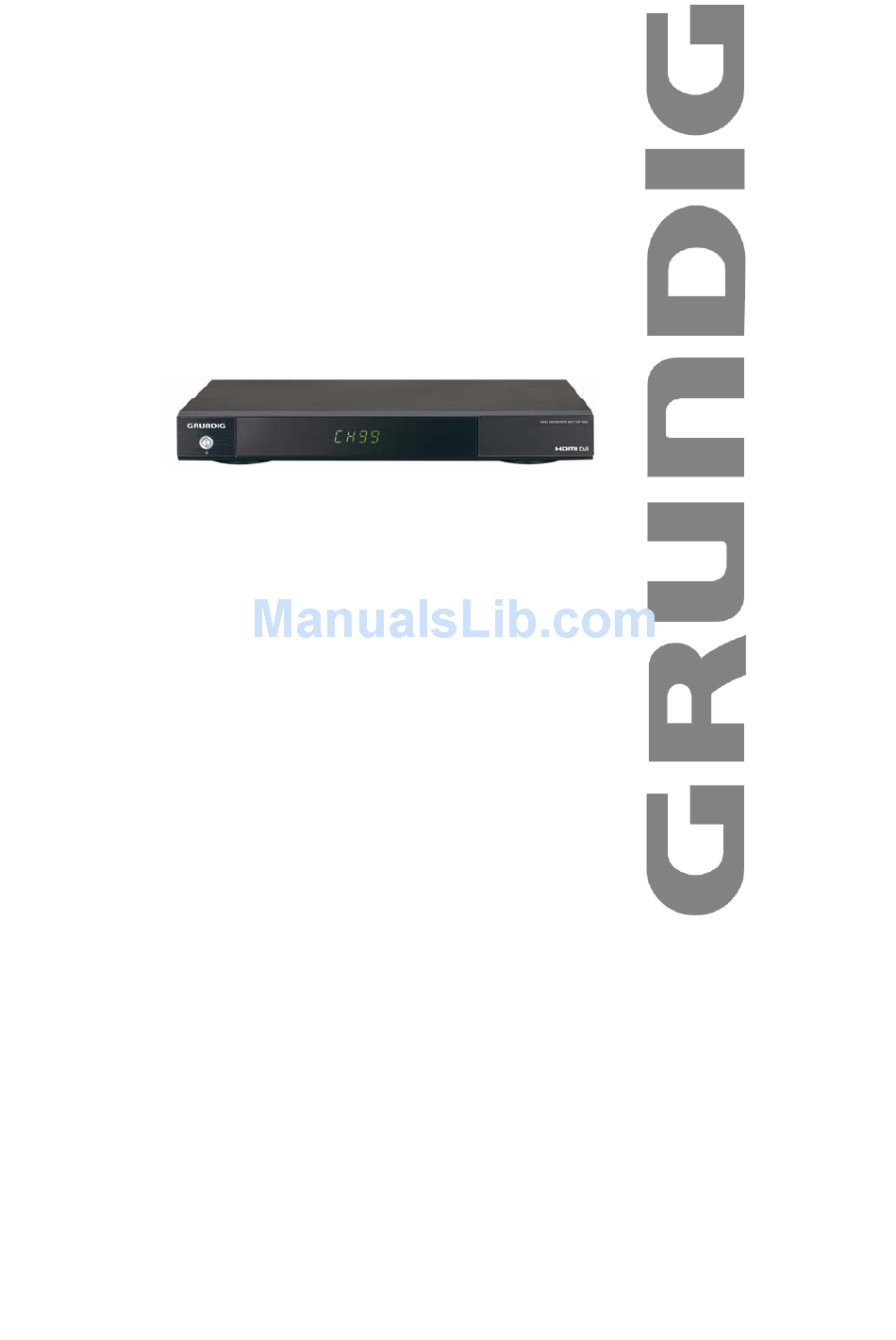

  • Page 1 High Definition Digital Set Top Box GSTB3103HD The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
  • Page 2: Introduction

    Introduction Thank you for buying this Grundig product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarize you with the unit’s many features and to ensure you get the very best from your purchase.
  • Page 3: Table Of Contents

    Table Of Contents Introduction…………………………………………………………….……..1 Safety instructions………………………………………………………….. 3 About the Set-Top-Box………………………………………………………4 Front panel and rear panel illustration………………………………..…5 Front Panel……………………………………………………………………5 Rear Panel……………………………………………………………..……5 Remote control……………………………………………………………….6 Installing the batteries…………………………………………………………7 Connecting to equipments………………………………………….………..8 First time installation…………………………………………….………..11 Basic operations…………………………………………………….……..12 Main menu…………..………………………………………………….……..15 Menu Tree………..……..……………………………………………….……16 Installation…………………………………………………………………..17 Auto Scan…………………………………………………………………..17 Manual Scan………………………………………………………..……….17 Program edit…………..……………………………………………..……..19 System setup………………………………………………………….…….20...
  • Page 4: Safety Instructions

    Safety Instructions • Always read the safety instructions carefully. • Keep this User's Manual for future reference. • Keep this equipment away from humidity. • Lay this equipment on a reliable flat surface before setting it up. • Do not stand it on soft furnishings. •...
  • Page 5: About The Set-Top-Box

    About the Set Top Box This DVB-T TV Receiver is a Free-To-Air digital terrestrial receiver, allowing you to access all free-to-air digital terrestrial TV channels and radio broadcasts on your TV set. Its digital reception covers VHF & UHF band. Compared with the analog TV programs, digital TV programs eliminate the noise and interference but offer high quality video and audio.
  • Page 6: Front Panel And Rear Panel Illustration

    Front panel and rear panel illustration Front Panel ① ① POWER To turn the Stand-by mode ON/OFF. Rear Panel ① ANT IN To connect the antenna here. ② LOOP OUT To connect a RF signal from the STB to either the RF Input jack (antenna) on your VCR or to the antenna input of your TV.
  • Page 7: Remote Control

    Remote control POWER To turn the Stand-by mode ON/OFF. Numeric buttons (0-9) To select a channel by direct number input. SUBT To switch the close caption ON/OFF. FAV To access and exit the favourite program list. EPG To provide the user with TV programming information.
  • Page 8: Installing The Batteries

    Installing the batteries Remove the battery cover from the remote control and put two AA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. Caution: 1. Keep batteries out of children’s reach. 2.
  • Page 9: Connecting To Equipments

    Connecting to equipments How to get good reception • In general you are not required to change the existing antenna. However if your antenna is not in good condition you should consider replacing them to ensure uninterrupted digital television viewing. •...
  • Page 10 Connecting to equipments Connect the STB receiver via YPbPr output and Audio output (for high definition viewing) Connect the STB receiver via VGA output and Audio output (for high definition viewing)
  • Page 11 Connecting to equipments Connect the receiver via HDMI output (for high definition viewing) Audio connections via Optical/Coaxial/Mixed Audio L/R Output...
  • Page 12: First Time Installation

    First time installation Note: Be sure to turn on the main power at the rear of your receiver before using the receiver. After all the connections have been made properly, switch on your TV. Make sure the receiver is connected to the mains and press Power to switch the receiver on. If you are using the receiver for the first time or restored to factory default, a First Time Installation menu will be displayed to guide you through the initial setup to set the time zone, the daylight saving, the TV screen type and scan channels.
  • Page 13: Basic Operations

    Basic operations Switch program 1. Press the NUMERIC keys (0~9) on the remote control to select the channel number you want. 2. Press the ▲▼ key on the remote control or the front panel to change the available channels upward/downward. 3.
  • Page 14 Basic operations Change video output mode Press OUTPUT key to select the matched video monitor between YPbPr and VGA. Change TV/Radio mode Press TV/Radio key to change the program list mode between TV and Radio. View program info 1. Press INFO key to view the detailed information of current program. 2.
  • Page 15 Basic operations EPG (Electric Program Guide) 1. Press EPG key to view the EPG information that are provided by the content providers. 2. Press ▲▼ key to view the event information such as event name, event time. Press OK key to view the detailed information of the current event. 4.
  • Page 16: Main Menu

    Main menu This section guides you to walk through of all options on the Menu screen. Navigation in the main menu 1. Press MENU key to bring up the main menu or return previous. 2. Press ▲▼ key to move upward/down to the desired sub menu. 3.
  • Page 17: Menu Tree

    Main menu Menu Tree Installation Scan selected channels Auto scan Program Edit Edit FAV Browse Lock Skip Delete Rename Move System Setup A/V setting Local time setting System information Factory default User Preference OSD Language OSD Transparency CH info bar time out Volume bar time out Parental control...
  • Page 18 Installation Auto Scan 1. Go to Main menu > Installation. 2. Press BLUE key to auto scan all the channels. 3. Press EXIT key if you want to stop during the auto scan. Manual Scan 1. Go to Main menu > Installation. 2.
  • Page 19 Program edit NOTE: If there is no program stored, you can not access the edit menu. Edit Favourite 1. Go to Main menu > Program edit > TV or Radio list. 2. Press YELLOW key to show the favorite list and then press ▲▼...
  • Page 20 Program edit Delete Program 1. Go to Main menu > Program edit > TV or Radio list. 2. Press RED key to show a list of Edit modes. Press ▲▼ key to select the delete item. 3. Press OK key to enable the delete function. 4.
  • Page 21 System setup A/V Output Settings 1. Go to Main menu > System setup > A/V output setting. 2. Press ▲▼ key to select the options: Resolution, Video output, Screen aspect, Audio output. And press OK to enter submenu of selected option. 3.
  • Page 22: User Preferences

    User preferences OSD Language Go to Main menu > User preferences >OSD language. Only English is supported for this receiver. OSD Transparency 1. Go to Main menu > User preferences >OSD Transparency. 2. Press ▲▼ key to select the OSD Transparency option, and press OK key to enter submenu.
  • Page 23: Parental Control

    User preferences Parental Control 1. Go to Main menu > User preferences >Parental control. 2. Press ▲▼ key to select the Parental Control option, and press OK key and input the correct the PIN code to enter the submenu. 1. Parental Rating To set the rating level.
  • Page 24: Trouble Shooting

    Trouble shooting If you experience problems with this receiver or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problem Possible cause What to do Display on front panel not Main lead unplugged Check mains lead Main fuse blown...
  • Page 25: Technical Specifications

    Technical specifications Item Specification Frequency Range VHF: 174MHz to 230MHz Tuner UHF: 470MHz to 862MHz Input Impedance 75Ohms unbalanced Signal Input Level -78~-25dbm Bandwidth 7MHz Demodulator COFDM Demodulation OFDM Modulation 2K, 8K FFT, SFN and MFN Packed Carries 2K/8K Guard Interval 1/4, 1/8, 1/16, 1/32 RF IN IEC 169-2 female connector...
  • Page 26: Warranty

    ● The manufacturer disclaims any liability for incidental or consequential damaged. This warranty is in addition to, and does not diminish, your statutory or legal rights. PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au Grundig Warranty: 1800 509 394 Australia Grundig Warranty: 0800 450 259 New Zealand...
  • Page 28 PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au ver.1 14-APR-2008...
