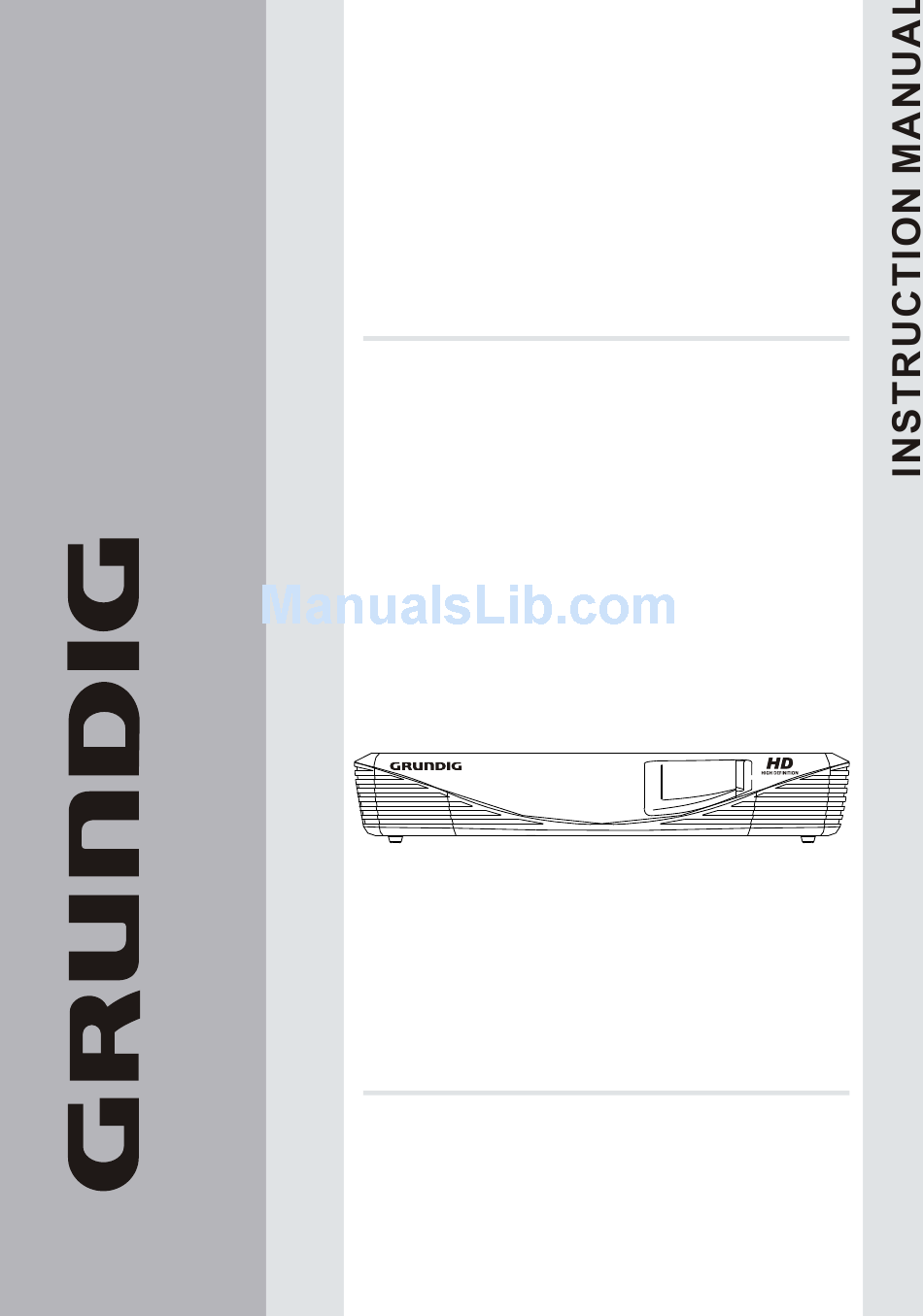

Page 1

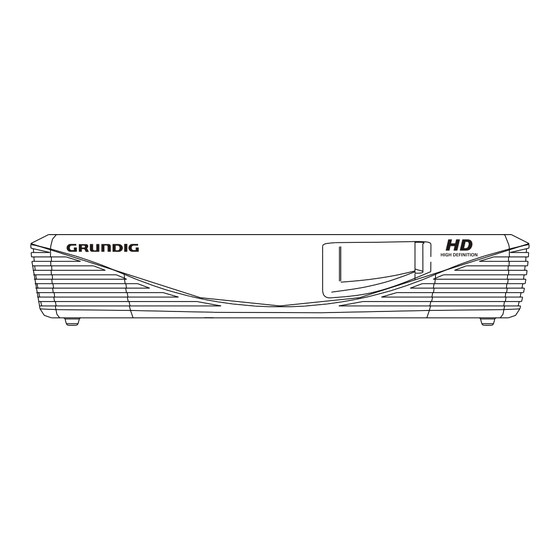

High Definition Digital Set Top Box GSTB3106HD Toll Free Warranty and Service: 1800 509 394 The Gold Technical Support Line: 1902 215 259 (Charges will apply at $2.95 per minute for gold technical support only)
Page 2
Please note there are no user serviceable parts in this unit. Do not remove the cover or back for any reason. Refer all servicing to qualified Grundig Service agent. Do not expose the unit to rain or moisture, to prevent fire or electric shock hazards.
Page 3
Introduction Thank you for buying this Grundig product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s m any features and to ensure you get the very best from your purchase.
Page 4
About the Set Top Box This Set Top Box Receiver allows you to access Digital TV Channels and Radio Broadcasts on your TV set. Its digital reception covers VHF & UHF band. Digital TV eliminates noise and interf erence and offers high quality video and audio. An easy to use on-screen installation guide is provided.
Table of Contents Front and Rear Panel ..................5 Remote Control....................6 Connections....................8 First Time Installation..................9 Troubleshooting.....................16 Technical Specifications.................17 Warranty......................18...
Front and Rear Panel 1. Front panel 1. STANDBY INDICATOR: Displays when the unit is in Power mode and Standby mode. The indicator will show as green when the unit is on and red when in standby. 2. REMOTE CONTROL SENSOR: Receives the signal from your remote control. 3.
Remote Control 1. MUTE: Press the Mute Button to cut the sound only. Press again to turn sound on. 2. INFO: Press the Info Button to display the program information. 3. TTX: Press the TTX Button to enter the Teletext Menu. 4.
Page 8
Installing the Batteries Remove the battery cover from the Remote Control and put 2xAAA size batteries inside the compartment. The diagram inside the Battery Compartment shows the correct way to install the batteries. 1.Open the cover 2.Install batteries 3.Close the cover Using the Remote Control To use the Remote Control, point it towards the front of the Digital Set Top Box.
Connections Caution: Make sure to check the voltage specification of the wall outlet is the same rating with the receiver. To prevent the risk of electric shock, do not open the cover or the back of the receiver. TV Aerial VIDEO IN YELLOW (Audio)
First Time Installation After all connections have been made properly and power is connected, switch on the TV and the Set Top Box. When using the receiver for the first time or after you have conducted a restore to Factory Default the Installation Guide will appear on your TV screen.
Page 11
Setting Favourite Programs The Favourite function in the program settings allows you to create a shortlist of favourite programs that you can easily access. To set a TV program or radio station to your favourites list, please follow the below: 1.
Page 12
Picture Setting To access the Picture Menu, press Menu Button then select the [Picture] sub-menu. The Picture menu allows you to adjust the picture and video settings. Press the Up/Down Navigate Buttons to select an option and press the Right/Left Navigate Buttons to adjust that setting.
Page 13
Manual Search In the Channel Search Menu you can select Manual Search, which means you can manually select the channels you wish to search for and store in the channel list. You can use this option to add new channels to the channel list with out replacing the whole list.
Page 14
Sleep In the Time Menu you can set the Set Top Box Sleep Time. If the Sleep Time is on the Set Top Box will turn off after the set number of hours. When the Set Top Box has been on for the set number of hours a pop up message will tell you that the Set Top Box will now turn to standby.
Page 15
Factory Default In the System Setting Menu you can select the Factory Default option to conduct a settings reset. In the Main Menu, select [Factory Default] and then press OK or Right to select. You will then need to enter your password or the default password '000000' to gain access to this section.
Troubleshooting Problem Potential Reasons What to do No picture Power isn't connected Connect the power Power is not on Switch on the power Ensure Video Cables are No Picture Video Cables not connected connected properly Picture Settings are incorrect Conduct a Factory Reset to clear all Settings Connect the Audio Cables Audio Cables are not...
