Fender Speaker User Manual

FENDER ® ACOUSTASONIC
Your new Acoustasonic™ Ultralight stereo loudspeaker features two 8"
(20.3 cm) Eminence® woofers with neodymium magnets and two 1"
(2.5 cm) soft dome tweeters with neodymium magnets, handling
up to 250 watts of power. Designed to complement the Fender®
Acoustasonic™ Ultralight amplifier, the Ultralight speaker cabinet is
constructed from quality Italian poplar plywood. Please read these
instructions and your amplifier manual before making connections.

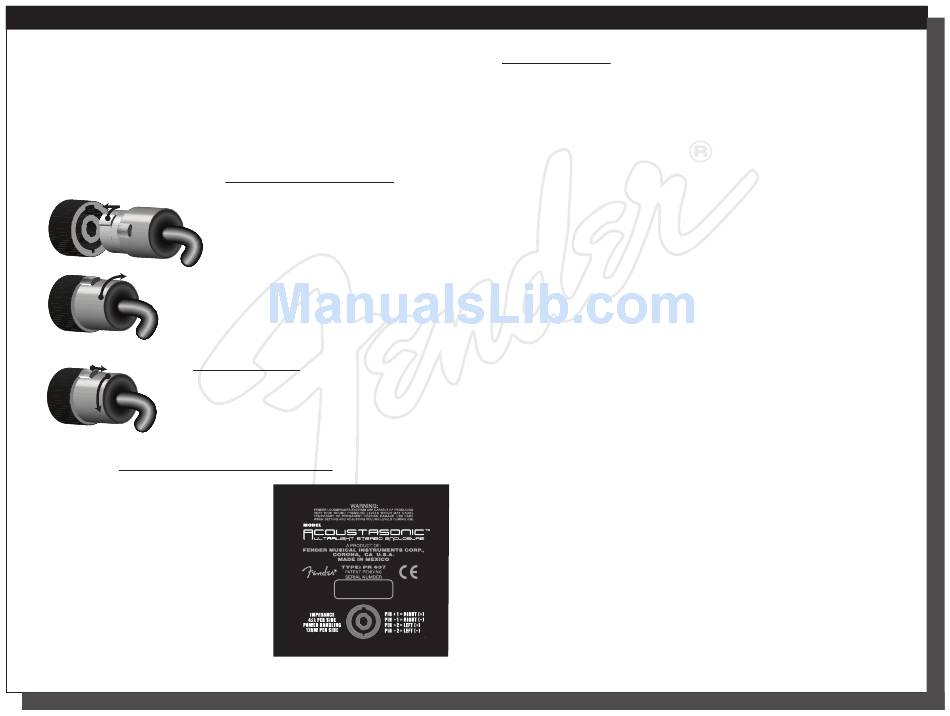

Disconnecting

Slide the locking tab back on the
connector while rotating the connector
counter-clockwise. Pull the connector out
from the input socket.
Non-Speakon® Connections
If your amplifier does not have a
Speakon® speaker output, you will need
the appropriate speaker cable or adapter
to connect the Acoustasonic™ Ultralight
loudspeaker. Speaker cable should be
4-conductor, 18–gauge minimum with
the Speakon® connector wired:
1+ pin = Right [+]
1– pin = Right [–]
2+ pin = Left [+]
2– pin = Left [–]
P/N 069327 REV A
™ ULTRALIGHT STEREO LOUDSPEAKER ENCLOSURE

Ultralight Connections

To connect the Acoustasonic™
Ultralight speaker to an Ultralight
amplifier, use the Speakon® cable
included with the amplifier. Rotate
the Speakon® connector to align it
with the input slots, then fully insert
the connector.
Rotate the connector clockwise until it
locks into place.

SPECIFICATIONS

PART NUMBER 2271700000
SPEAKERS Two 8" (20.3 cm) drivers with 2" (5.1 cm) voice coils
and Neodymium magnets;
Two 1" (2.5 cm) soft dome tweeters
with Neodymium magnets
CROSSOVER 3kHz, 12dB/octave low-pass filter, 18dB/octave high-pass
filter, using metallized polyester film capacitors and
low loss inductors
CABINET 5/8" (1.6 cm) Italian poplar plywood
SENSITIVITY 91 dB, 1 watt - 1 meter
POWER HANDLING 125 watts per side
IMPEDANCE 4 ohms per side
CONNECTIONS 4-Pole Speakon® connector
ENCLOSURE VOLUME V = 0.43 ft
B
DIMENSIONS
Height: 15 in (38.1 cm)
Width: 20.25 in (51.4 cm)
Depth: 10 in (25.4 cm)
WEIGHT 22 lb (10.0 kg)
Product specifications are subject to change without notice.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORPORATION
CORONA, CALIFORNIA USA
Fender ® and Acoustasonic™ are trademarks of FMIC.
Other trademarks are property of their respective owners.
© 2005 FMIC. All rights reserved.
3 (12 L) per side
