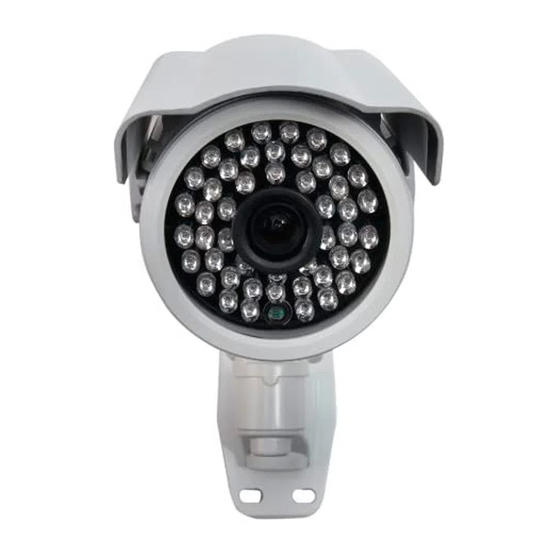

- Page 1 User Manual EFFIO-E CAMERAS High-Resolution Security Cameras...
-
Page 2: About This Manual
Thank You for Choosing a Q-See Product! This manual is written for the Q-See’s line of high-resolution cameras using Sony’s EFFIO-E image processor and was accurate at the time it was completed. However, because of our ongoing effort to constantly improve our products, additional features and functions All of our products are backed by a conditional service warranty covering all hardware for 12 months from the date of purchase. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION For your safety INTRODUCTION To prevent damage to your Q-See product or injury to yourself or to others, read and understand the following safety precautions in their INSTALLATION entirety before installing or using this equipment. Mounting Your Camera... -
Page 4: Installation
BULLET CAMERAS INSTALLATION STEP 1. At the desired location, use the included mounting template to drill the holes for the mounting screws MOUNTING YOUR CAMERA STEP 2. Insert the plastic expanders into the holes When installing your camera, it is important to select a proper site not only for field of view, but for other considerations as well: STEP 3. -
Page 5: Connecting The Camera To A Security Dvr System
CONNECTING THE CAMERA TO A TV OR MONITOR A single camera can be connected directly to a monitor or TV with an RCA input using the included cable and a separately available CAMERA CONNECTING THE CAMERA TO A SE- adapter if needed. CAMERA TV or MONITOR CURITY DVR SYSTEM... -
Page 6: Operation
LENS OPERATION This turns the auto iris feature on or off. The iris controls the amount of light entering the lens, or exposure. This requires the camera to be equipped with an automatic lens. At present, this option is only available on box-type cameras. With such a lens attached, you The On Screen Display (OSD) built into your camera allows you to control almost every aspect of how it captures images. -
Page 7: White Balance
WHITE BALANCE There are seven modes available for determining how your camera processes and displays color: ATW - Automatic Tracking White Balance. This is the default the camera constantly analyses and adjusts to create a neutral white balance. Colors may be slightly underexposed but generally accurate. Several settings can be modified, but the most significant is the Environment setting which adjusts the white balance based on the light source. -
Page 8: Motion Detection
This allows you to set the camera to switch automatically from day to night mode (the default) or to permanently set it to Color or B/W Unlike most security cameras, your camera is capable of detecting motion by itself. If you are connecting your camera to a Q-See operation. -
Page 9: Camera Id
CAMERA ID TROUBLESHOOTING You can enter an identifying name for your camera that will appear over the video image if you so choose. This will appear in addition to any similar identification made using a DVR. You can enter two lines of text with up to 26 characters each. Currently, only one such identification field - CHR1 - is supported. -
Page 10: Q-See Product Warranty
