- Page 1 POWERED MIXERS From Fender Pro Audio Owner's Manual for SRM 6302 / 8302 P/N 050804 REV A...
- Page 2 Whether you need a simple box top powered mixer for your Saturday afternoon jam, or a professional full-size concert system, Fender has the sound reinforcement equipment to meet your needs. Likewise, your decision to purchase Fender pro audio gear is one you will appreciate with each performance for years to come.

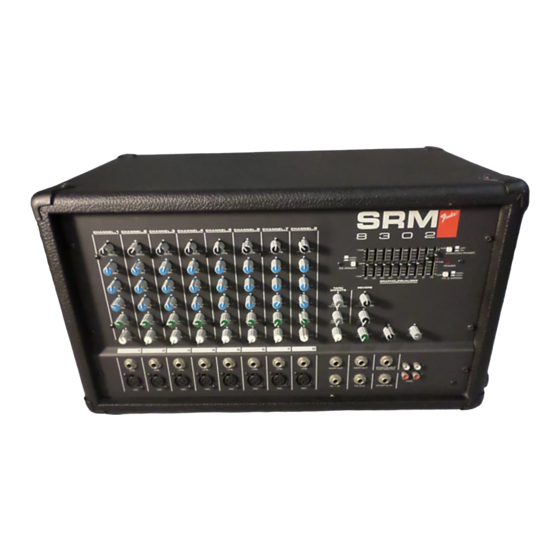

- Page 3 / 8302 MIXER MIXER The SRM 6302 / 8302: a dual 150 watt professional powered mixer from your friends at Fender Audio. We are sure you will find your new SRM 6302 / 8302 to be both a unique and effective sound reinforcement product, providing years of trouble-free service.
- Page 4 MAIN OUT PA 1 IN I. MAIN OUT - This 1/4 inch, TS, unbalanced, line level output is designed to feed the SRM 6302 / 8302’s main bus signal to an external power amplifier or main house mixer. J. PA 1 IN - This 1/4 inch, TS, unbalanced, line level input jack allows the SRM 6302 / 8302’s power...
- Page 5 0, the output is “dry”. K. MONITOR - The monitor output volume control of the SRM 6302 / 8302. Any adjustments to this control will affect the signal level at the Mon Out, as well as, PA1 and PA2 depending upon the PA2 Assign switch position and patch bay configuration.
- Page 6 Turns the AC power ON and OFF. When the switch is in the OFF position, the SRM 6302 / 8302 is completely shut down. P. TAPE OUT - Unbalanced phono (RCA) output jacks designed for use with a tape recorder. They produce a mono signal.
- Page 7 Third, most speaker cabinets are already wired for parallel connections making parallel connections the most common wiring method. When using your SRM 6302 / 8302, be sure that the minimum load connected to each channel is 4 ohms. Below are two charts demonstrating how to calculate both parallel and series impedance.
- Page 8 OFF the SRM 6302 / 8302 first then any additional outboard gear, instruments or other equipment. For more detail on setting up your SRM 6302 / 8302, please refer to the diagrams on pages 10 thru 13. Before using the SRM 6302 / 8302,...
-
Page 9: Troubleshooting
• Is there power at the outlet? • (If applicable) does your instrument have power? • Are the volume control knobs on the SRM 6302 / 8302 turned above the 0 position? • Are the volume control knobs on your instruments turned above their minimum position? •... - Page 10 The Monitor control in the master section adjusts the volume level to the monitor speakers. 4. Be sure to turn the tape deck, keyboard or other instruments and gear on first, then the SRM 6302 / 8302.
- Page 11 RUNNING AN EFFECTS PROCESSOR THRU YOUR SRM 6302 / 8302 1. Connect speakers, microphones and other equipment to the SRM 6302 / 8302 as before. 2. Next, connect a cord from the Effects Out/Footswitch jack to the input of the effects processing unit.
- Page 12 PA 2 Out jacks. 2. The Monitor control in the master section adjusts the signal level to the monitor power amp. 3. Be sure to turn the tape deck, keyboard or other instruments and gear on first, then the SRM 6302 / 8302.
- Page 13 SRM WITH AN EXTERNAL POWER AMP FOR FRONT OF HOUSE SPEAKERS 1. Connect a cord from the Main Out jack to an external power amp. Be sure one monitor enclosure is connected to a PA 1 Out jack and the other is connected to a PA 2 Out jack.
- Page 14 SRM 6302 / 8302 SIGNAL FLOW DIAGRAM Typical signal path for each channel INPUTS LINE TAPE / EFFECTS EFFECTS IN TAPE IN MAIN MONITOR EFFECTS +48 VDC PHANTOM POWER SWITCH TO PHANTOM BUS LEVEL CHANNEL EQ HIGH MONITOR RETURN TO MAIN...
- Page 15 SPECIFICATIONS FOR THE SRM 6302 DESIGNATION TYPE PART NUMBER POWER SPECIFICATIONS PRE-AMPLIFIER SECTION MIC INPUT IMPEDANCE LINE INPUT IMPEDANCE MIC INPUT SENSITIVITY LINE INPUT SENSITIVITY CHANNEL TONE CONTROLS Low +/- 15 dB @ 30 Hz GRAPHIC EQUALIZER OVERALL AMPLIFIER FREQUENCY RESPONSE...
- Page 16 20 dB Height: 12 in Width: 21 in Depth: 11.75 in Weight: 36 lbs A PRODUCT OF: FENDER MUSICAL INSTRUMENTS CORP. CORONA, CA 91720 USA THIS EQUIPMENT CONFORMS TO THE FOLLOWING DIRECTIVES : EMC 89/336/EEC AND LV 73/23/EEC 30.5 cm 53.3 cm...
