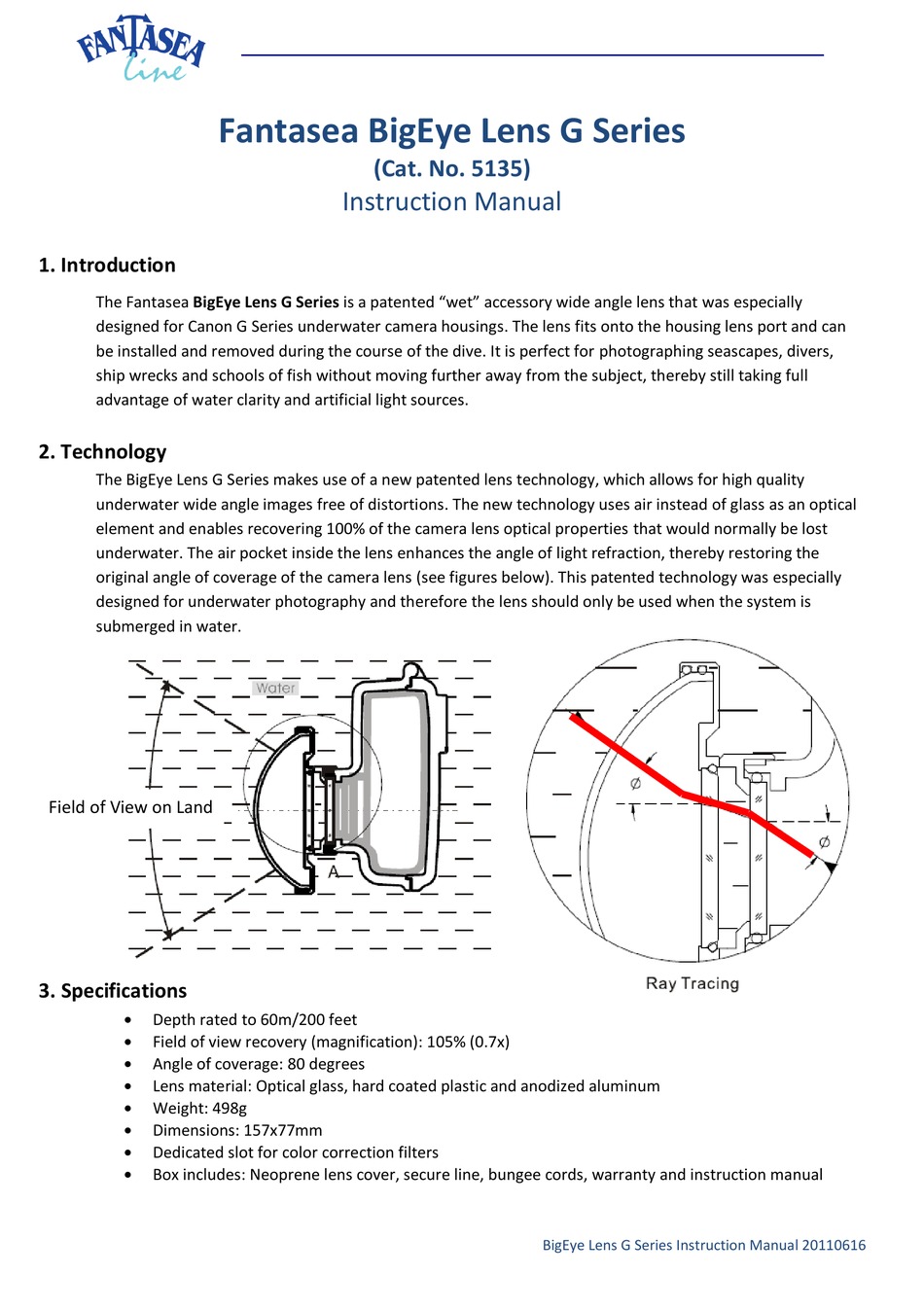

1. Introduction
The Fantasea BigEye Lens G Series is a patented "wet" accessory wide angle lens that was especially
designed for Canon G Series underwater camera housings. The lens fits onto the housing lens port and can
be installed and removed during the course of the dive. It is perfect for photographing seascapes, divers,
ship wrecks and schools of fish without moving further away from the subject, thereby still taking full
advantage of water clarity and artificial light sources.
2. Technology
The BigEye Lens G Series makes use of a new patented lens technology, which allows for high quality
underwater wide angle images free of distortions. The new technology uses air instead of glass as an optical
element and enables recovering 100% of the camera lens optical properties that would normally be lost
underwater. The air pocket inside the lens enhances the angle of light refraction, thereby restoring the
original angle of coverage of the camera lens (see figures below). This patented technology was especially
designed for underwater photography and therefore the lens should only be used when the system is
submerged in water.
Field of View on Land
3. Specifications
Depth rated to 60m/200 feet
Field of view recovery (magnification): 105% (0.7x)
Angle of coverage: 80 degrees
Lens material: Optical glass, hard coated plastic and anodized aluminum
Weight: 498g
Dimensions: 157x77mm
Dedicated slot for color correction filters
Box includes: Neoprene lens cover, secure line, bungee cords, warranty and instruction manual
1
Fantasea BigEye Lens G Series
(Cat. No. 5135)
Instruction Manual
BigEye Lens G Series Instruction Manual 20110616
Advertisement
Related Manuals for Fantasea BigEye Lens G Series
Summary of Contents for Fantasea BigEye Lens G Series
-
Page 1: Specifications
Instruction Manual 1. Introduction The Fantasea BigEye Lens G Series is a patented “wet” accessory wide angle lens that was especially designed for Canon G Series underwater camera housings. The lens fits onto the housing lens port and can be installed and removed during the course of the dive. It is perfect for photographing seascapes, divers, ship wrecks and schools of fish without moving further away from the subject, thereby still taking full advantage of water clarity and artificial light sources. - Page 2 (image #1). c. Place the lens over the housing lens port and follow by securing the four bungee cords to the four corresponding housing secure line loops (image #2). Image #1 Image #2 BigEye Lens G Series Instruction Manual 20110616...
- Page 3 (so the light doesn't reflect on the BigEye Lens). If you choose to position the strobe behind the camera housing, make sure it's not pointed directly BigEye Lens G Series Instruction Manual 20110616...
- Page 4 Hold the BigEye Lens so that the dome is pointed downwards, the adaptor side Image #3 is facing up and the “TOP” marking is pointed away from your body (image #3). BigEye Lens G Series Instruction Manual 20110616...
-
Page 5: Care And Maintenance
When storing the lens and during transportation, make sure that it is properly protected by using the Neoprene lens cover and a padded bag in order to prevent scratches, cracks or any other damage to the lens. BigEye Lens G Series Instruction Manual 20110616... -
Page 6: Fantasea Product Consumer Limited Warranty
ONE (1) YEAR, (two years, where required by law as determined by the origin of the authorized dealer). This warranty is effective from the date of retail purchase from Fantasea or an authorized Fantasea dealer, by the original end-user purchaser (“Warranty Period”). This warranty does not cover any commercial use of the product.
