1. Introduction
The Fantasea BigEye Lens FP7000 is a patented "wet" accessory wide angle lens that was specially designed
for the Fantasea FP7000 underwater camera housing (for Nikon Coolpix P7000). The lens fits onto the
housing lens port and can be installed and removed during the course of the dive. It is perfect for
photographing seascapes, divers, ship wrecks and schools of fish without moving further away from the
subject, thereby still taking full advantage of water clarity and artificial light sources.
2. Technology
The BigEye Lens FP7000 makes use of a new patented lens technology, which allows for high quality
underwater wide angle images free of distortions. The new technology uses air instead of glass as an optical
element and enables recovering 100% of the camera lens optical properties that would normally be lost
underwater. The air pocket inside the lens enhances the angle of light refraction, thereby restoring the
original angle of coverage of the camera lens (see figures below). This patented technology was specially
designed for underwater photography and therefore the lens should only be used when the system is
submerged in water.
Field of View on Land
3. Specifications
Depth rated to 60m/200 feet
Field of view recovery (magnification): 105% (X0.7)
Angle of coverage: 80 degrees
Lens material: Optical glass, hard coated plastic and anodized aluminum
Weight: 498g
Dimensions: 157x77mm
Dedicated slot for color correction filters
Box includes: Neoprene lens cover, secure line, warranty and instruction manual
1

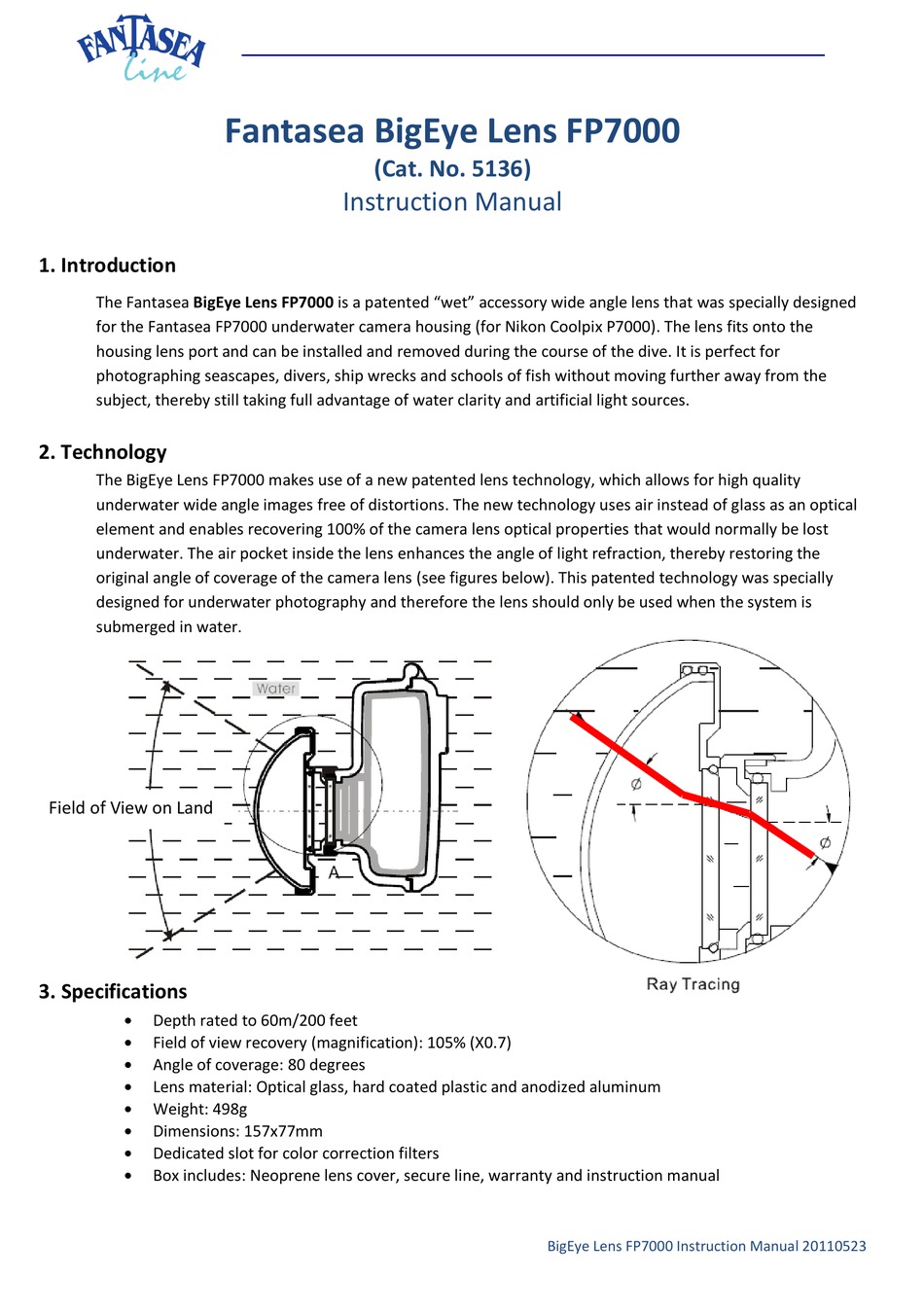

Fantasea BigEye Lens FP7000
(Cat. No. 5136)
Instruction Manual
BigEye Lens FP7000 Instruction Manual 20110523
Advertisement
Table of Contents
Related Manuals for Fantasea BigEye FP7000
Summary of Contents for Fantasea BigEye FP7000
-
Page 1: Specifications
Instruction Manual 1. Introduction The Fantasea BigEye Lens FP7000 is a patented “wet” accessory wide angle lens that was specially designed for the Fantasea FP7000 underwater camera housing (for Nikon Coolpix P7000). The lens fits onto the housing lens port and can be installed and removed during the course of the dive. It is perfect for photographing seascapes, divers, ship wrecks and schools of fish without moving further away from the subject, thereby still taking full advantage of water clarity and artificial light sources. - Page 2 4. Instructions for Use Installing the BigEye Lens on the FP7000 Housing Lens Port a. Please use the utmost care and do not use excessive force when assembling and disassembling the lens, in order to not cause any damage to the product. b.
- Page 3 Flex or Ball & Joint arm and enables safely securing FP7000 Housing lens accessories during the dive, making them easily available for future use. For further information, please visit our website at www.fantasea.com/FantaseaEyes BigEye Lens FP7000 Instruction Manual 20110523...
- Page 4 Installing Color Correction Inserts inside the BigEye Lens a. Color correction inserts can be installed inside the BigEye Lens FP7000 for the purpose of producing underwater wide angle vivid and colorful images or videos. A dedicated slot was designed in order to allow for easy installation of red or pink color correction inserts, which restore the colors absorbed by water.
- Page 5 encounter any resistance, the right side of the color insert is probably not installed all the way in. Reinstall the right side of the color insert and proceed with the left side of it. Mount the BigEye Lens with color insert installed inside on the housing lens port. Make sure the secure string of the color insert is positioned between the corresponding teeth of the BigEye Lens adaptor, so it doesn’t interfere with proper installation of the lens (image #7).
- Page 6 ONE (1) YEAR, (two years, where required by law as determined by the origin of the authorized dealer). This warranty is effective from the date of retail purchase from Fantasea or an authorized Fantasea dealer, by the original end-user purchaser (“Warranty Period”). This warranty does not cover any commercial use of the product.
