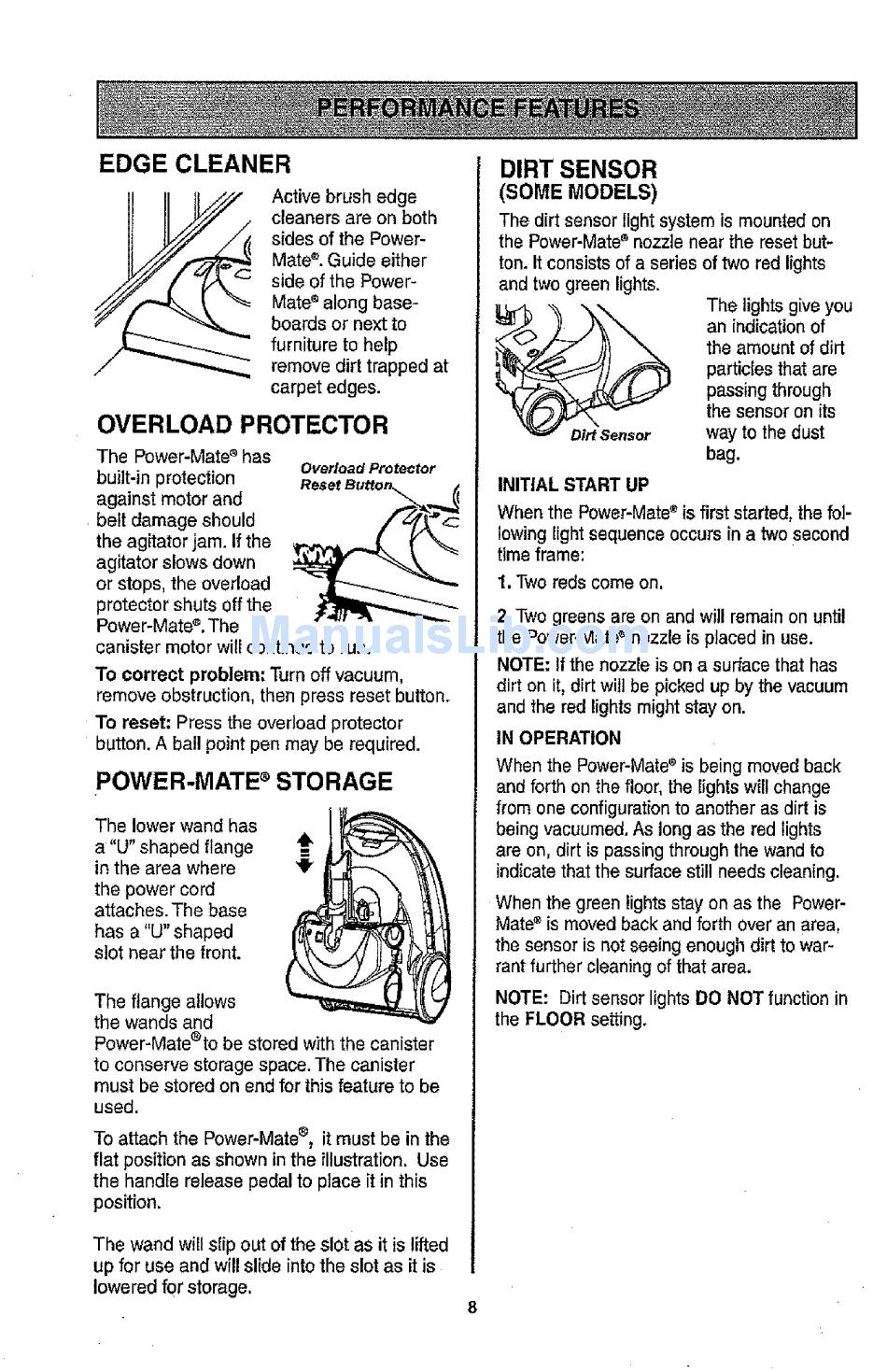

Performance Features; Edge Cleaner; Dirt Sensor; Power-Mate ® Care - Kenmore Power-Mate KC50XBZRZU01 Owner's Manual

EDGE CLEANER
Active brush edge
cleaners are on both
sides of the Power-
Mate® . Guide either
side of the Power-
Mate®along base-
boards or next to
furniture to help
remove dirt trapped at
carpet edges.
OVERLOAD PROTECTOR
The Power-Mate®has
Overload Protector
built-in protection
against motor and
belt damage should
the agitator jam. If the
agitator slows down
or stops, the overload
protector shuts off the
Power-Mate®.The
canister motor will continue to run.
To correct problem; Turn off vacuum,
remove obstruction, then press reset button.
To reset: Press the overload protector
button. A ball pointpen may be required.
POWER-MATE ® STORAGE
The lowerwand has
a"U" shaped flange
in the area where
the power cord
attaches. The base
has a "U" shaped
slot near the front.
The flange allows
the wands and
Power-Mateeto be stored withthe canister
to conserve storage space. The canister
must be stored on end for this feature to be
used.
To attach the Power-Mate® , it must be in the
flat position as shown in the illustration. Use
the handle release pedal to place it in this
position.
The wandwill slip out of the slot as it is lifted
up for use and will slide into the slot as it is
lowered for storage,
DIRT SENSOR
(SOME MODELS)
The dirt sensor light system is mounted on
the Power-Mate ®nozzle near the reset but-
ton. It consists of a series of two red lights
and two green lights.
The lights give you
an indicationof
the amount of dirt
particles that are
passing through
the sensor on its
way to the dust
bag.
INITIAL STARTUP
When the Power-Mate ®isfirst started, the fol-
lowing light sequence occurs in a two second
time frame:
1, Two reds come on,
2. Two greens are on and will remain on until
the Power-Mate ® nozzle is placed in use.
NOTE: If the nozzle is on a surface that has
dirt on it, dirt wilt be picked up by the vacuum
and the red lights might stay on.
IN OPERATION
When the Power-Mate ®is being moved back
and forth on the floor, the lights will change
from one configurationto another as dirt is
being vacuumed,As long as the red lights
are on, dirt is passing through the wand to
indicatethat the surface still needs cleaning.
When the green lightsstay on as the Power-
Mate ®is moved back and forth over an area,
the sensor is not seeing enough dirt to war-
rant further cleaning of that area.
NOTE: Dirt sensor lights DO NOT function in
the FLOOR setting.
