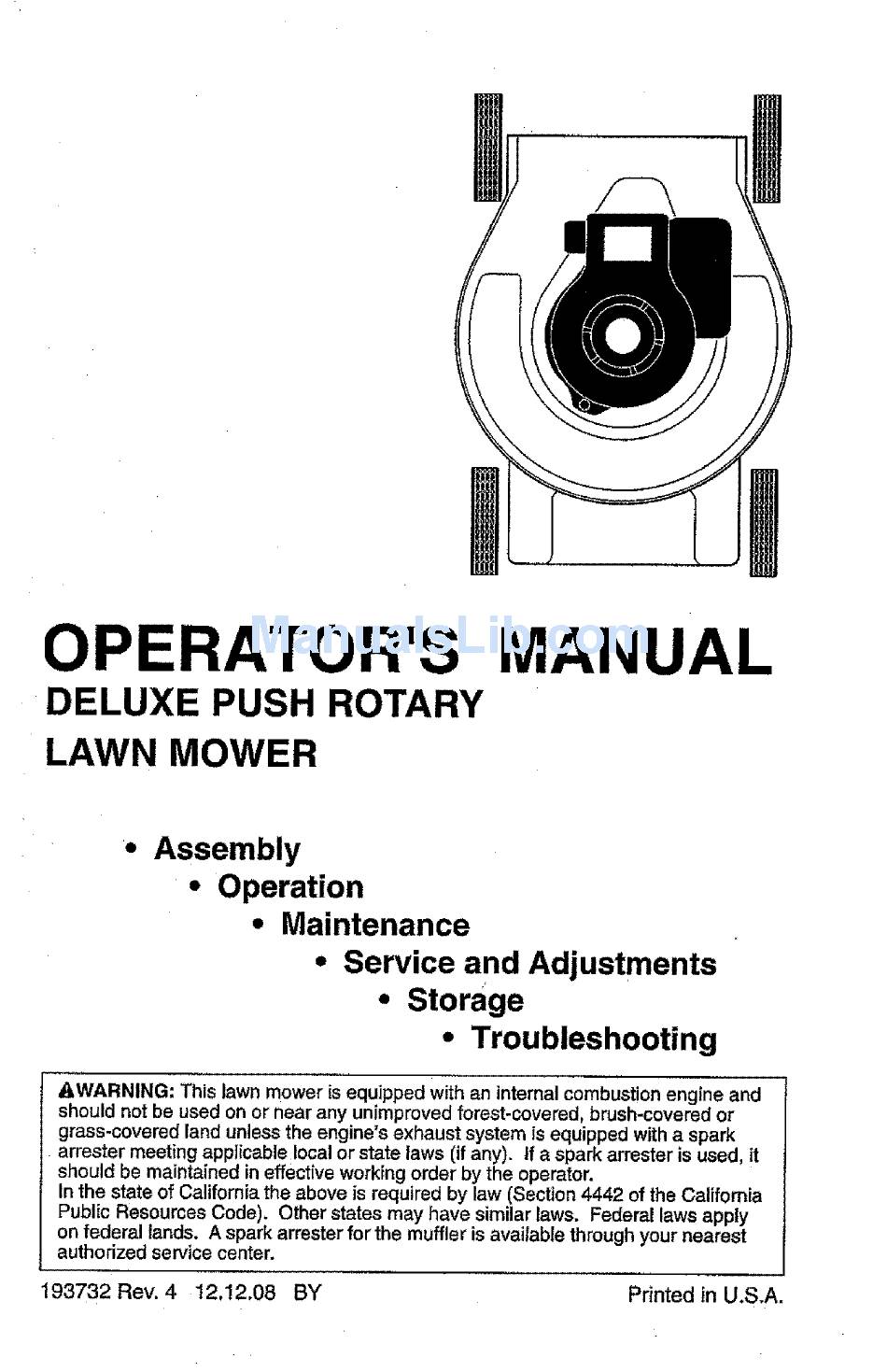

OPERATOR'S
DELUXE PUSH ROTARY
LAWN MOWER
MANUAL
• Assembly
° Operation
• Maintenance
° Service and Adjustments
° Storage
° Troubleshooting
&WARNING: This lawn mower is equipped with an internal combustion engine and
should not be used on or near any unimprovedforest-covered, brush-covered or
grass-covered land unless the engine's exhaust system is equipped with a spark
arrester meeting applicable local or state laws (if any). If a spark arrester is used, it
should be maintained in effective working order by the operator.
In the state of California the above is required by law (Section4442 of the California
Public Resources Code). Other states may have similar laws. Federal laws apply
on federal lands. A spark arrester for the muffler is available throughyour nearest
authorized service center,
193732 Rev. 4 12.12.08 BY
Printed in U.S.A.
