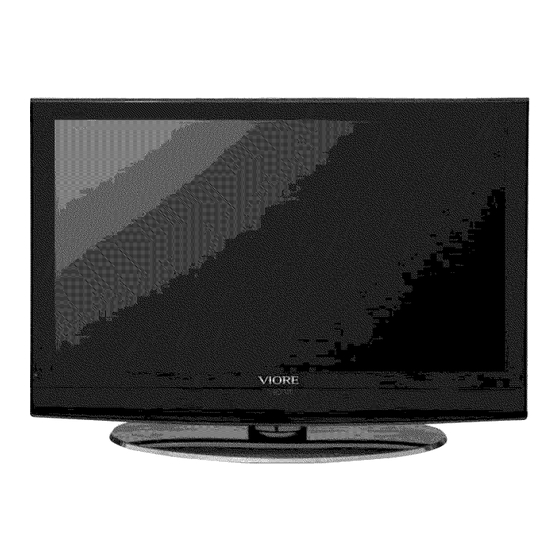

40" 1080p / 120H, Z LCD Television
V40LCF120P
AIR
(TV)/CABLE
MODE
SELECTION
The Air/CABLE
menu option is set to the "CABLE"
(Cable Television)
mode at the factory.
If you want to use an antenna for the built-in TV tuner, this menu option must be set to the
"Air" mode. Please refer to page 16 of the owner's manual for the details of this menu.
Advertisement
Table of Contents
Related Manuals for VIORE V40LCF120P
Summary of Contents for VIORE V40LCF120P
- Page 1 40" 1080p / 120H, Z LCD Television V40LCF120P (TV)/CABLE MODE SELECTION The Air/CABLE menu option is set to the "CABLE" (Cable Television) mode at the factory. If you want to use an antenna for the built-in TV tuner, this menu option must be set to the "Air"...
-
Page 2: Table Of Contents
Contents Contents Caution Safety Information Unit and Accessories Product Feature Introduction 1. Front View 2. Rear View 3. Remote Control Basic Operation 9-10 OSD Menu 11-17 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. Lock menu 6. -
Page 3: Caution
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle... -
Page 4: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor To prevent overload, don't share the same mains supply socket with too many other... -
Page 5: Unit And Accessories
Unit and Accessories and Product Feature Unit and Accessories TV set User's Manual User's manual Remote control Mains cable Batteries: 2xAAA Product Feature ° Integrated ATSC TV tuner for HDTV broadcast reception ° Dual HDMI input for true digital connections °... -
Page 6: Introduction
Introduction Introduction 1. Front View _..L._..___.J Remote Control window (Keep clear) LED Indicator 1. (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press Power Button to turn on and off. Indicator on(Red) Standby mode Power on mode Indicator on(Green) The effective... -
Page 7: Rear View
Introduction 2. Rear View HDMII/2: Connect them to the video output terminal of DVD,(used in HDTV1 mode) PC AUDIO IN: Connect it to the audio output terminal of PC. VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC. -
Page 8: Remote Control
Introduction 3. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. -
Page 9: Introduction
Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don't mix different types or used batteries with new ones. 3. -
Page 10: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power with a mains cable and an adaptor (page9). 2.-To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. -
Page 11: Basic Operation
Basic Operation Basic OSD Menu operation Press MENU button to display the OSD menu as below: Use ( / > button to select the main menu, and press V button to enter the submenu. In the submenu, use A / V button to select the function item, and you could: adjust ("Contrast"... -
Page 12: Osd Menu
OSD Menu OSD Menu 1. Picture menu Picture mode: Select between Standard, Dynamic, Mild, Sports and User. You may select the picture mode directly by pressing the PICTURE button on the remote control. Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture. -
Page 13: Audio Menu
OSD Menu 2. Audio menu Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequencies intensity. Treble: High frequencies intensity. -
Page 14: Time Menu
OSD Menu 3. Time menu Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time: Select between On and Off. Clock: User can not change time manually during DTV mode, for time is from signal source... -
Page 15: Setup Menu
OSD Menu 4. Setup menu Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. -
Page 16: Lock Menu
OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Change password: Change the password, you must enter the new password twice to confirm it. -
Page 17: Channel Menu
OSD Menu 6. Channel menu Air/Cable: Allow you to select antenna between Air and Cable. If you selet "Cable", the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. _"... -
Page 18: Osd Menu
OSD Menu Show/Hide: Allow you to show or hide the channels. Use A / V button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel. -
Page 19: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. -
Page 20: Technical Specifications
Technical Specifications Technical Specifications 40" (measured diagonally) TFT LCD LCD Panel Panel Size 500cd/m 2 Brightness Contrast Ratio 1700:1 BROADCAST SIGNAL SYSTEM NTSC M + ATSC ANTENNA INPUT IMPEDANCE SOUND OUTPUT 8Wx2 Max. Resolution 1920 x 1080 VIDEO Input Connector S-VIDEO YPbPr AUDIO (L/R) - Page 21 Product freight needs to be prepaid by original purchaser and shipped in either its original packaging or packaging affording an equal degree of protection. VIORE shall not be responsible for or obligated to replace damaged goods. If you reside in California and you cannot transport...
- Page 22 VIORE, Inc. 7801 Hayvenhurst Avenue, Van Nuys, California 91406 Printed in China...
