ORET_ __.oo_oo._ ,No o _.. oN
55" 1080p/120Hz
LCD Television
LC55 VFZ61
AIR
(TV)/CABLE
MODE
SELECTION
The Air/CABLE
menu option is set to the "CABLE" (Cable Television)
mode at the factory.
If you want to use an antenna for the built-in TV tuner, this menu option must be set to the
"Air" mode. Please refer to page 11 of the owner's manual for the details of this menu.
Advertisement
Table of Contents
Related Manuals for VIORE LC55 VFZ61
Summary of Contents for VIORE LC55 VFZ61

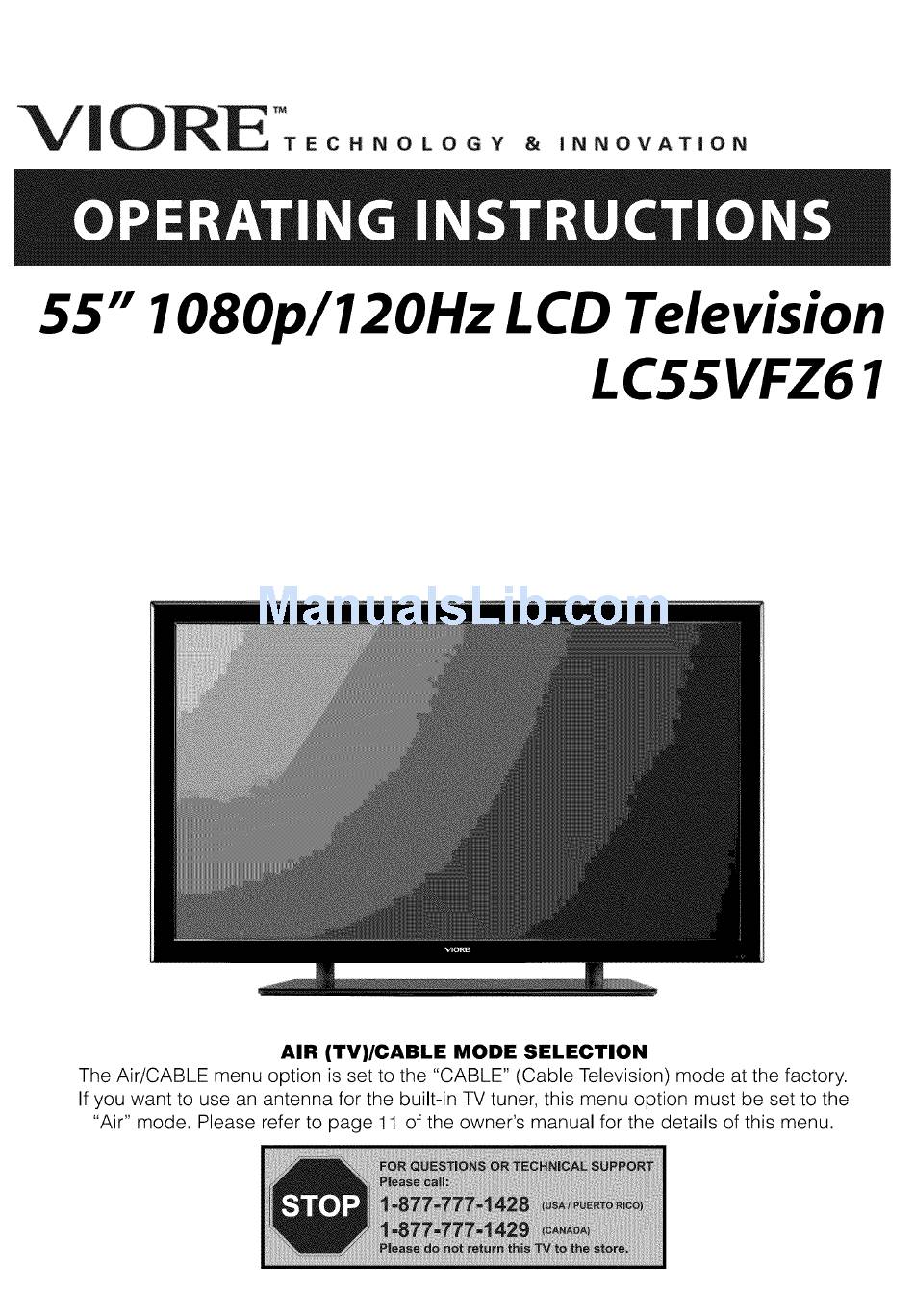

- Page 1 ORET_ __.oo_oo._ ,No o _.. oN 55" 1080p/120Hz LCD Television LC55 VFZ61 (TV)/CABLE MODE SELECTION The Air/CABLE menu option is set to the "CABLE" (Cable Television) mode at the factory. If you want to use an antenna for the built-in TV tuner, this menu option must be set to the...
-
Page 2: Table Of Contents
Product Feature Product Introduction Connections Remote Control Basic Operation OSD Menu 1. Video menu 2. Audio menu 3. TV menu 4. Setup menu 5. Parental menu Simple Troubleshooting Technical Specifications INSTRUCTION FOR WALL MOUNT VIORE Limited Warranty 9-15 9-10 13-15... -
Page 3: Caution
Caution The lightening is intended to alert the user to the presence voltage" within the products to constitute The exclamation user to the presence instructions Correct disposal of this Product (Waste Electrical & Electronic Your product components This symbol means that electrical of-life should be disposed Please dispose of this equipment recycling... -
Page 4: Safety Information
Safety Information To ensure reliable and safe operation instructions in this user guide, especially Electrical safety ° The TV set should only be connected the label on the mains adaptor. ° To prevent overload, don't share the same mains supply socket with too many other items of equipment. -
Page 5: Unit And Accessories
Unit and Accessories TV set User's Manual Remote control Product Feature • Integrated ATSC TV tuner for HDTV broadcast • Three HDMI input for true digital connections • VGA port for connection to PC AC Power Cable reception... -
Page 6: Product Introduction
Product Introduction Front View 1). (IR) Infrared Receiver: Receives (Power on/Standby)LED Indicator: Indicator on(Red) Indicator on(Green) The effective receiving range control window, 300 to the left or right window. 2). The functions of the buttons: INPUT:Press to display the input source menu. MENU: Press to display the OSD menu, press again to exit the menu. -
Page 7: Connections
Connections ® qiiiiEiiiiiiiiiii _qiiili!ii!iii •••_ qiii!ili iiili ilii •i¸_ ® _f_:_,_,_ P® Coax,_ vGj, S_° 1). Service: USB port for service 2). HDMII/2/3: Connect them to the video output terminal 3). VGA: For PC display Connect 4). S-VIDEO: Connect it to S-video 5). -
Page 8: Remote Control
Remote Control The remote control is using Infra-Red(IR). control may not work correctly Point it towards the front of the LCD TV. The remote if it is operated out of range or out of angle. -
Page 9: Remote Control
Remote Control Installing Batteries 1. Open the battery compartment 2. Insert two 1.5V AAA size batteries compartment. Don't mix different types or used batteries with new ones. 3. Close the cover. Batteries shall not be exposed to excessive - The remote control should be operated IR receive at the front of the LCD TV. -
Page 10: Basic Operation
Basic Operation Power on/off 1. Connect to the power supply with the power code. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press INPUT button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or A/V... -
Page 11: Osd Menu
OSD Menu 1. Video menu Note: The item Color, Sharpness display only in NTSC mode; The item VGA will display Picture Mode: Select your desired picture mode. You may select the picture mode directly by pressing the PICTURE button on the remote control. -
Page 12: Audio Menu
OSD Menu Auto adjust: Setup the parameter H/V Position: Adjust the transverse/vertical Phase: Adjust the phase of the ADC sampling stable image is obtained. Clock: Adjust the pixel clock frequency, DNR: If the broadcast signal received the video noise level between Power Saving: Turn on/off the Power Saving mode, when the function energy-saving... -
Page 13: Tv Menu
OSD Menu 3. TV menu (in TV mode) Description Tuner Mode: Select Cable or Air as the tune mode. Channel Scan: Press > to start channel and Digital channels and store them. Note: When the TV is auto tunning, and return to preview menu. Channel Skip Use A / V button to select the channel... -
Page 14: Setup Menu
OSD Menu 4. Setup menu OSD Language: Select OSD language. OSD Transparency: Change the OSD transparency. Time Setu Time zone: Select the time zone. Time: Setup time for the TV in the Time menu. Sleep Timer: Setup the sleep timer(Auto Time Display Mode: Change Caption... -
Page 15: Parental Menu
OSD Menu 5. Parental menu Note: you shoud enter the passward menu Program Block Rating Enable: Turn on/off the Progam Block function. U.S. TV Ratings: Use A / V/< / > button to select, and press OK button to sign (blocked). U.S. - Page 16 OSD Menu Canadian English Ratings: Use A / V button to select, and press OK button to sign (blocked). Canadian French Ratings: Use A / V button to select, and press OK button to sign (blocked). Open V-Chip: Use A / V button to select, and press OK button to set the open V-Chip setinggs Change Password: Change the password...
-
Page 17: Osd Menu
OSD Menu Parental Control Press Enter to enter the sub-menu and then uses the 0-9 to enter the correct password If used, this optional feature can "block" undesirable and settings that restrict or "block" the programming rating they consider accept-able, to the younger secret 4-number code, the password. -
Page 18: Simple Troubleshooting
Simple Troubleshooting If the display fails or performance with the following instructions.Remember failure. If the display still fails to perform No power - Check all connections to the TV. - Press either the power button or the Standby button on the Remote control. No picture or sound - Ensure that the TV is plugged in and the power is on. -
Page 19: Technical Specifications
Technical Specifications LCD Panel Panel Size Brightness Dynamic Contrast Ratio BROADCAST SIGNAL SYSTEM ANTENNA INPUT IMPEDANCE SOUND OUTPUT Max. Resolution VIDEO S-VIDEO YPbPr Input Connector AUDIO PC/AUDIO HDMI SPDIF Output Connector HEADPHONE Power Source Power Consumption * Product specifications 55" (measured 500cd/m 2 10000:1 NTSC=M + ATSC... -
Page 20: Instruction For Wall Mount
4 pcs of type M5 screws are required for installing the wall mount bracket to your VIORE TV. Do not use screws that are longer than 10 mm. Screws that are too long may cause damage to the inside of the TV set. - Page 21 VIORE will repair or if repairs cannot be made, VIORE will replace this Product at no charge with the same, like or similar Product if the Product is defective as specified in this limited warranty during the limited warranty period. VIORE may use new or remanufactured products to repair or replace the Product at its sole discretion.
-
Page 22: Viore Limited Warranty
VIORE, Inc. 7801 Hayvenhurst Avenue, Van Nuys, California 91406 Printed in China...
