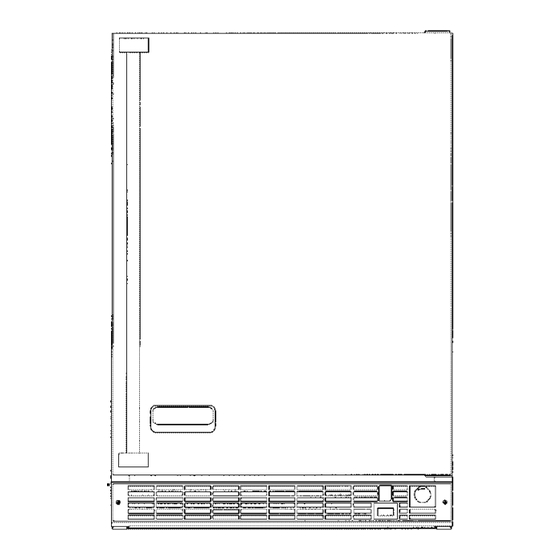

Vuar 24" w. undercounter/freestanding refrigerated beverage center
Hide thumbs Also See for VUAR140T:

Advertisement

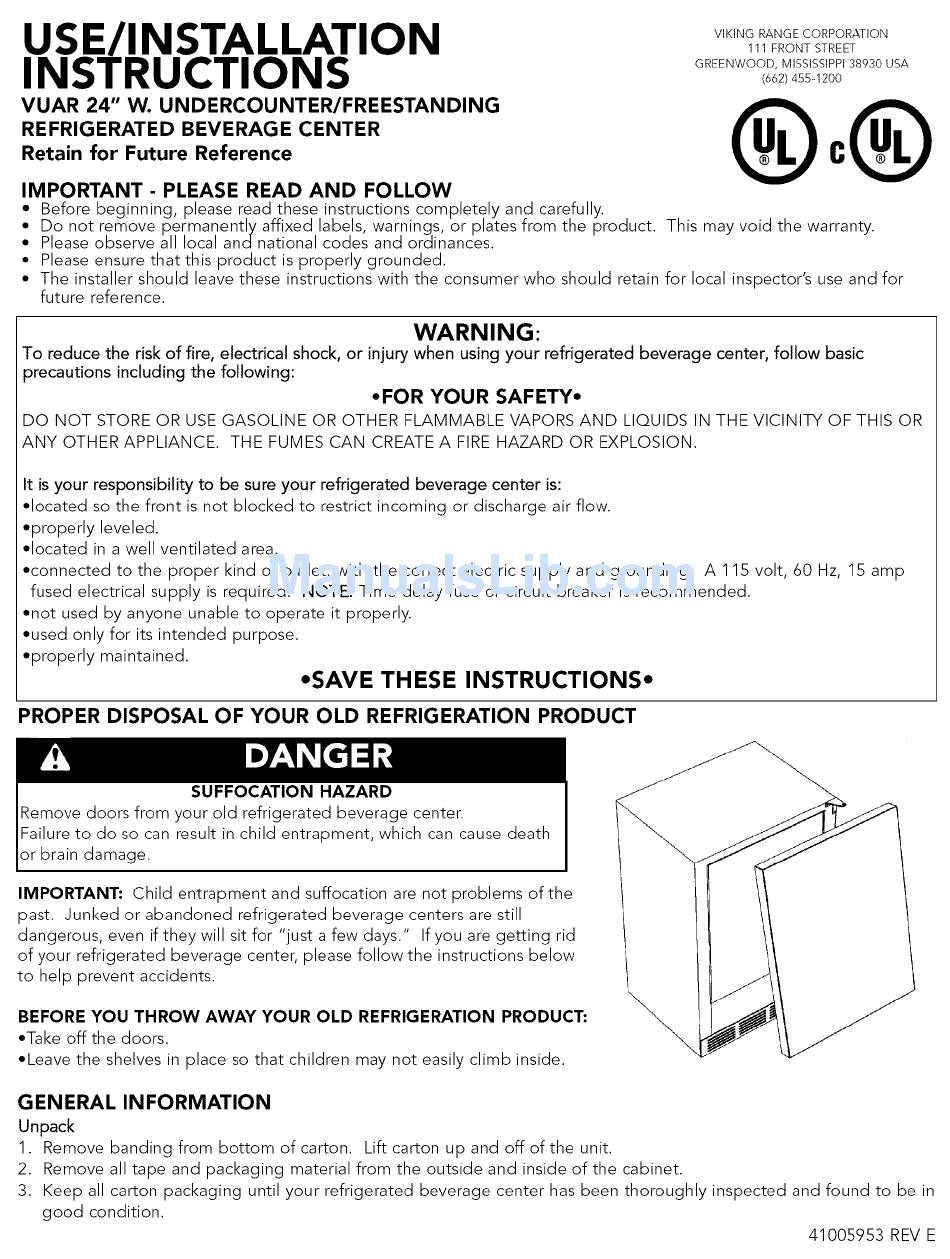

US Ell NSTALLATION
INSTRUCTIONS
VUAR
24" W. UNDERCOUNTER/FREESTANDING
REFRIGERATED
BEVERAGE
CENTER
Retain for Future Reference
VIKING RANGE CORPORATION
111 FRONT STREET
GREENWOOD,
MISSISSIPPI 38930 USA
(882) 458-1200
IMPORTANT
- PLEASE READ AND
FOLLOW
Before beginning,
please read these instructions completely
and carefully.
Do not remove permanently
affixed labels, warnings, or plates from the product.
This may void the warranty.
Please observe all local andnational
codes and ordinances.
• Please ensure that this product is properly grounded.
• The installer should leave these instructions with the consumer who should retain for local inspector's use and for
future reference.
WARNING:
To reduce the risk of fire, electrical shock, or injury when using your refrigerated beverage center, follow basic
precautions including the following:
•FOR YOUR
SAFETY,
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR EXPLOSION.
It is your responsibility to be sure your refrigerated
beverage center is:
• located so the front is not blocked to restrict incoming or discharge air flow.
• properly leveled.
• located in a well ventilated
area.
•connected
to the proper kind of outlet, with the correct electric supply and grounding.
A 115 volt, 60 Hz, 15 amp
fused electrical supply is required.
NOTE: Time delay fuse or circuit breaker is recommended.
• not used by anyone unable to operate it properly.
• used only for its intended
purpose.
• properly maintained.
• SAVE THESE
INSTRUCTIONS,
PROPER DISPOSAL
OF YOUR OLD REFRIGERATION
PRODUCT
SUFFOCATION
HAZARD
Remove doors from your old refrigerated beverage center.
Failure to do 8o can result in child entrapment,
which can cause death
or brain damage.
IMPORTANT:
Child entrapment
and suffocation are not problems of the
past. Junked or abandoned refrigerated beverage centers are still
dangerous, even if they will sit for "just a few days."
If you are getting rid
of your refrigerated beverage center, please follow the instructions below
to help prevent accidents.
BEFORE YOU THROW AWAY YOUR OLD REFRIGERATION
PRODUCT:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
\
\
\
\
GENERAL
INFORMATION
Unpack
1. Remove banding from bottom of carton.
Lift carton up and off of the unit.
2. Remove all tape and packaging material from the outside and inside of the cabinet.
3. Keep all carton packaging until your refrigerated
beverage center has been thoroughly
inspected and found to be in
good condition.
41005953 REV E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VUAR140T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viking VUAR140T

  • Page 1 US Ell NSTALLATION VIKING RANGE CORPORATION 111 FRONT STREET INSTRUCTIONS GREENWOOD, MISSISSIPPI 38930 USA (882) 458-1200 VUAR 24" W. UNDERCOUNTER/FREESTANDING REFRIGERATED BEVERAGE CENTER Retain for Future Reference IMPORTANT - PLEASE READ AND FOLLOW Do not remove permanently affixed labels, warnings, or plates from the product.
  • Page 2: Area Requirements

    AREA REQUIREMENTS Units Certified for Indoor Use - (black outer cabinet) MUST BE INSTALLED IN AN AREA PROTECTED FROM THE ELEMENTS, SUCH AS WIND, RAIN, WATER (SPRAY OR DRIP). 1. Place unit so the front side will be completely unobstructed to provide proper air flow.
  • Page 3: Cabinet Cutout

    UNDERCOUNTER CABINET CUTOUT 24" (61.0 cm)* Min. 34 1/8" (86.7 cm) Max. 35 1/8" (89.2 cm) 24" (61.0 cm) *24" width for cabinet only. 24 1/4" (61.6 cm) need for cabinet and door width clearance if door is recessed between cabinets. SPECIFICATIONS/DIMENSIONS Basic Electric Data •...
  • Page 4: Installation

    LEG LEVELER INSTALLATION Read Before Installing Leg Levelers WARNING: Do not lay unit on top, side, back, or front. If unit is accidentally laid in any position other than right side up, then the unit must remain in the right side up position for at least 24 hours before plugging the unit in.
  • Page 5 FINAL PREPARATION 1. Some stainless steel parLsmay have a plastic protective wrap which must be peeled off. The interior of the refrigerated beverage center should be washed thoroughly with hot, soapy water, rinsed and wiped dry to remove film residue and any installation dust or debris before being used.
  • Page 6: Interior Light

    INTERIOR LIGHT The interior light allows you to view the unit's contents. When the switch is in the "OFF" position, the light will come on only when the door is opened. In the "ON" position, the light remains on continuously. ELECTRICAL SHOCK HAZARD...
  • Page 7: Troubleshooting

    *Name of dealer from whom purchased If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range Corporation at (888) 845-4641 or write to: VIKING RANGE CORPORATION...
  • Page 8 Owner Registration Card is not a condition of warranty coverage. You, however, should return the Owner Registration Card so that Viking Range Corporation can contact you should any question of safety arise which could affect you. Any implied warranties of merchantability and fitness applicable to the above described undercounter refrigerated beverage center are limited in duration to the period of coverage of the applicable express written limited warranties set forth above.
  • Page 9 Viking Range Corporation. Provide model and serial number and date of original purchase. For the name of your nearest authorized Viking Range Corporation service agency, call the dealer from whom the product was purchased or Viking Range Corporation.
