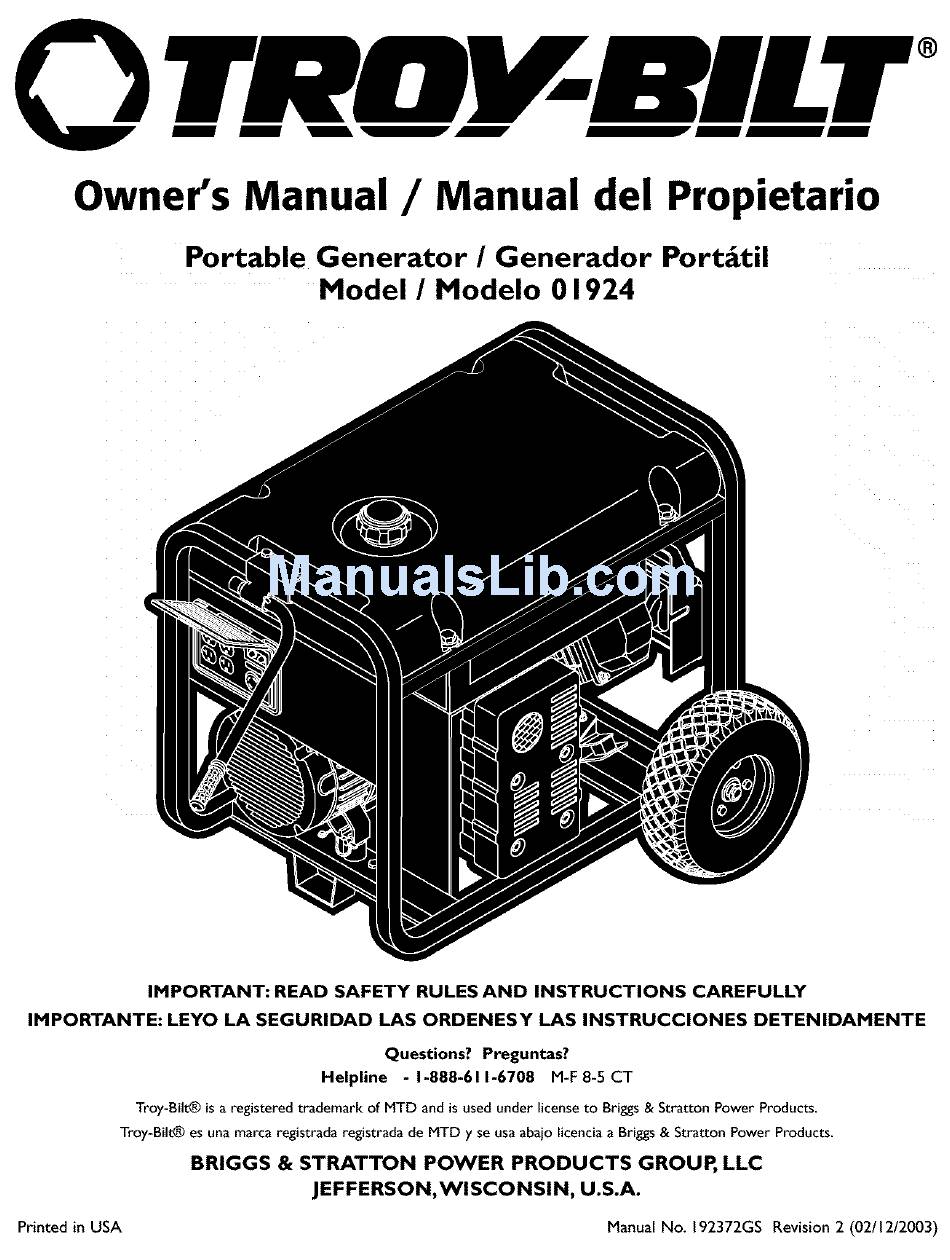

Owner's Manual / Manual del Propietario
Portable
Generator
/ Generador
Port_til
Model
/ Modelo
01924
®
IMPORTANT:
READ
SAFETY
RULES AND
INSTRUCTIONS
CAREFULLY
IMPORTANTE:
LEYO
LA SEGURIDAD
LAS ORDENESY
LAS INSTRUCCIONES
DETENIDAMENTE
Questions? Preguntas?
Helpline
- 1-888-611-6708
M*F 8-5 CT
Troy-Bilt_ isa registeredtrademarkof MTD and isusedunder licenseto Briggs& StrattonPower Products.
Troy-Bilt_ es una marcaregistradaregistrada de MTD y se usaabaio licencia a Briggs& Stratton PowerProducts.
BRIGGS
& STRATTON
POWER
PRODUCTS
GROUP,
LLC
JEFFERSON,WISCONSIN,
U.S.A.
Printed in USA
Manual No. 192372GS Revision 2 (02/12/2003)

Advertisement

Table of Contents
loading

Summary of Contents for Troy-Bilt 1924

  • Page 1 ® Owner's Manual / Manual del Propietario Portable Generator / Generador Port_til Model / Modelo 01924 IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY IMPORTANTE: LEYO LA SEGURIDAD LAS ORDENESY LAS INSTRUCCIONES DETENIDAMENTE Questions? Preguntas? Helpline - 1-888-611-6708 M*F 8-5 CT Troy-Bilt_ isa registeredtrademarkof MTD and isusedunder licenseto Briggs&...
  • Page 2: Table Of Contents

    Safety Rules TABLE OF CONTENTS SAFETY RULES Safety Rules........Know Your Generator ......his is the safety alert symbol. It is used to alert you to potential personal injury hazards. Assembly ........Obey all safety messages that follow this Operation ........8-II Maintenance........
  • Page 3: Safety Rules

    Section 1: Safety Rules DANGER WARNING Operate generator ONLY outdoors. WHEN ADDING FUEL Keep at least 2 feet of clearance on aHsides of generator for Turn generator OFF and let it cool at least 2 minutes before adequate ventilation. removing gas cap. Loosen cap slowly to relieve pressure in tank, DO NOT operate generator inside any buildingor enclosure, Fill fuel tank outdoors.
  • Page 4 Section 1: Safety Rules CAUTION WARNING See"Don't Overload Generator" on page I I. Start generator and let engine stabilize before connecting electrical loads. ;ENERATOR Connect electrical loads in OFF position, then turn ON for Disconnect the spark plug wire from the spark plug and place operation.
  • Page 5: Knowyour Generator

    Features and Controls KNOWYOUR GENERATOR Read this owner's manual and safety rules before operating your generator. Compare this illustration with your generator to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Rocker Switch FuelTank Recoil Starter Oil Fill Cap/Dipstick...
  • Page 6: Assembly

    ASSEMBLY Install Wheel The wheel kit is designed to greatly improve the portability Your generator requires some assembly and is ready for of your generator. use after it has been properly serviced with the NOTE: Wheel kit is not intendedfor over-the-road use. recommended oil and fuel.
  • Page 7: Assembly

    Section 3: Assembly Place one end of needlenose pliers on bottom of axle To fill your engine with oil: and other end of pliers on top of e-ring. Seate-ring by • Place generator on a level surface. pressing pliers closed. •...
  • Page 8: Operation

    Operation GROUNDING Turn fuel valve to "On" position (Figure 3). Fuel valve handle should be vertical (pointing toward ground) for G EN ERATO R fuel to flow. The National Electrical Code requires that the frame and external electrically conductive parts of this generator be properly connected to an approved earth ground.
  • Page 9 Section 4: Operation Use each receptacle to operate 120Volt AC, single-phase, 60 Hz electrical loads requiring up to 2,400 watts (2.4 kW) at 20Amps of current. Use cord sets that are rated for 125Volt AC loads at 20 Amps (or greater). AUTION!These outlets are rated at 120Volt 20 Amp each (up to 80 Amps).The generator may...
  • Page 10 Section 4: Operation DON'T OVERLOAD Plug in and turn on the next load. Again, permit the generator to stabilize. G EN ERATO R Repeat steps 4 and 5 for each additional load. NEVER add more loads than the generator capacity.Take special care to consider surge loads in generator capacity, Capacity as described above.
  • Page 11: Maintenance

    Maintenance GENERAL MAINTENANCE • Use low pressure air (not to exceed 25 psi) to blow away dirt. Inspect cooling air slots and opening on RECOMMENDATIONS generator.These openings must be kept clean and unobstructed. The Owner/Operator is responsible for making sure that alt periodic maintenance tasks are completed on a timely Data Tag basis;that all discrepancies are corrected;...
  • Page 12: Storage

    STO RAG E Engine Storage manual for engine owner's instructions. The generator should be started at least once every seven days and allowed to run at least 30 minutes. If this cannot Other Storage Tips be done and you must store the unit for more than •...
  • Page 13: Troubleshooting

    Troubleshooting TROUBLESHOOTING Problem Solution Cause Reset circuit breaker. Circuit breaker is open. Poor connection or defective Check and repair. cord set. No AC output is available, but Connect another device that is in Connected device is bad. engine is running. good condition.
  • Page 14 Schematic and Wiring Diagram SCHEMATIC ÷ BRIDGE AcECTIFIER FIELD POWER POWER "P1-1 i P1-2 P1-3 P1-4 15A ' 120V 120V PI-5_ EOA ov...
  • Page 15 Section 8: Schematic and Wiring Diagram WIRING DIAGRAM 0 22-- BLACK NOTE: POSITIVE BRUSH IS CLDEEST BEARING CUSTOMER GROUND...
  • Page 16 Exploded Views and Parts Lists EXPLODEDVIEW- HAIN UNIT _2° \\\\ DETAIL "Y" OETAIL "Y"...
  • Page 17 Section 9: Exploded Views and Parts Lists PARTS LIST - MAIN UNIT Item Part # Qty. Description Item Part # Qty. Description PI91719GS CRADLE 192374GS DECAL, Heat Shield 77395GS 70642GS MOUNT, Vibration NUT, Lock 76222GS SCREW 30 4803 ICGS CLAMP,Hose, Band 191795GS HOSE, Fuel, Formed 186058AGS...
  • Page 18 Section 9: Exploded Views and Parts Lists ALTERNATOR EXPLODED VIEW PARTS LIST Item Part # Qty. Description 186059GS ADAPTER, Mounting, Alternator 191685GS ROTOR 191686AGS STATOR 186060GS RBC,with O-Ring (p/n 189197GS) 86308GS SCREW 91825GS ASSY,Holder, Rectifier/Brush 66849GS SCREW 22694GS RECEPTACLE, 6 pin 81917GS PIN, Roll 19105lAGS...
  • Page 19 Section 9: Exploded Views and Parts Lists CONTROL PANEL EXPLODED VIEWAND PARTS LIST Item Part # Qty. Description 188914GS COVER, Lid, Control Panel 188889AGS CONTROL PANEL, Compact 189167GS CLIP,Hinge Pin Retainer 189182GS SPRING, Hinge, Pin 189166GS PIN, Hinge, Cover, Compact 68759GS OUTLET, 120V,20A, Duplex 189165GS...
  • Page 20 Section 9: Exploded Views and Parts Lists WHEEL KIT EXPLODEDVIEWAND PARTS LIST Item Part # Qty. Description 189715GS ASSY,Handle B1764GS LEG,Mounting 52858GS NUT, Lock 39287GS SCREW 191267NGS AXLE B4966GS WHEEL 191265GS E-RING 22247GS WASHER 42907GS SCREW...
  • Page 21: Notes

    Notes NOTES...
  • Page 22 Reglas de Seguridad TABLA DE CONTENIDOS REGLAS DE SEGURIDAD ReglasDe Seguridad ......22-24 Conozca Su Generador ......para advertir al usuario de un posible riesgo para Este es el simbolo de alerta de seguridad. Sirve Ensamblaje........26-27 su integridad fisica. Siga todos los mensajes de Funcionamiento ........
  • Page 23 Secci6n 1: Reglas de Seguridad PELIGRO ADVERTENCIA Opere el generador SOLAMENTE al aire libre. CUANDO AI_IADA COMBUSTIBLE Mantenga al menos 2 pies de espacio libre alrededor del generador, Apague el generador (posici6n OFF) y d_jelo enfriar al menos por para la adecuada ventilaci6n. 2 minutos antes de remover la tapa de la gasolina.Afloje la tapa NO opere el generador dentro de un edificio o lugar cerrado, incluyendo lentamente para dejar que la presi6n salga del tanque.
  • Page 24 Secci6n 1: Instrucciones de Seguridad PRECAUCION ADVERTENCIA Vea "No sobrecargue generador" en la p_gina 30. Encienda su generador y deje clue el motor se estabilice antes de conectar las cargas el/actricas. ;ENERADOR Conecte las cargas el_ctricas en la posici6n de apagado (OFF), luego Siempre desconecte el alambre de la bujla y col6quelo donde no encienda (ON) para su operaci6n.
  • Page 25 Caracteristicas y Mandos CONOZCA SU GENERADOR LEA ESTE MANUAL DEL PROPIETARIOY LAS REGLAS DE SEGURIDAD ANTES DE OPERAR SU GENERADOR. Compare las ilustraciones con su Generador para familiarizarse con las ubicaciones de los diferentes controles y ajustes. Conserve este manual para referencias futuras.
  • Page 26 MONTAJE Instale el Juego de Ruedas E[ juego de ruedas est_ disefiado para mejorar el transporte de[ Su generador requiere de ciertos procedimientos de montaie y generador. solo estar_ listo para ser utilizado despu_sde haber[e suministrado servicio con el combustible y aceite recomendados. NOTA: Este Juego de Ruedasno ha sido disefiado para ser usado en la carretera.
  • Page 27 Secci6n 3: Montaje Coloque un extremo de las pinzas de puntas de aguja en la Coloque lagenerador sobre una superficie nivelada. parte inferior del eje y el otro extremo de las pinzas en la Consulte el manual del propietario del motor para a_adir al parte superior del e-ring.Asiente el e-ring cerrando las motor el aceite recomendado.
  • Page 28 Operaci6n CONEXION ATIERRA GENERADOR El C6digo Nacional de Electricidad exige que el marco y las partes exteriores del generador conductoras de electricidad, est_n conectadas a tierra adecuadamente.Los c6digos el_ctricos locales tambi_n pueden exigir que la unidad est_ conectada a tierra Vglvula del Combustible correctamente.
  • Page 29 Secci6n 4: Operaci6n Use cada recept_culo para operar 120Voltios AC, de fase sencilla, de cargas de 60Hz que requieren hasta 2,400 vatios (2.4 kW) a corrientes de 20 Amps. Use los juegos de cables que son de Cable de 4 Alambres calificados para cargas de 125Voltios AC, a 20 Amps (o mayores).
  • Page 30 Secci6n 4: Operaci6n NO SOBRECARGUE GENERADOR Conecte y encienda la pr6xima carga. De nuevo,permita que el generador se estabilice. Capacidad Repita los pasos4 y 5 para cada carga adicional que usted tenga. Usted debe asegurarse que su generador puede proveer el suficiente vataje calificado (cuando est_ funcionando) y de carga NUNCA aSadamgs cargas sobre la capacidad del generador.
  • Page 31 Mantenimiento RECOMENDACIONES Puede usar aire a baja presi6n (que no exceda los 25 psi) para eliminar la suciedad. Inspeccione las ranuras para aire de GENERALES enfriamiento y la apertura del generado_ Estas aperturas deber_n mantenerse limpias y despejadas. MANTENIMIENTO Etiqueta de Datos El propietario I operador...
  • Page 32 Almacenamiento Almacenando el Motor ALMACENAMIENTO Consulte el manual del propietario del motor para las El generador deber_ ser encendido al menos una vez cada siete instruccionesde cbmo preparar adecuadamente el motor para su dfas y deber_ dejarlo funcionar al menos durante 30 minutos. Si almacenamiento.
  • Page 33 Diagnosticos de Averias DIAGNOSlTICOS DE AVERiAS Problemo Accion Causa Reposicione el interruptor. El interruptor autom6tico de circuito est_ abierto. juego Revisey repare. Conexi6n real o defectuosa No hay corriente alterna, pero el de cables. motor funciona. El dispositivo conectado est_ daffado. Conecte otro dispositivo que est_...
  • Page 34 Notas...
  • Page 35 POLJTICA PARA EL PROPIETARIO DE EQUIPOSTROY-BILT® Efectiva desde el Iro de Enero, 2003 GARANTIA LIMITADA "Troy-BiltO es una marca registrada de MTD bajo licencia de Briggs & Stratton Power Products. Briggs & Stratton Power Products reparar_ o sustituir_ sin cargo alguno cualquier componente del equipo** que presente defectos de materiales y/o mano de obra.
  • Page 36: Warranty

    TROY-BILT® O WNER WARRANTY POLICY Effective January I, 2003 LIMITED WARRANTY "Troy-Bitt® is a registered trademark of MTD and is used under license to Briggs & Stratton Power Products. Briggs & Stratton Power Products will repair or replace, free of charge, any part, or parts of the equipment** that are defective in material or workmanship or both.Transportation charges on parts submitted for repair or replacement under this warranty must be borne...
