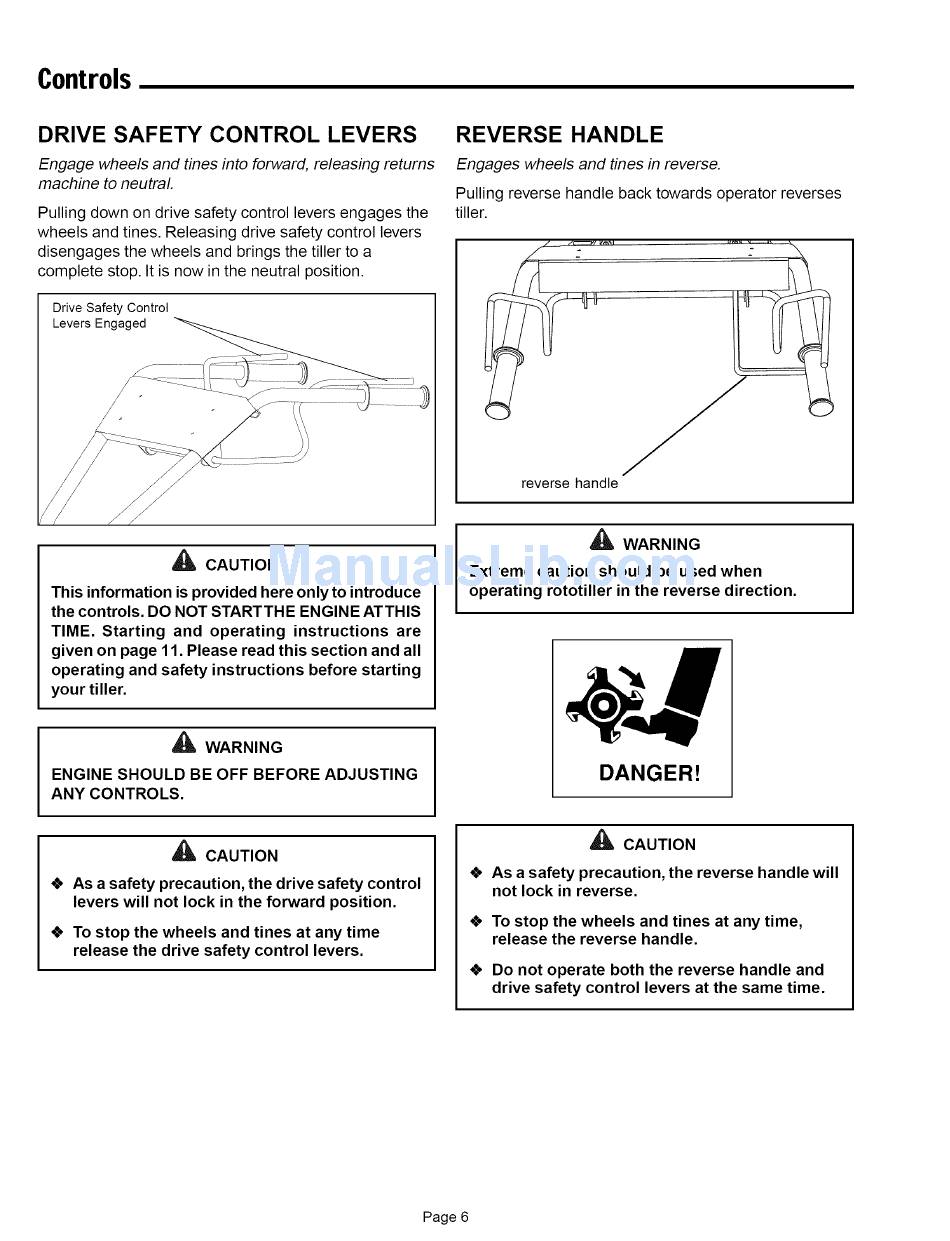

Controls
DRIVE SAFETY CONTROL LEVERS
Engage wheels and tines into forward, releasing returns
machine to neutral.
Pulling down on drive safety control levers engages the
wheels and tines. Releasing drive safety control levers
disengages the wheels and brings the tiller to a
complete stop. It is now in the neutral position.
Drive Safety Control
Levers Engaged
REVERSE HANDLE
Engages wheels and tines in reverse.
Pulling reverse handle back towards operator reverses
tiller.
I
reverse handle
1
_l_ CAUTION
This information is provided here only to introduce
the controls. DO NOT STARTTHE ENGINE ATTHIS
TIME. Starting and operating instructions are
given on page 11. Please read this section and all
operating and safety instructions before starting
your tiller.
,_ WARNING
ENGINE SHOULD BE OFF BEFORE ADJUSTING
ANY CONTROLS.
WARNING
Extreme caution should be used when
operating rototiller in the reverse direction.
DANGER!
_lL CAUTION
4) As a safety precaution, the drive safety control
levers will not lock in the forward position.
4) To stop the wheels and tines at any time
release the drive safety control levers.
O
O
O
CAUTION
As a safety precaution, the reverse handle will
not lock in reverse.
To stop the wheels and tines at any time,
release the reverse handle.
Do not operate both the reverse handle and
drive safety control levers at the same time.
