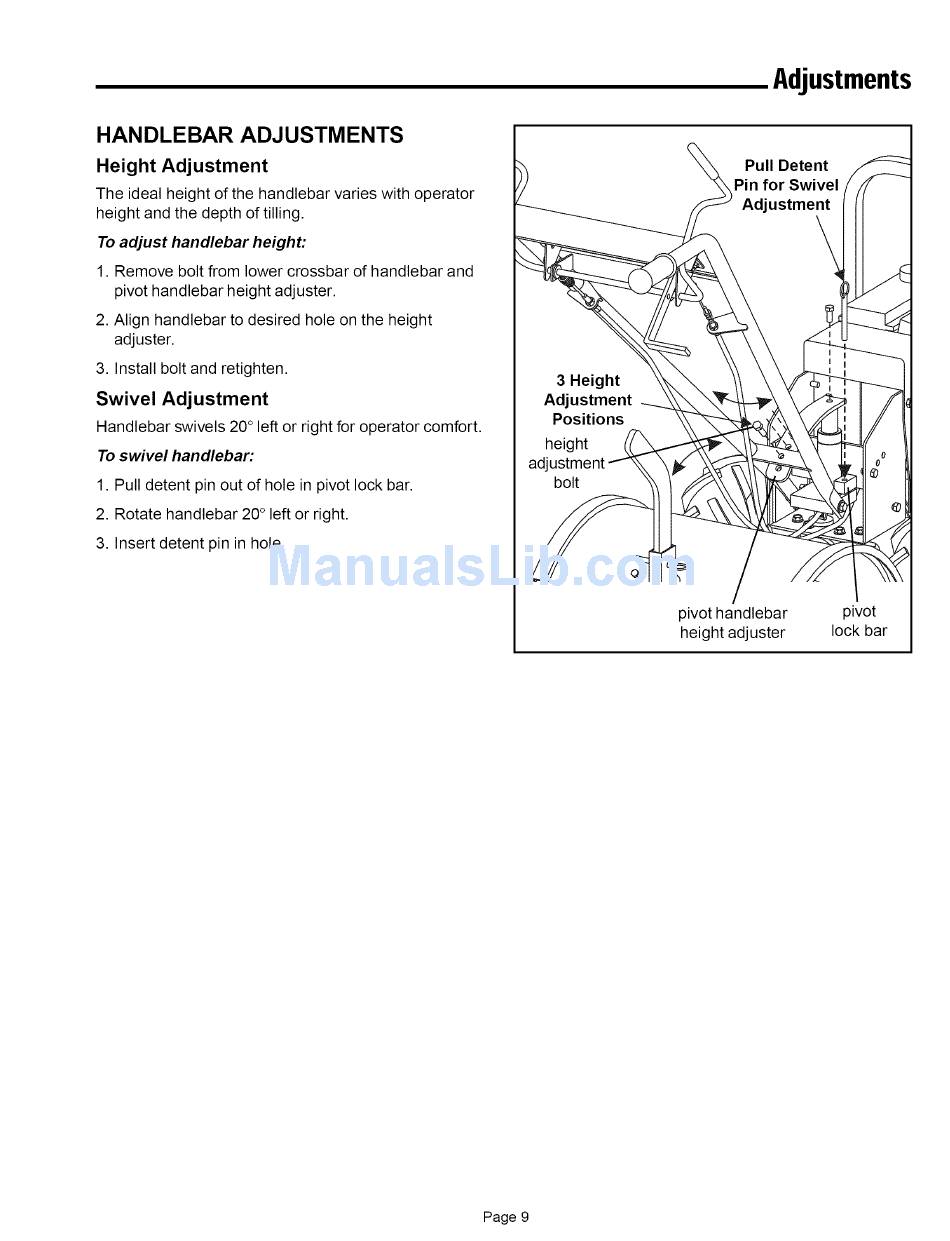

HANDLEBAR ADJUSTMENTS
Height Adjustment
The ideal height of the handlebar varies with operator
height and the depth of tilling.
To adjust handlebar height:
1. Remove bolt from lower crossbar of handlebar and
pivot handlebar height adjuster.
2. Align handlebar to desired hole on the height
adjuster.
3. Install bolt and retighten.
Swivel Adjustment
Handlebar swivels 20 ° left or right for operator comfort.
To swivel handlebar:
1. Pull detent pin out of hole in pivot lock bar.
2. Rotate handlebar 20 ° left or right.
3. Insert detent pin in hole.
Adjustments
Pull Detent
Pin for Swivel
Adjustment
pivot handlebar
height adjuster
pivot
lock bar
Page 9
