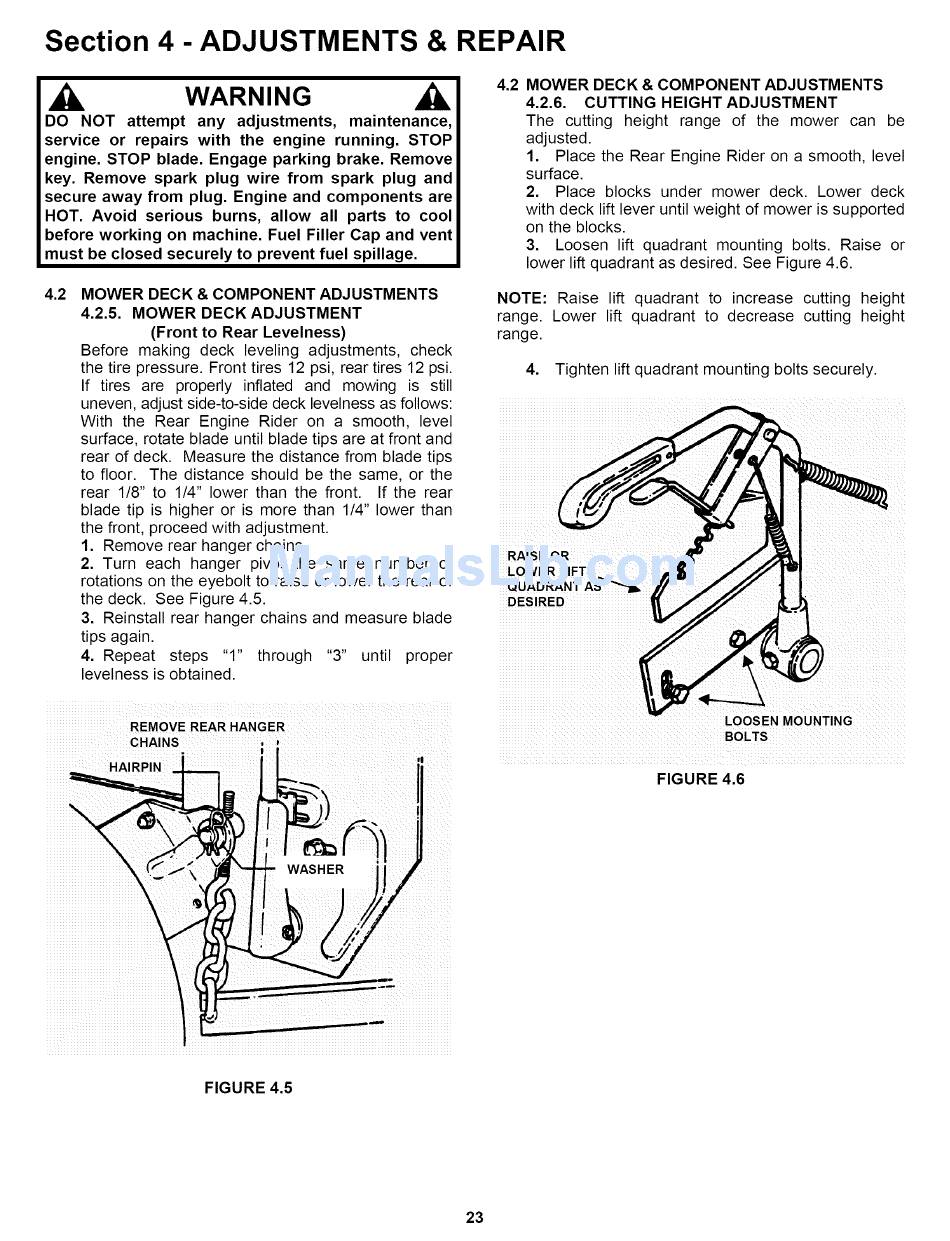

Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade.Engage parking brake.Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
4.2 MOWER DECK & COMPONENT ADJUSTMENTS
4.2.5. MOWER DECK ADJUSTMENT
(Front to Rear Levelness)
Before making deck leveling adjustments, check
the tire pressure. Front tires 12 psi, rear tires 12 psi.
If tires are properly inflated and mowing is still
uneven, adjust side-to-side deck levelness as follows:
With the Rear Engine Rider on a smooth, level
surface, rotate blade until blade tips are at front and
rear of deck. Measure the distance from blade tips
to floor. The distance should be the same, or the
rear 1/8" to 1/4" lower than the front. If the rear
blade tip is higher or is more than 1/4" lower than
the front, proceed with adjustment.
1. Remove rear hanger chains.
2. Turn each hanger pivot the same number of
rotations on the eyebolt to raise or lower the rear of
the deck. See Figure 4.5.
3. Reinstall rear hanger chains and measure blade
tips again.
4. Repeat steps "1" through "3" until proper
levelness is obtained.
4.2 MOWER DECK & COMPONENT ADJUSTMENTS
4.2.6. CUTTING HEIGHT ADJUSTMENT
The cutting height range of the mower can be
adjusted.
1. Place the Rear Engine Rider on a smooth, level
surface.
2. Place blocks under mower deck. Lower deck
with deck lift lever until weight of mower is supported
on the blocks.
3. Loosen lift quadrant mounting bolts. Raise or
lower lift quadrant as desired. See Figure 4.6.
NOTE: Raise lift quadrant to increase cutting height
range. Lower lift quadrant to decrease cutting height
range.
4. Tighten lift quadrant mounting bolts securely.
RAISE OR
LOWER LIFT
QUADRANT AS""-&
DESIRED
LOOSEN MOUNTING
BOLTS
FIGURE 4.6
FIGURE 4.5
23
