Section 1 - FAMILIARIZATION
FUEL
FILLER
TRANSMISSION
SHIFT
FUEL
REAR BUMPER
VENT
STEERING
WHEEL
OPERATOR'S
SEAT
DECK LIFT LEVER
CONTROL
PANEL
(SEEINSERT)
PEDAL
DISCHARGE
DEFLECTOR--
CONTROL PANEL
IGNITION
SWITCH
ENGINE SPEED--
CONTROL
PARK
BRAKE
L
BLADE
PEDALS
BLADE
_LEVER
--
MOWER
DECK
MOWER
BELT
COVER
CHOKE

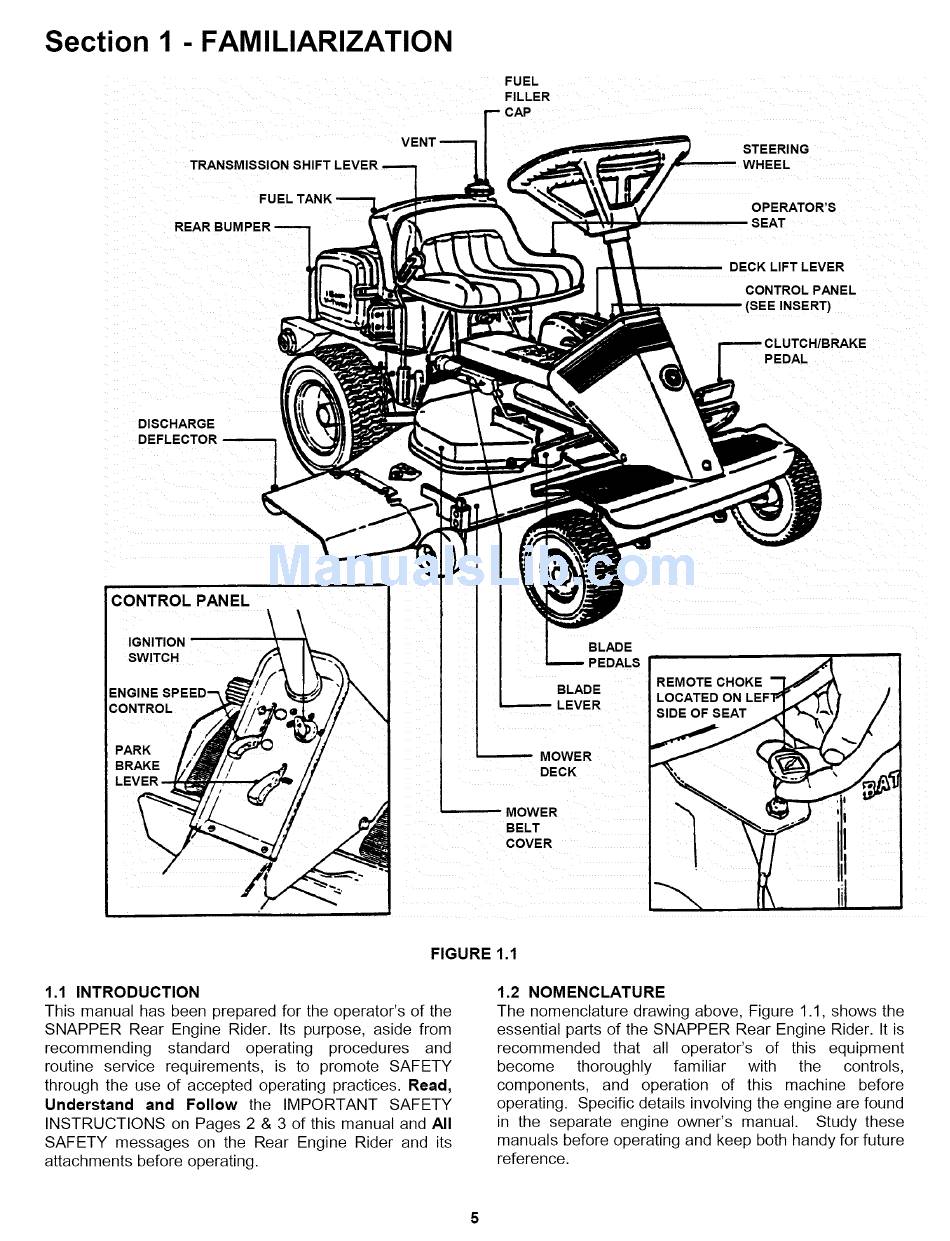

FIGURE
1.1 INTRODUCTION
This manual has been prepared for the operator's of the
SNAPPER
Rear Engine Rider. Its purpose, aside from
recommending
standard
operating
procedures
and
routine
service
requirements,
is to promote
SAFETY
through the use of accepted operating practices. Read,
Understand
and
Follow
the
IMPORTANT
SAFETY
INSTRUCTIONS
on Pages 2 & 3 of this manual and All
SAFETY messages
on the Rear Engine Rider and its
attachments before operating.
1.1
1.2 NOMENCLATURE
The nomenclature
drawing above, Figure 1.1, shows the
essential parts of the SNAPPER Rear Engine Rider. It is
recommended
that
all operator's
of this
equipment
become
thoroughly
familiar
with
the
controls,
components,
and operation
of this
machine
before
operating.
Specific details involving the engine are found
in the separate engine owner's manual.
Study these
manuals before operating and keep both handy for future
reference.
