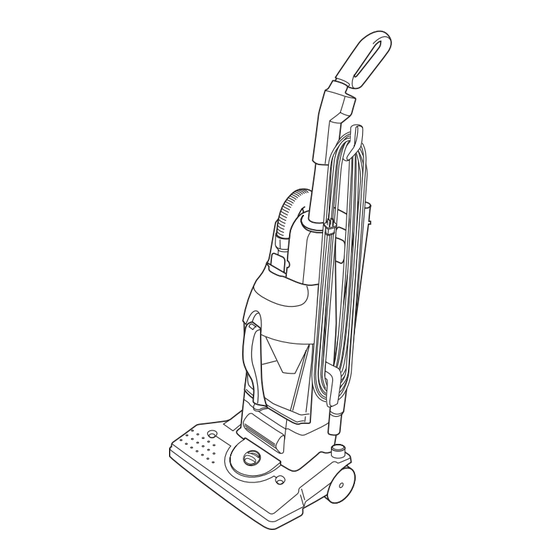

Commercial Upright
Vacuum Cleaner
Owner's Guide
4500 Series
Index
Important Safeguards ........... 2
Service Information ............... 4
Assembly ............................ 5-6
Use ........................................ 7
Thermal Cut Off ............... 4 & 7
Accessories ........................... 8
Cyclonic Cassette ............ 9-10
Brush Roll ........................... 11
Brush Roll Belt ................ 11-12
Hose Blockage ............... 13-14
Filters .................................. 15
HEPA Filter .......................... 15
Light Bulb ............................ 16
Problem Solving .................. 17
Warranty .............................. 19
www.eureka.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sanitaire 4500 Series

Summary of Contents for Sanitaire 4500 Series

  • Page 1: Table Of Contents

    Commercial Upright Vacuum Cleaner Owner’s Guide 4500 Series Index Important Safeguards ... 2 Service Information ....4 Assembly ......5-6 Use ........7 Thermal Cut Off ....4 & 7 Accessories ......8 Cyclonic Cassette .... 9-10 Brush Roll ......11 Brush Roll Belt ....

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •...
  • Page 3 CONSEILS DE SÉCURITÉ Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes: LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR. AVERTISSEMENT Pour réduire le risque de feu, de choc électrique, ou de blessure: • Ne pas utiliser à...

  • Page 4: Service Information

    SERVICING OF DOUBLE-INSULATED APPLIANCES A double-insulated appliance is marked with one or more of the following: The words “DOUBLE INSULATION” or “DOUBLE INSULATED” or the double insulation symbol (square within a square). In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance.

  • Page 5: Assembly

    HOW TO ASSEMBLE CAUTION: Moving parts, make sure on/off switch is in off position before plugging in. CAUTION: Assemble the cleaner before using. NOTE: Features may vary by model yet all parts assemble the same. Step B Attach Hose Step A Attach Handle CAUTION: Do not catch cord under handle.
  • Page 6 Step C Check Cyclonic Cassette Step D Store Hose and Accessories Dusting Brush Upholstery Tool Crevice Tool Carrying Handle Make sure that the cyclonic cassette is fully seated in the vacuum. Place thumbs on cyclonic cassette (marked by arrows above) and push firmly. Telescoping NOTE: Do not lift cleaner by cassette handle, use Wand...

  • Page 7: Use

    HOW TO USE The upright vacuum cleaner design allows use on multiple types of carpeting and on upholstery or bare floors with attachments. When using the attachment tools, place the handle in the upright ON/OFF position. Do not place cleaner on furniture or steps as the brush roll may cause damage.

  • Page 8: Accessories

    How To Use Accessories Crevice tool cleans corners, baseboards, between cushions, sliding door tracks. NOTE: Do not place cleaner on furniture or steps as the brush roll may cause damage. Place cleaner on floor with the handle in storage position while using accessories. 1.

  • Page 9: Cyclonic Cassette

    HOW TO MAINTAIN The instructions in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the cyclonic cassette, belt, and brush roll often. How To Empty Cyclonic Cassette NOTE: Turn off the switch and unplug the electrical cord before emptying cyclonic cassette. Never operate the vacuum cleaner without the cyclonic cassette or filters.
  • Page 10 HOW TO MAINTAIN (continued) To Change Cassette Micron Filter: NOTE: Turn off the switch and unplug the electrical cord before changing the Cassette Micron Filter. Never operate the vacuum cleaner without the cyclonic cassette or the filter. Remove cyclonic cassette by pushing up lever (1), unhooking (2) by swinging outward from vacuum body.

  • Page 11: Brush Roll

    HOW TO MAINTAIN (continued) Brush Roll The brush roll turns as it sweeps and combs the carpet nap. Remove hair and threads from the brush roll so it continues brushing the carpet. To maintain the most efficient cleaning, the bristles must touch the carpet. To test the bristle length, hold a ruler against the underneath side of the cleaner.
  • Page 12 How To Replace Brush Roll Belt (continued) 5. Place new belt around motor pulley. 8. Pull right side of brush roll to stretch belt. Secure right end cap into base. Left side view 9. Rotate brush roll to seat belt. 6.

  • Page 13: Hose Blockage

    How to Check and Clear Hose Blockages Low suction or poor pickup may be due to a blockage in the vacuum cleaner. 1. Remove hose and check suction at end of hose - if little or no suction, check cyclonic cassette. Empty if needed. If no improvement proceed to Step 2.
  • Page 14 How to Check and Clear Blockages in Base 2. Remove the hood by loosening the two fasteners 1. Remove the attachment hose from the lower hose located on the top of the hood and lifting upward. retainer and look into the hose retainer for any obstructions.

  • Page 15: Filters

    Motor Filter Check the motor filter each time you empty the cyclonic cassette. Clean or replace as needed. To Clean Motor Filter 1. Remove cyclonic cassette from unit. Filter Retainer 2. Remove filter from inside compartment, lower left side. Back Ledge 3.

  • Page 16: Light Bulb

    How To Change Light Bulb (only for models with a headlight) NOTE: Turn off the power switch and disconnect the electrical cord before changing light bulb. 1. Remove two screws from lens cover. 2. Pull lens cover from cleaner. 3. Support socket with one hand and push light bulb into socket;...

  • Page 17: Problem Solving

    PROBLEM SOLVING NOTE: Turn off the switch and unplug the electrical cord before servicing. PROBLEM CAUSE SOLUTION Motor will not start. Electric Plug Push plug securely into outlet. Try another outlet. Check circuit breaker. Motor suddenly stops. Thermal Cut Off Refer to page 7.

  • Page 19: Warranty

    WHAT THIS WARRANTY COVERS Your Sanitaire commercial cleaner is warranted to be free from all defects in material and workmanship in normal use FOR A PERIOD OF ONE YEAR. The warranty is granted only to the original purchaser of the cleaner. The warranty is subject to the following provisions.
  • Page 20 Assembly Items in This Carton 1 hardware package (2 screws) 1 crevice tool 1 telescoping wand 1 dusting brush 1 cleaner connected to handle by cord 1 hose adapter w/hose 1 upholstery brush Thank you for selecting a Eureka cleaner. Don’t Forget to Use Genuine Eureka Filters and Belts...
