Euphonix MC524 Monitor Interface Operation Manual

Rear Panel

In 1 (38-pin Elco): Talk Back, Listen Back and Mic inputs. This connector receives
four stereo listen channels and two stereo talk mic inputs. All signals input at this port
can be level boosted or attenuated. In standard patch configuration, input cable fans out
to 12 XLR females.
In 2 (90-pin Elco): Control Room Busses, Monitor A, B, C, D, and Solo busses inputs.
This connector receives eight Monitor A channels, and two each channels for Monitor
B, C, D. Signals input at this port can only be level attenuated. In standard configuration
these signals are fed from the AM713 converter.
Out 1 (90-pin Elco): Monitor A, B, C, D Speaker outputs. This connector outputs eight
Control Room channels, eight Monitor A channels, and two each channels for Monitor
B, C, D, and Solo. The output cable fans out to two 38-pin Elco connectors for the Eu-
phonix Patchbay.
Out 2 (90-pin Elco): This connector outputs eight Control Room Main channels, six
Control Room Alt 1 channels, two Control Room Alt 2 channels, four Listen pre, two
talk pre and two Solo channels. The output cable fans out to two 38-pin Elco connectors
for the Euphonix Patchbay.
Out 3 (DB-25 female): This connector outputs four Listen pre, two Talk Back pre, and
two Solo channels, eight Monitor A channels, and two channels each for Monitor B, C,
D, and Solo. The output cable fans out to eight male XLR connectors.
Control (DB-15): Input for digital control signal from Digital Pilot. Signal format is
Euphonix TCC bi-directional serial protocol. All patching, switching, and gain controls
are communicated via this connection as well as MC524 IP address.
AC Line In (IEC) and Fuse Tray: The power connector accepts standard IEC power
cords. 110, 220, or 240 VAC, 50/60 Hz can be applied at this connector.

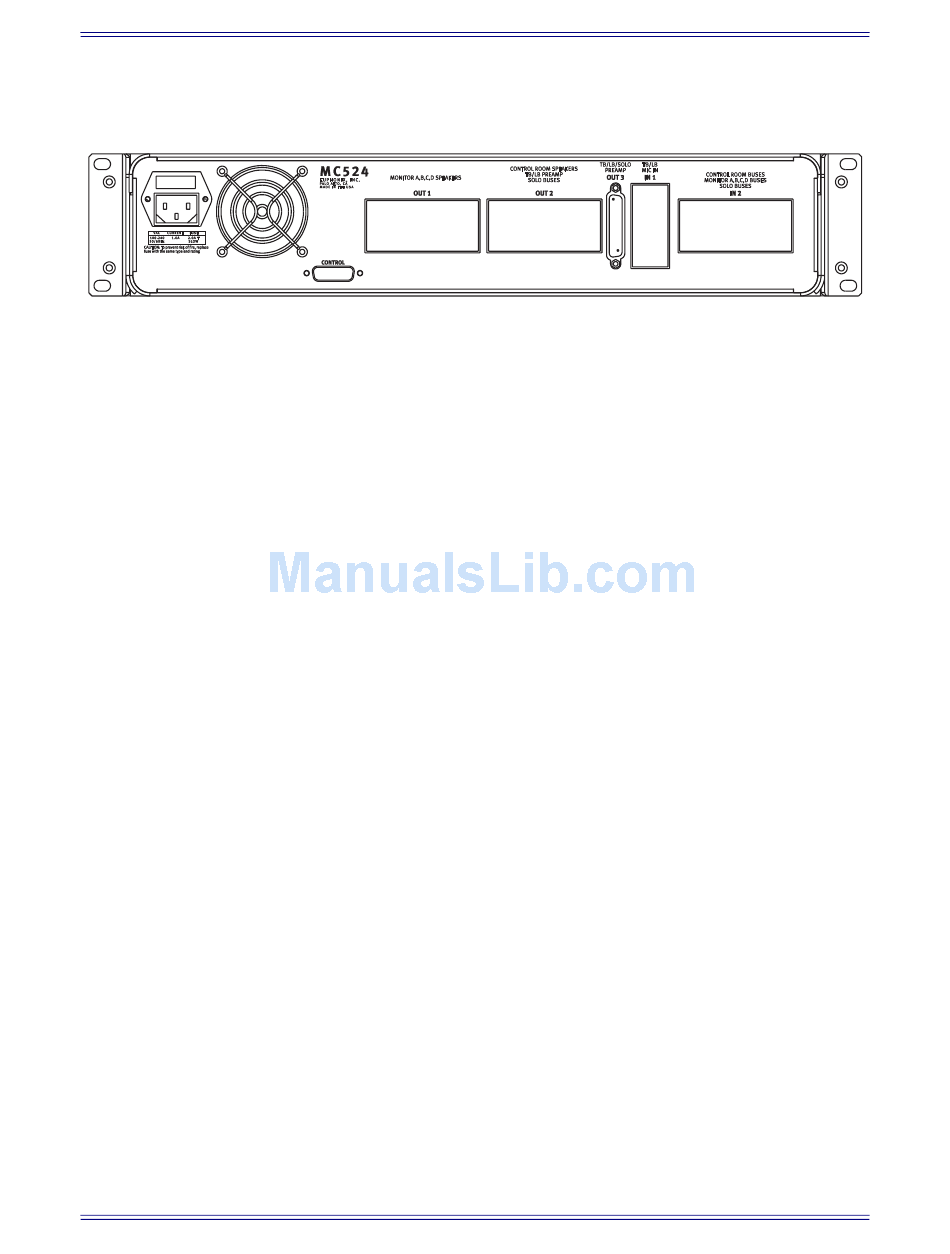

Figure 2 MC524 Rear Panel
10
