Mic-Line Interface Operation Manual
Euphonix, Inc.
220 Portage Ave.
Palo Alto, California 94306
Phone:
650-855-0400
Fax:
650-855-0410
Web:
http://www.euphonix.com
e-mail:
info@euphonix.com
Euphonix ML530
Document Revision: 2.2
Release Date: May, 2005
Part Number: 840-07522-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML530 and is the answer not in the manual?

Questions and answers

Summary of Contents for Euphonix ML530

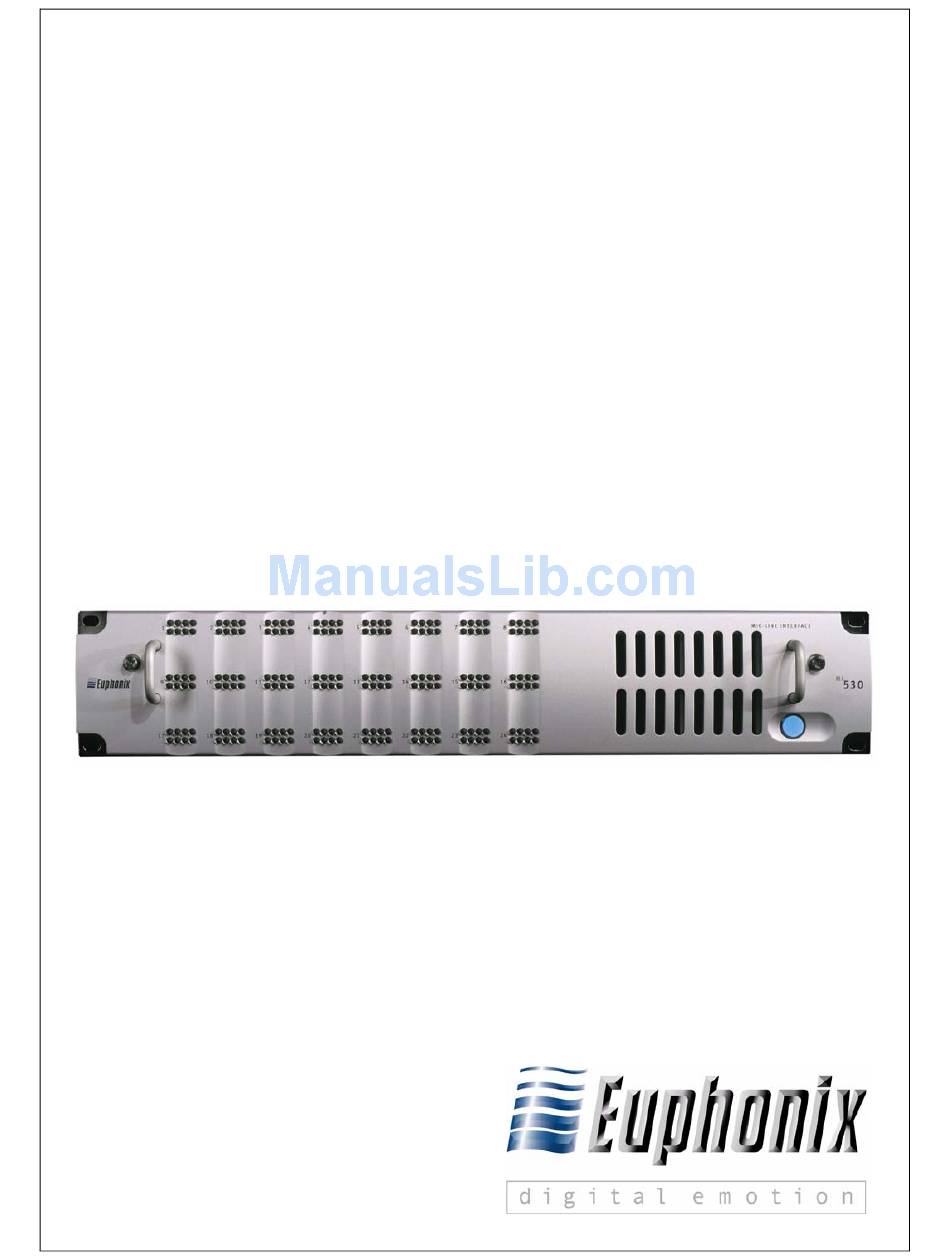

  • Page 1 Euphonix ML530 Mic-Line Interface Operation Manual Document Revision: 2.2 Release Date: May, 2005 Part Number: 840-07522-03 Euphonix, Inc. 220 Portage Ave. Palo Alto, California 94306 Phone: 650-855-0400 Fax: 650-855-0410 Web: http://www.euphonix.com e-mail: info@euphonix.com...
  • Page 2 In the interest of continued product development, Euphonix Inc. reserves the right to make improvements in this manual and the products it describes at any time, without notice or obligation. System 5, S5, Max Air, PatchNet, eMix, EuCon, R-1, Audio Deck, Studio Hub are trademarks of Euphonix, Inc.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The lighting flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons. The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
  • Page 4 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 5: Table Of Contents

    Euphonix ML530 Mic-Line Interface Operation Manual Table of Contents List of Figures ........................vi List of Tables ........................vii Overview.......................8 Features .........................8 Applications ......................8 Front Panel ......................9 Rear Panel ......................10 Specifications ......................11 User Reference....................13 Standard Configuration ................13 Optional Input Patch................15...
  • Page 6: List Of Figures

    Euphonix ML530 Mic-Line Interface Operation Manual List of Figures ML530 Front Panel ......................9 Front Panel Channel Status LEDs ..................9 ML530 Rear Panel ......................10 ML530 Standard Cable Diagram ..................13 ML530 Standard Configuration ..................14 Input Patch Cable Diagram ....................15 Input Patch Configuration ....................16 ML530 In 1/In 2 Pinout: Elco 38 Socket ................17...
  • Page 7 Euphonix ML530 Mic-Line Interface Operation Manual List of Tables Performance Specifications ................... 11 Environmental and Power Specifications ..............12 ML530 Physical Dimensions ..................12 ML530 Standard Cable Specification ................14 Input Patch Cable Specifications ................... 15...
  • Page 8: Overview

    964-06692-01). Applications Used in conjunction with the Euphonix AM713 analog to MADI converter, the ML530 provides multiple variable gain inputs for the System 5 or Max Air. Additional ML530s can be added if more than 24 channels of variable gain inputs are desired.
  • Page 9: Front Panel

    Euphonix ML530 Mic-Line Interface Operation Manual Front Panel MIC LINE INTERFACE Figure 1 ML530 Front Panel Power Switch: The power switch, on the lower right, turns the unit on/off. Status LEDs: Eight LEDs provide status information for each of the 24 channels: •...
  • Page 10: Rear Panel

    AM713 Analog to MADI converter. See Elco 38 Input/Output Pinout on page 17. Control (DB-15): Input for digital control signal from PC253i Digital Pilot. Signal for- mat is Euphonix TCC bi-directional serial protocol. All switching and gain controls are communicated via this connector.
  • Page 11: Specifications

    Euphonix ML530 Mic-Line Interface Operation Manual Specifications Table 1 Performance Specifications Gain Range -12 dB to 72 dB in 0.5 dB increments Phantom Power +48 V ±2% (Switched per channel) Maximum Input Level 41 dB (Pad inserted, unity gain, @1 kHz, @1% THD+N) 200 kΩ...
  • Page 12: User Reference

    Euphonix ML530 Mic-Line Interface Operation Manual Table 3 ML530 Physical Dimensions Height 3.5 inches Width 19 inches Depth 18.6 inches Weight 17 lb NOTE: Leave about six inches behind the ML530 for cable connections. User Reference Standard Configuration recommended locations...
  • Page 13: Ml530 Standard Cable Specification

    Euphonix ML530 Mic-Line Interface Operation Manual The standard lengths specified in Table 4 and Table 5 are supplied so the mic-line in- terface can be located in the control room. Custom lengths are available and cable kits must be ordered separately.
  • Page 14: Ml530 Standard Configuration

    Euphonix ML530 Mic-Line Interface Operation Manual AM713 MADI MADI out to Studio Hub 12 male XLR to one AES/EBU Sync In male Elco 38 from Sync DA Mic/Line Analog Out Control from PC253i Elco crimp pins and hoods for user...
  • Page 15: Optional Input Patch

    Euphonix ML530 Mic-Line Interface Operation Manual Optional Input Patch recommended locations Digital Core AM713 Note: The optional input patchbay has the capacity to provide input patching to 48 channels or two ML530 Interfaces. An additional set of cable D is required for the second ML530 interface.
  • Page 16: Input Patch Configuration

    Euphonix ML530 Mic-Line Interface Operation Manual AM713 MADI MADI out to Studio Hub 12 male XLR to AES/EBU Sync In one male Elco 38 from Sync DA Mic/Line Analog Out Control from PC253i Interface Pilot one male Elco 38 to...
  • Page 17: Elco 38 Input/Output Pinout

    Mic Pre Out 12 / Out 24 To AM713 Analog In 12 / In 24 Figure 5-2 ML530 Out 1/Out 2 Pinout: Elco 38 Socket Connector Specifications 38-pin male w/ hood Elco P/N 00-8016-038000-519 (Euphonix P/N 100-02099) Use crimp pins Elco P/N 60-8017-031300-339 (Euphonix P/N 100-02100)
