Physical Specifications

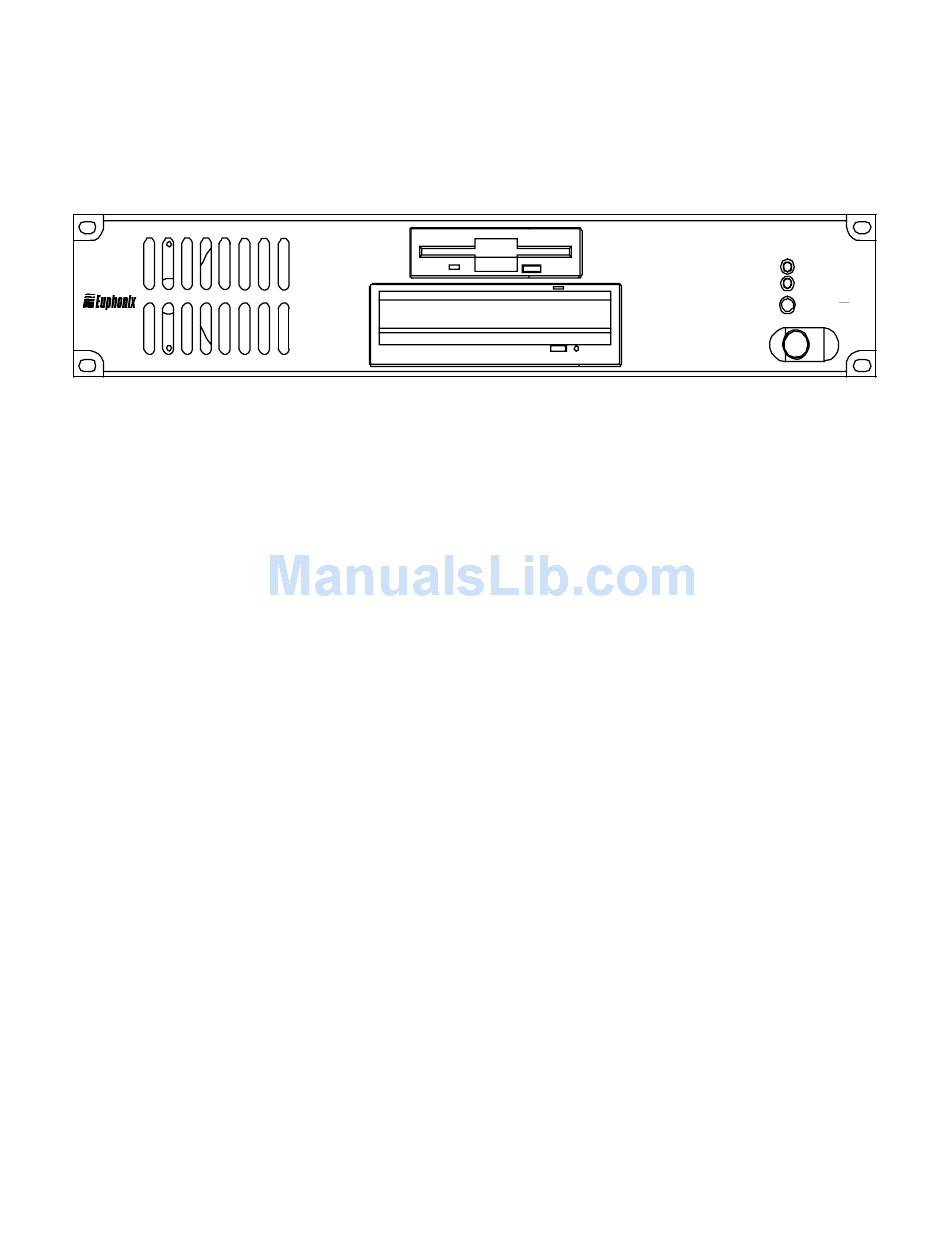

Front Panel

Dimensions

Front Panel Features

3.5" Floppy Drive
housekeeping duties.
24X CD ROM Drive
OS Drive LED
SCSI LED
Reset Button
panel so it will not be accidentally pressed.
Power Switch
©1999 Euphonix, Inc.
Height: 3.5 inches
Width: 19 inches
Depth: 18 inches
Weight: 25 lbs
For upgrading system software, back up of Title files, or other system
For upgrading system software.
Indicates the Operating System (DOS) drive is active.
Indicates Pilot SCSI network is active. This is currently not implemented.
Can be used for a 'warm' reboot of Pilot. This button is recessed into the front
On/Off button lights when unit is powered up.
THERE ARE NO USER SERVICEABLE PARTS IN THE PILOT COMPUTER
Page 6 Pilot Computer Manual
PILOT COMPUTER
OS DRIVE
SCSI
PC
252
RESET
