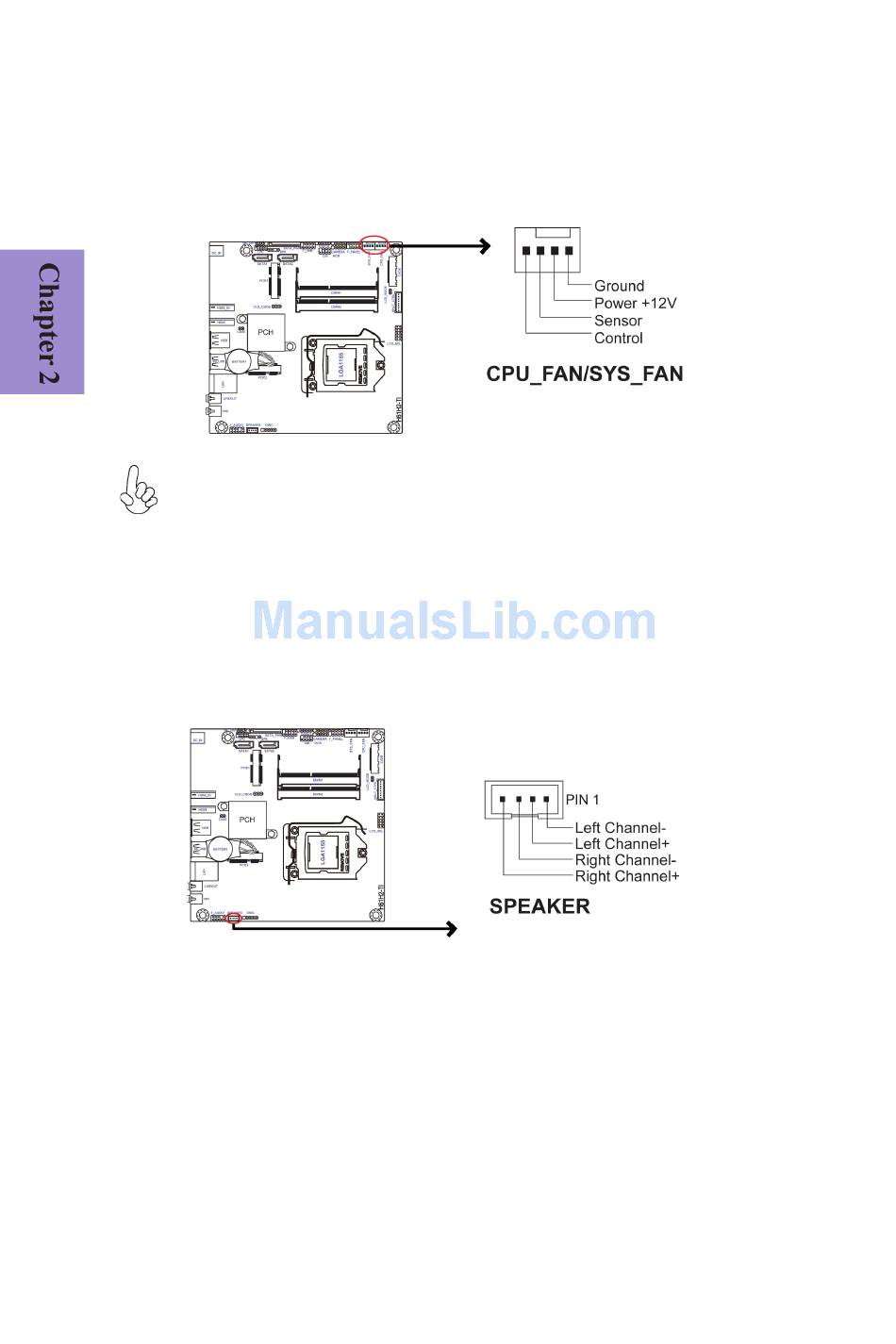

2 & 3 . SYS_FAN (System Cooling FAN Power Connector) &CPU_FAN (CPU cool-
ing FAN Power Connector)
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
4. SPEAKER: 2 Channels audio speaker header (optional)
Connect the case speaker cable to SPEAKER.
This concludes Chapter 2. The next chapter covers the BIOS.
28
H61H2-TI USER MANUAL
