Installing Memory Modules

This motherboard accommodates two memory modules. It can support two 240-pin
DDR2 800/667/533/400. The total memory capacity is 16 GB.
DDR2 SDRAM memory module table
Memory module
DDR2
DDR2
DDR2
DDR2
You must install at least one module in any of the two slots. Each module can be
installed with 8 GB of memory.
Do not remove any memory module from its antistatic packaging
until you are ready to install it on the motherboard. Handle the
modules only by their edges. Do not touch the components or metal
parts. Always wear a grounding strap when you handle the mod-
ules.
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR2 SDRAM only.
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.

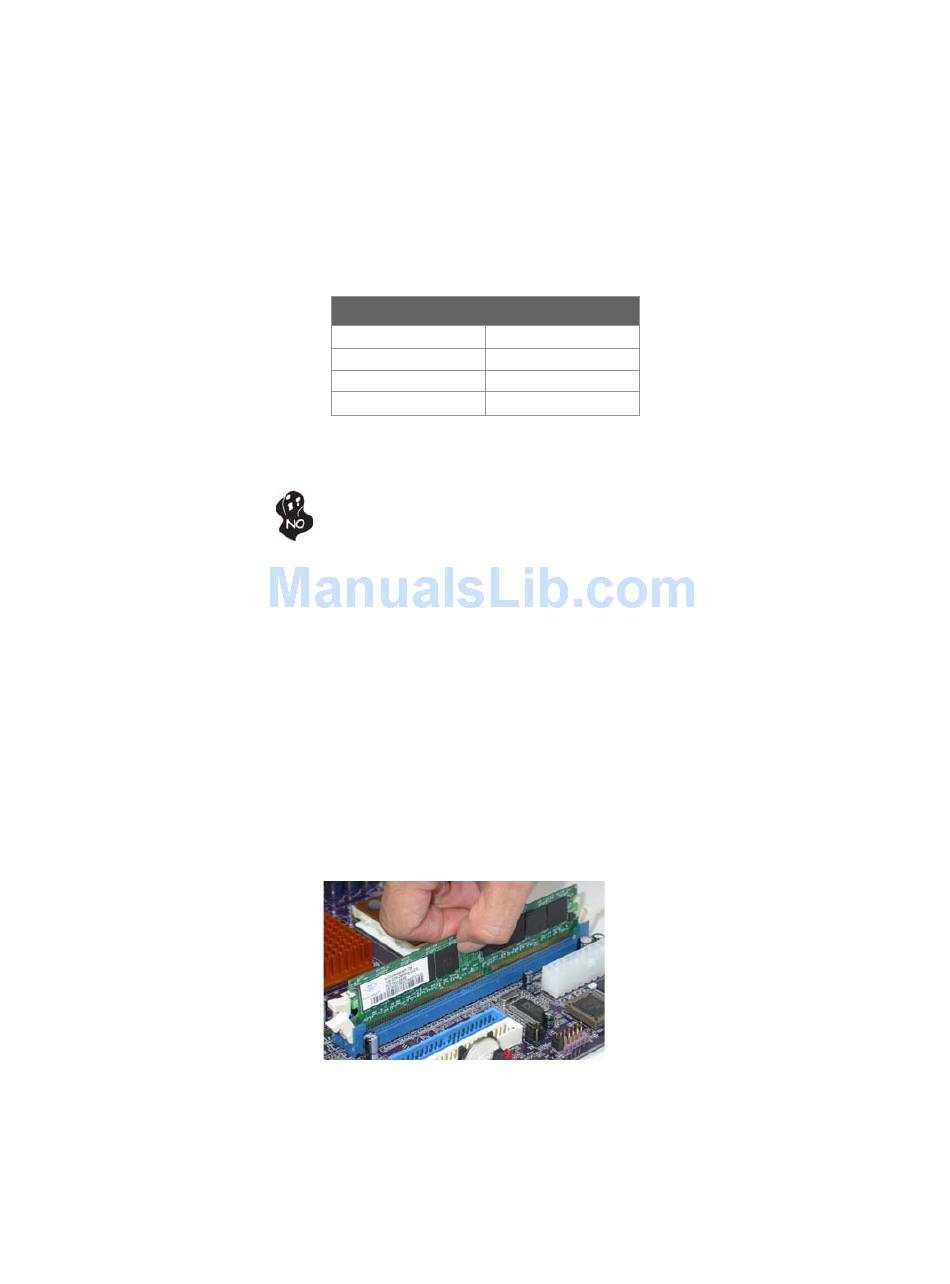

5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Install any remaining DIMM modules.
Installing the Motherboard
Memory Bus
400 200 MHz
533 266 MHz
667 333 MHz
800 400 MHz
15
