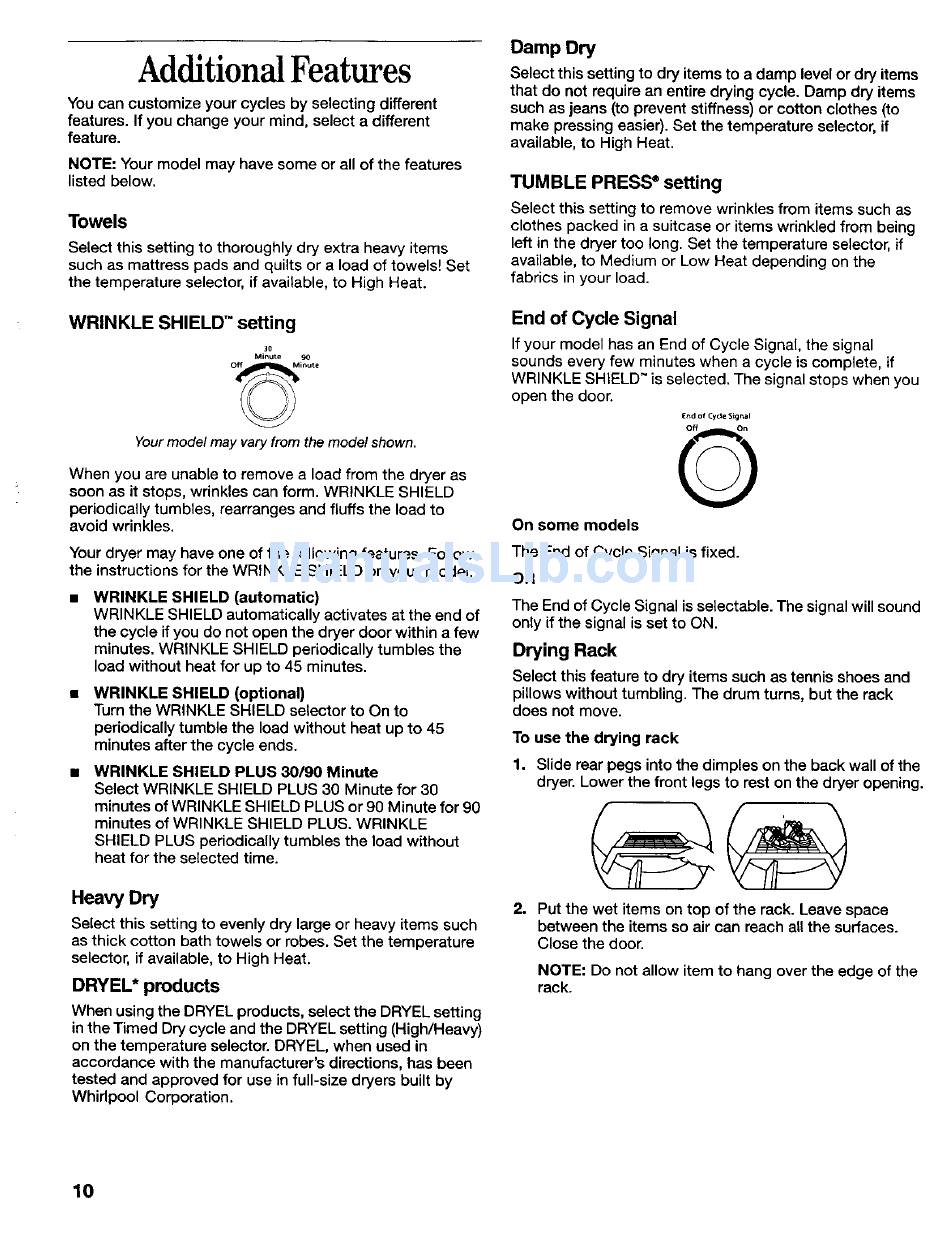

AdditionalFeatures
You can customize your cycles by selecting different
features. If you change your mind, select a different
feature.
NOTE: Your model may have some or all of the features
listed below.
Towels
Select this setting to thoroughly dry extra heavy items
such as mattress pads and quilts or a load of towels! Set
the temperature selector, if available, to High Heat.
WRINKLE SHIELD" setting
30
Minute
90
Your model may vary from the model shown.
When you are unable to remove a load from the dryer as
soon as it stops, wrinkles can form. WRINKLE SHIELD
periodically tumbles, rearranges and fluffs the load to
avoid wrinkles.
Your dryer may have one of the following features. Follow
the instructions for the WRINKLE SHIELD on your model.
WRINKLE SHIELD (automatic)
WRINKLE SHIELD automatically activates at the end of
the cycle if you do not open the dryer door within a few
minutes. WRINKLE SHIELD periodically tumbles the
load without heat for up to 45 minutes.
WRINKLE SHIELD (optional)
Turn the WRINKLE SHIELD selector to On to
periodically tumble the load without heat up to 45
minutes after the cycle ends.
WRINKLE SHIELD PLUS 30190 Minute
Select WRINKLE SHIELD PLUS 30 Minute for 30
minutes of WRINKLE SHIELD PLUS or 90 Minute for 90
minutes of WRINKLE SHIELD PLUS. WRINKLE
SHIELD PLUS periodically tumbles the load without
heat for the selected time.
Heavy Dry
Select this setting to evenly dry large or heavy items such
as thick cotton bath towels or robes. Set the temperature
selector, if available, to High Heat.
DRYEL* products
When using the DRYEL products, select the DRYEL setting
in the Timed Dry cycle and the DRYEL setting (High/Heavy)
on the temperature selector. DRYEL, when used in
accordance
with the manufacturer's
directions, has been
tested and approved for use in full-size dryers built by
Whirlpool Corporation.
Damp Dry
Select this setting to dry items to a damp level or dry items
that do not require an entire drying cycle. Damp dry items
such as jeans (to prevent stiffness) or cotton clothes (to
make pressing easier). Set the temperature selector, if
available, to High Heat.
TUMBLE PRESS ®setting
Select this setting to remove wrinkles from items such as
clothes packed in a suitcase or items wrinkled from being
left in the dryer too long. Set the temperature selector, if
available, to Medium or Low Heat depending on the
fabrics in your load.
End of Cycle Signal
If your model has an End of Cycle Signal, the signal
sounds every few minutes when a cycle is complete, if
WRINKLE SHIELD
TM
is selected. The signal stops when you
open the door.
End of Cycle Signal
On some models
The End of Cycle Signal is fixed.
OR
The End of Cycle Signal is selectable. The signal will sound
only if the signal is set to ON.
Drying Rack
Select this feature to dry items such as tennis shoes and
pillows without tumbling. The drum turns, but the rack
does not move.
To use the drying rack
1. Slide rear pegs into the dimples on the back wall of the
dryer. Lower the front legs to rest on the dryer opening.
2. Put the wet items on top of the rack. Leave space
between the items so air can reach aU the surfaces.
Close the door.
NOTE: Do not allow item to hang over the edge of the
rack.
10
