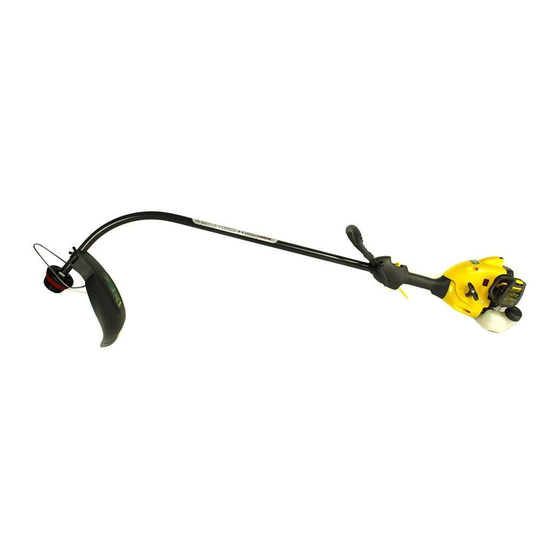

Weed Eater TE475 Instruction Manual

Hide thumbs Also See for TE475:

Instruction manual (38 pages)

Instruction manual (15 pages)

Instruction manual (15 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the TE475 and is the answer not in the manual?

Questions and answers

Robert

May 6, 2025

Fuel line off

1 comments:

Mr. Anderson

May 18, 2025

To reattach the fuel line on a Weed Eater TE475:

1. Use pliers and a socket set for the repair.
2. Identify the correct replacement parts (e.g., part numbers 530069247, 530069216, 530095646).
3. Remove the old, dry-rotted fuel lines from the carburetor and fuel tank.
4. Insert the new fuel line through the fuel tank opening. Ensure one line reaches the bottom of the tank to supply fuel.
5. Attach the other end of the fuel line to the carburetor.
6. If there is a return or purge line, connect it from the carburetor back to the top of the tank.
7. Ensure all connections are tight and secure.

Total repair time is about 15–30 minutes.

This answer is automatically generated

Summary of Contents for Weed Eater TE475

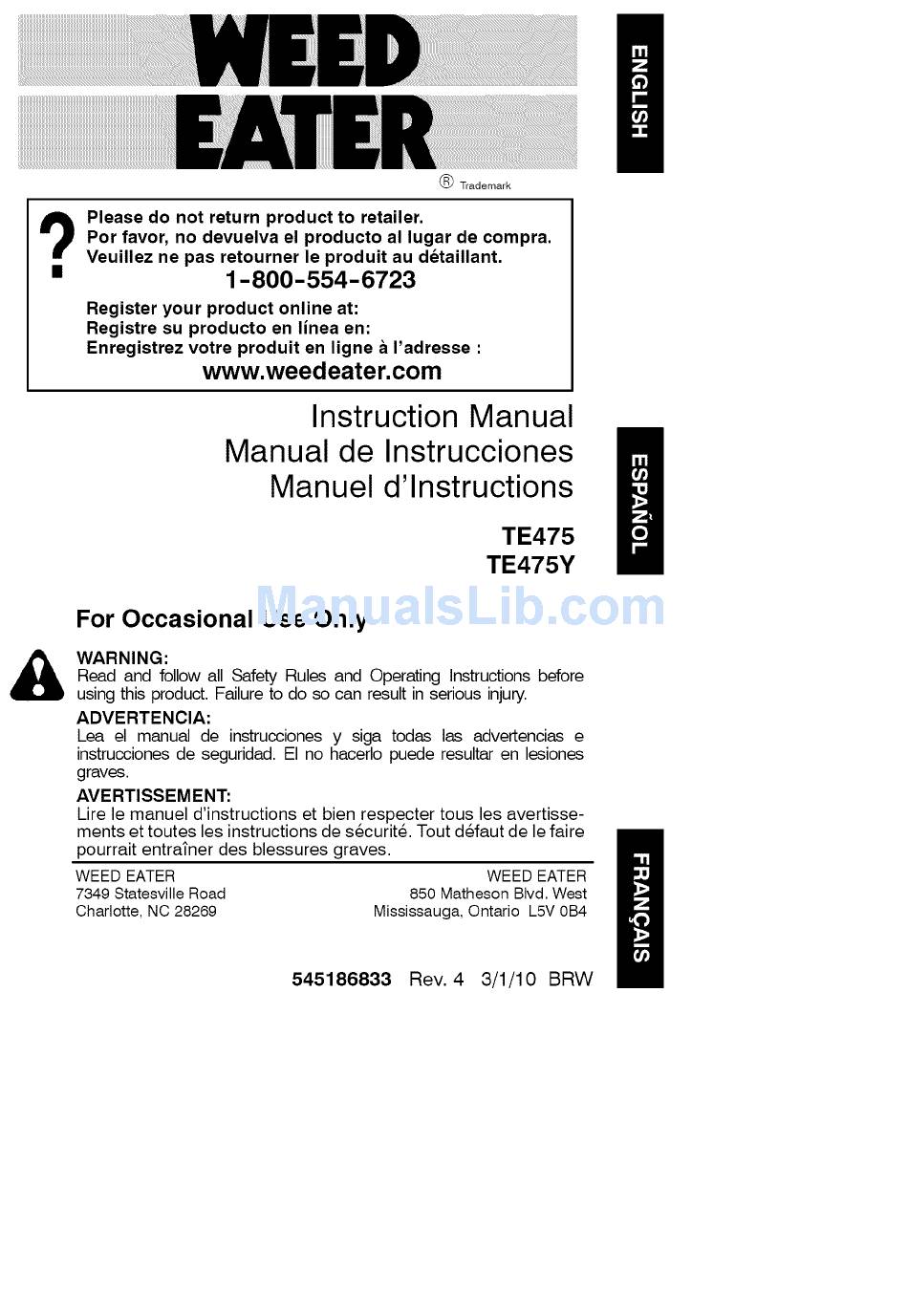

Page 1 Tout d6faut de le faire pourrait entra_ner des blessures graves. WEED EATER WEED EATER 7349 Statesville Road 850 Matheson Blvd. West Charlotte, NC 28269 Mississauga, Ontario L5V 0B4 545186833 Rev.
Page 2 ,_/LDANGER: Use only specified trimmer head, spool, and 0.080 inch (2 mm) recommended trim- mer line. Never use blades, flailing devices, wire, rope, string, etc. Unit is designed for line trimmer use only. Failure to follow these instructions ®®®® result in serious injury.
Page 3 Store unit indoors inahigh, dry place out of t he reach of children. When servicing unit, use o nly i dentical replace- ment parts. Always stop u nit and d isconnect spark plug b efore cleaning or servicing. j _se lhWeAuRNnleNarG afrirehazsardarNe_erclumi_nP°U rmo_ris_°repga_/ines°,ror work that can cause sparks).
Page 4 • Secure hair above shoulder length. Secure • Keep others including children, animals, remove loose clothing or clothing with l oosely bystanders, and helpers at least 50 feet (15 hanging ties, straps, tassels, etc. T hey can meters) away. Bystanders should be encour- be caught inmoving parts.
Page 5 For n ormal homeowner use, the muffler After 50 hours of use, we recommend that your muffler be serviced or replaced by your autho- spark arresting screen will not require any ser- rized service dealer. vice. ATTACHING SHIELD m_WARNINu: If received assembled, WARNING: repeat all steps to ensure your unit is properly...
Page 6 STOP S WITCH CHOKE The S TOP switch is used tostop the engine. The C HOKE helps tosupply fuel tothe e ngine stop t he e ngine, push and h old the s witch in the to aid in cold starting. Activate the choke by STOP position until the engine...
Page 7 STARTING A FLOODED ENGINE Primer Bulb Flooded engines can be started by placing the choke lever in the RUN position; then, pull the rope to clear the engine of excess fuel. This could require pulling the starter handle many times depending on how badly the unit is flooded.
Page 8 TRIMMER LINE ADVANCE The cutting head advances line automati- Trimming cally, Do not tap head on the ground to ad- vance line. This may break parts and cause cutting head to malfunction. Upon unit start up, the line will advance auto- matically to the correct cutting path length.
Page 9 EDGING - Adjust trimmer to the edging posi- tion (see TWIST AND EDGE section). Allow only the tip of the line to make contact. Do not force trimmer line into work area. Edging Clean the air filter cover and the area aWARNIN_: around it to keep dirt from falling into the Disconnect...
Page 10: Line Replacement
LINE REPLACEMENT INSTALLING SPOOL WITH LINE Pre-wound spools offer the most convenient Install replacement spool. method for r eplacing line and Thread line through line guide ring. e nsuring opti- mum performance. Line through guide ring * Replacement spools are color-coded to en- sure use of the correct spool with your unit.
Page 11 Follow the mix instructions found on stabilizer m_WARNINu: P erform the following container. Run engine at least 5 minutes after steps after each use: adding stabilizer. • Allow engine to cool, and secure the unit before storing or transporting. • Store unit and fuel in awell ventilated area where fuel vapors cannot...
Page 12 TROUBLESHOOTING TABLE WARNI Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. CAUSE REMEDY TROUBLE 1. Engine flooded. Engine will not 1. See "Starting a Flooded Engine"...
Page 13 Magnuson-Moss This warranty does not cover pre-delivery of 1975. setup or normal adjustments explained in the The policy of WEED EATER is to continuously instruction manual. This warranty does not improve products. Therefore, WEED cover transportation costs.
Page 14 WEED EAT- You are responsible for presenting your small off-road engine to an WEED EATER authorized ER may be liable for damages to other engine repair center as soon as a problem exists. War- components caused by the failure of a war-...
