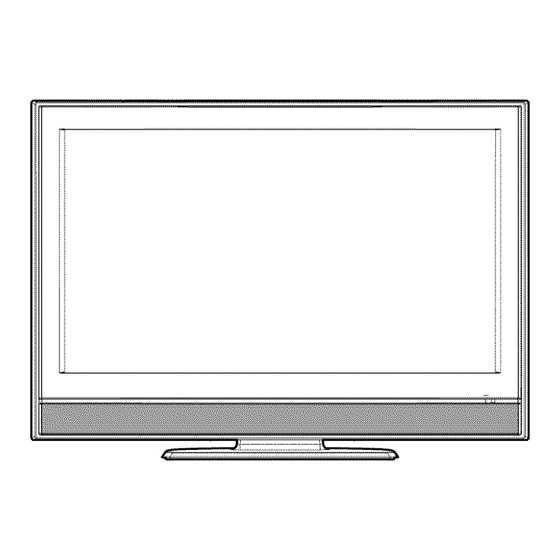

37" WIDE TFT LCD TELEVISION
WITH DIGITAL TUNER
HDLCD3700D
((jllmllm_
)DOLBY
HlOll-rl(
TM
..........................
OIGITAL I
.,_..,_, ,,.,,o,_ .o ,,. ,,,_ , ,...=^o
T
................
..........................
..........
I
ATTENTION
1
If you purchase
a universal remote control from your local retailer, please contact the remote manufac-
turer for the required programming
code.
I
Air/Cable
MODE
SELECTION
1
When shipped from tile factory, the Signal Type option is set to the "Cable" (Cable Television) modem if
not using Cable TV, set this menu option to the "Air" position.
IF CONTACT
WITH CUSTOMER
SERVICE
IS REQUIRED
PLEASE
HAVE THE MODEL
NUMBER
READY PRIOR TO THE CALL
CUSTOMER SERVICE-
1-800-289-0980
ORLON WEBSITE
FOR INFORMATION
ON OUR OTHER PRODUCTS,
PLEASE VISIT OUR WEBSITE
AT
www.orionsalesinc.com
Before operating the unit, please read this manual thoroughly.
Advertisement
Table of Contents
Related Manuals for Sansui HDLCD3700D
Summary of Contents for Sansui HDLCD3700D
- Page 1 ow. .,s /If SAN S U 37" WIDE TFT LCD TELEVISION WITH DIGITAL TUNER HDLCD3700D ((jllmllm_ )DOLBY HlOll-rl( ......,_..,_, ,,.,,o,_ .o ,,. ,,,_ , ,...=^o OIGITAL I ............ If you purchase a universal remote control from your local retailer, please contact the remote manufac- ATTENTION turer for the required programming code.
- Page 2 The lightning flash with arrowhead symbol, within an equilateral triangle CAUTION is intended to alert the user to the presence of uninsutated dangerous voltage within the product's enclosure that may be of sufficient magnitude constitute a risk of electric shock. CAUTION: TO REDUCE THE RISK OF ELECTRIC...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a clean dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information...
-
Page 5: Safety Precautions
IMPORTANT SAFETY INSTRUCTIONS CONDENSATION Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired. -
Page 6: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ........SAFETY PRECAUTIONS .............. Contents ..................Features ..................Power source ................. Parts and functions ................ Remote control ................Antenna connections ..............Cable TV connections ..............Connections to other equipment ..........Setting the language ..............Memorizing channels ..............TV operation ................ -
Page 7: Features
Featu res • Integrated Digital Tuner -You can view digital broadcasts without using a Digital TV Set-Top Box. • Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. •... -
Page 8: Parts And Functions
Parts and functions Front Right side > CHANNEL I/v buttons VOLUME +/- buttons MENU button INPUT button POWER button Remote sensor POWER indicator Red: Standby Green: On Back side MON#OR _ PC MONITOR IN jack PCiHDMI AUDIO _ PC/HDMI AUDIO IN jack HDMI 1 IN jack HDMI2 III_ HDMI... -
Page 9: Remote Control
Remote control 6.CH (CHANNEL) +/-/CURSOR • / • Buttons - Used to operate the menu functions of the LCD TV, and to change the channels of the LCD TV. 7. MENU Button - Use to display the On-Screen menu function. 8. -
Page 10: Antenna Connections
Antenna connections If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 11 for Cable TV connections. Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire) Connect the 75 ohm cable from the combination Antenna... -
Page 11: Cable Tv Connections
Cable TV connections This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box, Some cable companies offer "premium pay channels" where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler... -
Page 12: Connections To Other Equipment
Connections to other equipment The exact arrangement you use to interconnect various video and audio components to the LCD TV is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs. - Page 13 Connections to other equipment To connect the LCD TV to a DVD player/Satellite receiver If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown. Rear of the LCD TV To S-VIDEO To S-Video S-Video cord (not supplied) Audio cord (not supplied) ¢_ To AVl AUDIO (L/R) IN...
- Page 14 Connections to other equipment To connect the LCD TV to a DTV receiver/set-top If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a component video cord. Rear of the LCD TV HDMI 2 TO COMPONENT To Component II I...
- Page 15 Connections to other equipment To connect the LCD TV to a Game or a Camcorder The LCD TV can also be used as a TV device for many video games or camcorders. However, due to the wide variety of signals generated by these devices and subsequent hook-up...
- Page 16 Connections to other equipment To connect an audio system This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV's remote control. To control the audio, turn on the TV and the stereo amplifier, and turn off the TV's built-in speakers (see "Turning off the built-in speakers"...
-
Page 17: Setting The Language
Setting the language You can choose from three different languages (English, French and Spanish) for the on-screen displays. Select the language you prefer first, then proceed with the other menu options. Press EXIT to return to the normal screen. To turn on the TV, press POWER. CABLE CHART (POWER... -
Page 18: Tv Operation
Adding Channel If you find a new channel unregistered, you can add the new channel into the channel memory. Tune in the new channel. Press MENU.The menu screen will appear. Press EXIT to return to the normal screen. Press • or • to select"Channer', then press •... -
Page 19: Labeling Channels
RECALL NOTE: • If a channel with no broadcast is selected, This button allows you to go back to the last channel sound will automatically be muted. selected by pressing RECALL. Press RECALL again • It may take a few seconds for a digital channel to return to the last channel you were watching. -
Page 20: Labeling Video Inputs
To register a password [* 0"'9 _AI'_ZpA_-' '0_/+=-_] Press MENU.The menu screen will appear. Press • or • to select "Lock", then press • or If the character which you desire appears, press ENTER. ENTER. Select and enter your password (4 digits) using Repeat this step to enter the rest of the Number... -
Page 21: Closed Caption
Movie Rating If the TV is not storing the additional rating system, the TV will begin downloading it, which may take some time to be completed. Set your preferred content rating limits for the additional rating system. You also need "Update" procedure to update rating information. -
Page 22: Cc Advanced
Press • or • to select"Analog Caption" or"Digital Press • or • to select "Closed Caption", then Caption". press • or ENTER. The Closed Caption menu will appear. When you select "Analog Caption", you can Press • or • to select "Digital CC Preset", then choose C1, C2, C3, C4, T1, T2, T3 and T4. -
Page 23: Picture Control Adjustment
Press • or • to select "Picture Setting", then Quality press • or ENTER. nd dynamic picture (factory-set) The Picture Setting menu will appear. rd picture quality (factory-set) Press • or • to select "Color Temperature", then ike picture setting (factory-set) press •... -
Page 24: Film Mode
Film Mode Cinema Wide1 picture size (for 4:3 format programs) To fill the screen, the right and left edges are A smoother motion may be obtained by setting extended, the Film Mode to "On" when you view a DVD from however;... -
Page 25: Dnr
Selecting Stereo/Second After adjusting, press ENTER to return to the PC Setting menu. Then continue to adjust the other Audio Program (SAP) items. Press EXIT to return to the normal screen. The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. -
Page 26: Selecting The Hdmi Audio Input Source
Selecting the HDMI audio input source When you use PC/HDMI AUDIO IN jacks with HDMI or DVI device, you must select HDMI audio input source from "HDMI" or "DVI', Press < or • to adjust the setting. Press EXIT to return to the normal screen. Press MENU.The menu screen will appear. -
Page 27: Reception Disturbances
Reception d istu rbances Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV... -
Page 28: Troubleshooting
Troubleshooting Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units. rSYMPTOMS POSSIBLE SOLUTIONS •... -
Page 29: Specifications
Specifications AC 120 V 60 Hz Power supply: Power consumption: Operation: 175 W Stand by: Weight: 35.3 Ibs (16.0 kg) Dimensions: Width: 37-3/8 inches (949 mm) Height: 27-3/8 inches (695 mm) Depth: 11-1/8 inches (283 mm) Inputs: VIDEO: 1 V (p-p)/75 ohms AUDIO: -8 dBm/50k ohms... -
Page 30: Limited Warranty
tJSANSUI® LIMITED WARRANTY 37" WIDE LCD TELEVISION ORION warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of 1 year from date of original purchase in the United States. Should service be necessary under this warranty... - Page 31 Memo...
