Faber AXIA ISOLA 630000815 Dimension Manual

Axia Isola
a sophisticated silhouette
island canopy rangehood
°
sleek styling
°
600 cfm PRO motor
°
Silent Kit noise reduction
°
4 halogen lights
°
3 speed control
°
integrated control panel
°
stainless steel baffle filters
°
modified pro depth
°
convertible to ductless*
°
adjustable mounting system
°
Easy Cube motor access
°
sone range: 3.5 - 6.5
°
6" round duct
°
* it is highly recommended that professional
style cooking always be vented to the
outside.
Size/Color/Model #
36 x 29 Stainless
48 x 29 Stainless

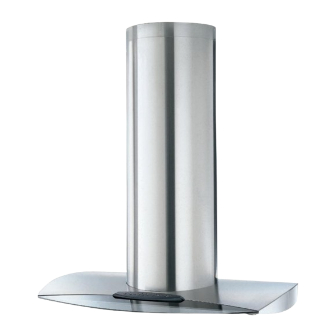

The slim stainless steel and
glass profile of the Axia Isola
is perfect for the sleek and
modern kitchen. The quiet,
600 cfm PRO motor is located
in the chimney, allowing for an
ultra thin canopy and room for
a view. Part of the
collection, the Axia Isola
looks and performs equally well
over professional or European
style cooking surfaces.
a c c e s s o r i e s
Ductless Conversion Kit
Includes: • Lower Chimney with hole for
ducting • Ductless Diverter Assembly •Vent
Grate • Charcoal Filter
Stainless
Replacement Charcoal Filter 620000041
p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: info@faberonline.com • www.faberonline.com
630000815
630001068
plus
Mounting Support
designer
plus
620000042
The hole in the ceiling for the ductwork should not be centered over the exact center of the cooking surface as the
duct work that runs up inside the chimney and through the ceiling is not in the exact center of the chimney.
Template
D E S I G N E R
pro-style baffle filters with
European flair and a built-in
grease control system; bright
halogen lights encircled
by a stylish stainless bezel
