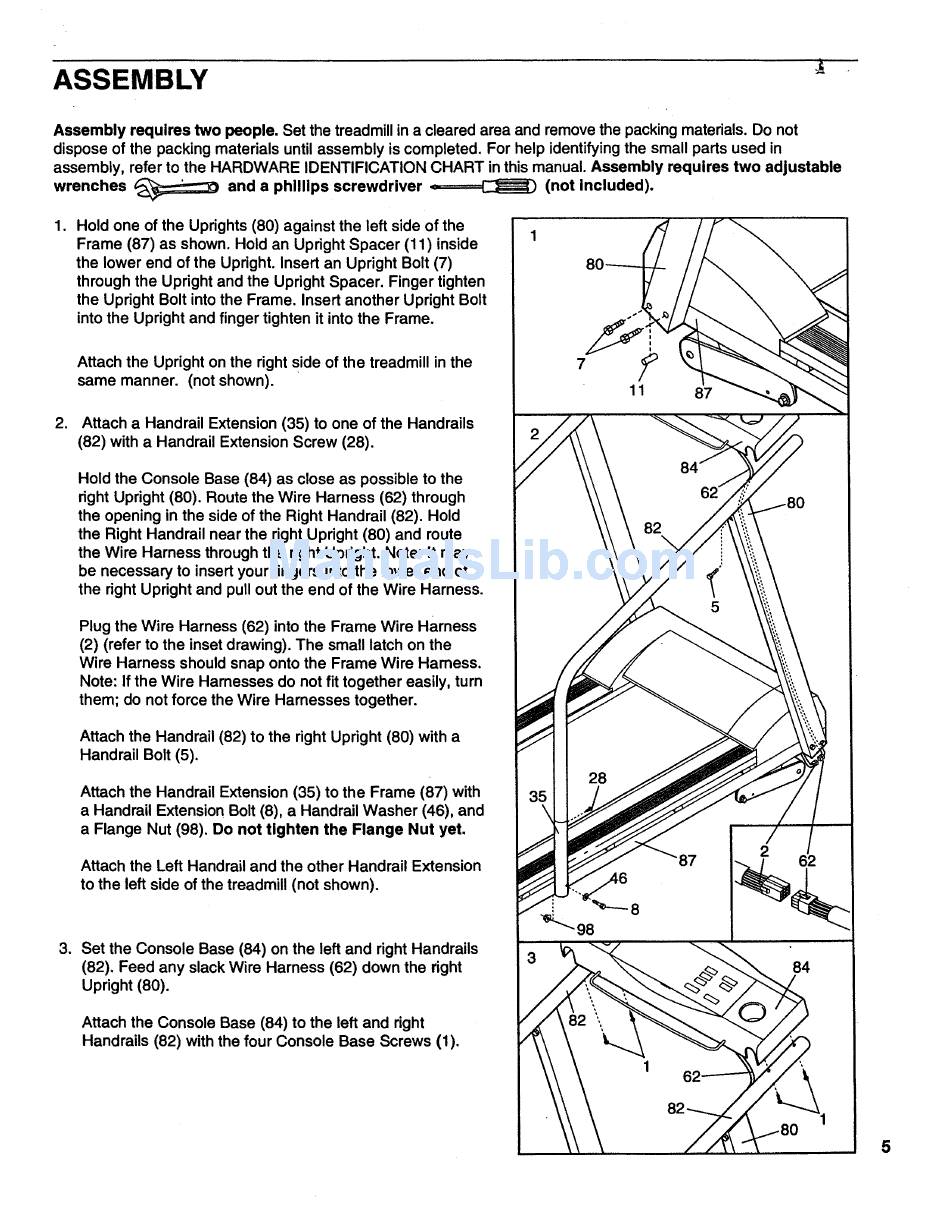

ASSEMBLY
Assembly requires two people, Set the treadmill in a cleared area and remove the packing materials. Do not
dispose of the packing materials until assembly is completed. For help identifying the small parts used in
assembly, refer to the HARDWARE IDENTIFICATION CHART in this manual. Assembly requires two adjustable
wrenches
_
and a phillips screwdriver
_
(not included).
o
Hold one of the Uprights (80) against the left side of the
Frame (87) as shown. Hold an Upright Spacer (11 ) inside
the lower end of the Upright. Insert an Upright Bolt (7)
through the Upright and the Upright Spacer. Finger tighten
the Upright Bolt into the Frame. Insert another Upright Bolt
into the Upright and finger tighten it into the Frame.
Attach the Upright on the right side of the treadmill in the
same manner.
(not shown).
°
Attach a Handrail Extension (35) to one of the Handrails
(82) with a Handrail Extension Screw (28).
Hold the Console Base (84) as close as possible to the
right Upright (80). Route the Wire Harness (62) through
the opening in the side of the Right Handrail (82). Hold
the Right Handrail near the right Upright (80) and route
the Wire Harness through the right Upright. Note: It may
be necessary to insert your fingers into the lower end of
the right Upright and pull out the end of the Wire Harness.
Plug the Wire Harness (62) into the Frame Wire Harness
(2) (refer to the inset drawing). The small latch on the
Wire Harness should snap onto the Frame Wire Harness.
Note: If the Wire Harnesses do not fit together easily, turn
them; do not force the Wire Harnesses together.
Attach the Handrail (82) to the right Upright (80) with a
Handrail Bolt (5).
Attach the Handrail Extension (35) to the Frame (87) with
a Handrail Extension Bolt (8), a Handrail Washer (46), and
a Flange Nut (98). Do not tighten the Flange Nut yet.
Attach the Left Handrail and the other Handrail Extension
to the left side of the treadmill (not shown).
3. Set the Console Base (84) on the left and right Handrails
(82). Feed any slack Wire Harness (62) down the right
Upright (80).
Attach the Console Base (84) to the left and right
Handrails (82) with the four Console Base Screws (1).
87
2
87
84
5
