SETUP AND CONNECTIONS
ADVANCED CONNECTIONS
Advanced connections give you better sound and vide() by separating
the audio and vide() signals and enabling you to connect multiple
components.
This section describes the types of inputs available on the back of your
TV and suggests ways you can use them for optirnurn performance.
BACK OF THETV

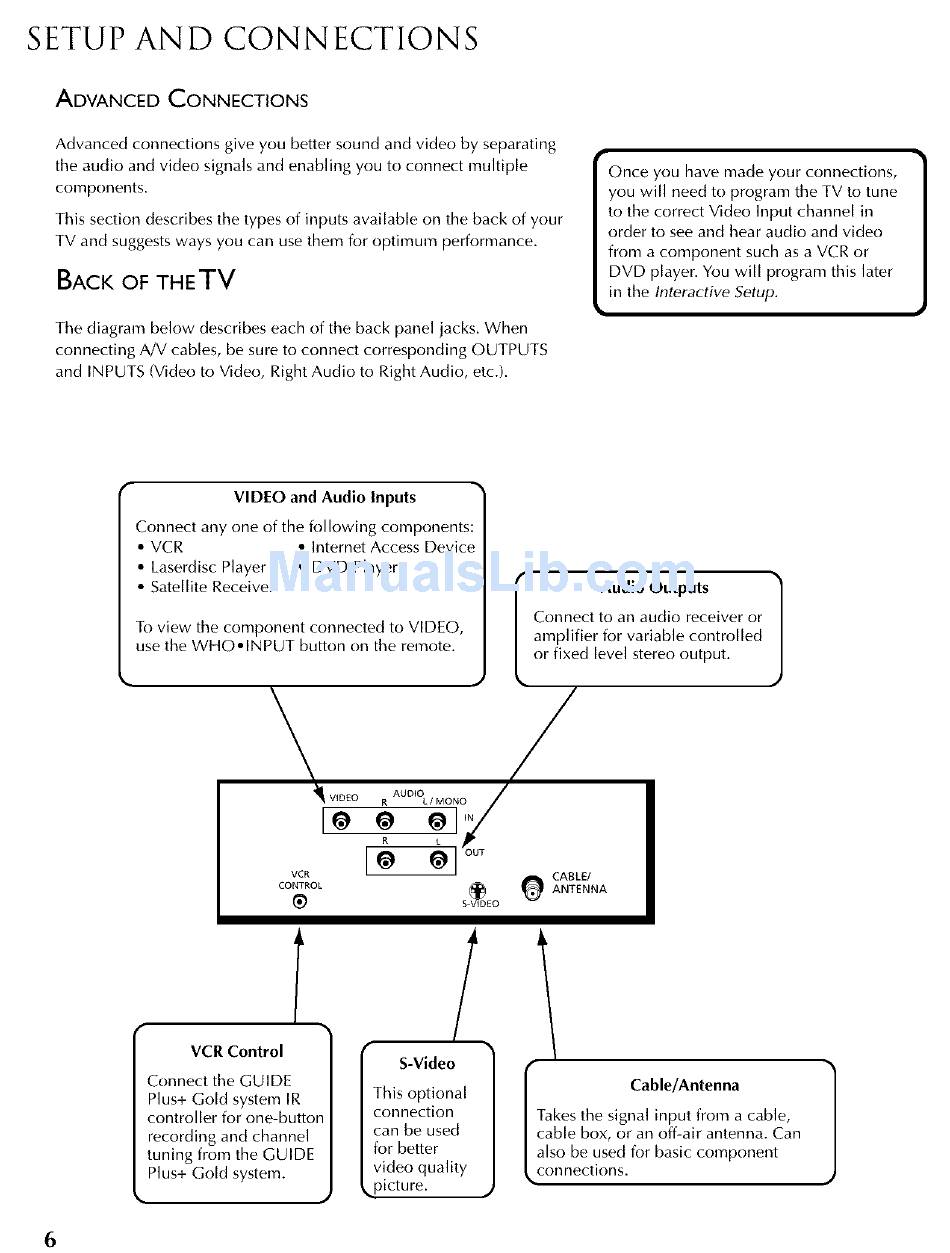

The diagrarn below describes each of the back panel jacks. When
connecting A/V cables, be sure to connect corresponding OUTPUTS
and INPUTS (Vide() to Vide(), Right Audio to Right Audio, etc.).
Once you have made your connections,
you will need to program the TV to tune
to the correct Video input channel in
order to see and hear audio and video
from a component such as a VCR or
DVD player. You will program this later
in the Interactive Setup.
J
VIDEO and Audio Inputs
Connect any one of the following cornponents
• VCR • Internet Access Device
• Laserdisc Player • DVD Player
• Satellite Receiver
To view the component connected to VIDEO,
use the WHO • IN PUT button on the remote.
\
_ VIDEO
[e
VCR
CONTROL
[_- _ _OUT
S V_ID£O
VCR Control
T
Connect the GUIDE
Plus+ Gold systern IR
controller for one-button
recording and channel
tuning frorn the GUIDE
Plus+ Gold system.
S-Video
This optional
connection
can be used
for better
video quality
_.picture.
/
1
Audio Outputs
Connect to an audio re'ceiver or
arnplifier for variable controlled
or fixed level stere() output.
/
e CABLE/
ANTENNA
I Cable/Antenna
Takes the signal input frorn a cable,
cable box, or an off-air antenna. Can
also be used for basic component
connections.
