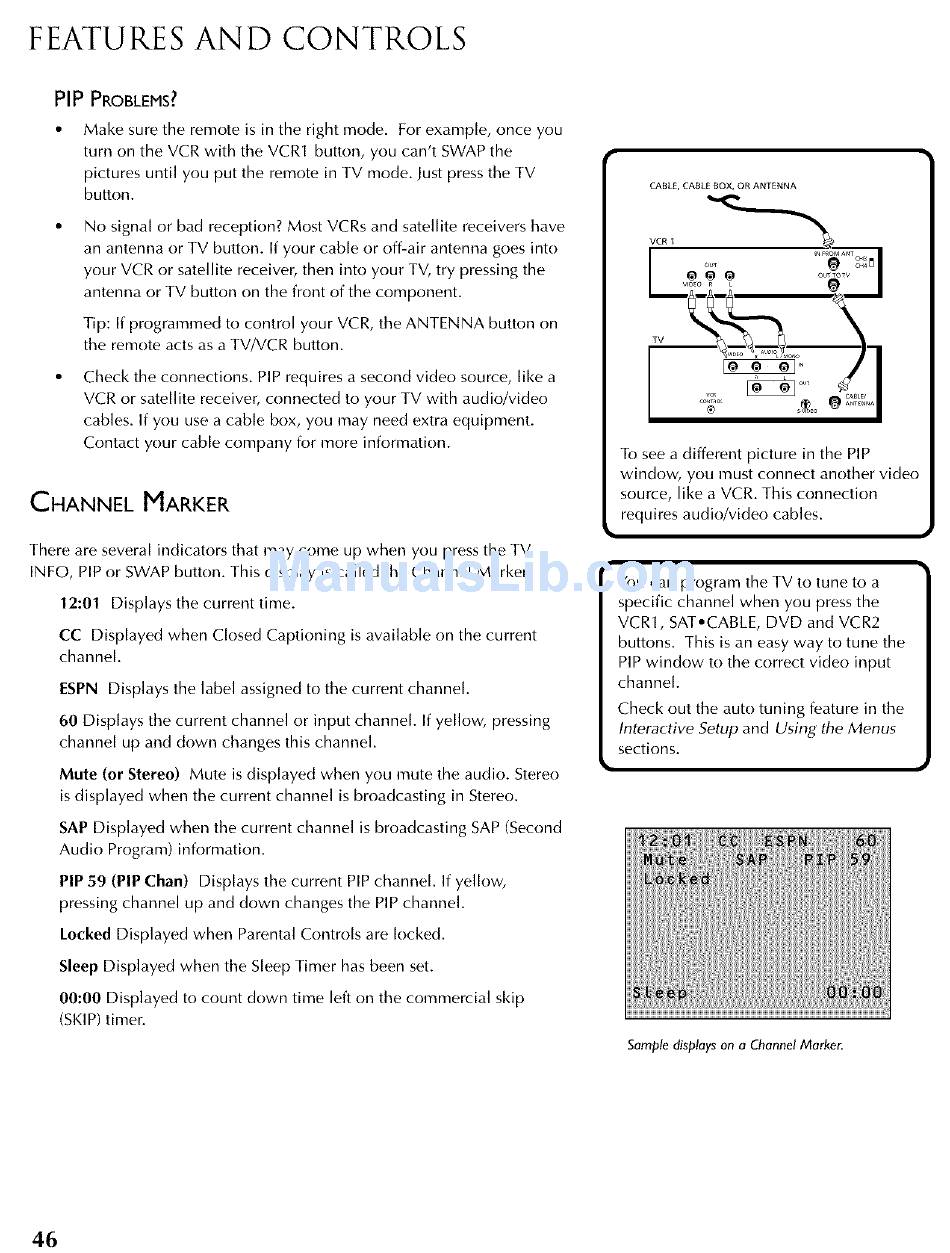

Channel Marker - ProScan PS27410YX1AX User Manual

FEATURES AND CONTROLS
PIP PROBLEMS?
Make sure the remote is in the right mode. For example, once you
turn on the VCR with the VCR1 button, you can't SWAP the
pictures until you put the remote in TV mode. Just press the TV
button.
No signal or bad reception? Most VCRs and satellite receivers have
an antenna or TV button. If your cable or off-air antenna goes into
your VCR or satellite receiver, then into your TV, try pressing the
antenna or TV button on the front of the component.
Tip: If programmed to control your VCR, the ANTENNA button on
tile remote acts as a TV/VCR button.
Check the connections. PIP re,quires a second video source, like a
VCR or satellite receiver, connected to your TV with audio/video
cables. If you use a cable box, you may need extra equipment.
Contact your cable company for more information.
CHANNEL MARKER
There are several indicators that may come up when you press the TV,
INFO, PIP or SWAP button. This display is called the Channel Marker.
12:01 Displays the current time.
CC Displayed when Closed Captioning is available on the current
channel.
ESPN Displays the label assigned to the current channel.
60 Displays the current channel or input channel. If yellow, pressing
channel up and down changes this channel.
Mute (or Stereo) Mute is displayed when you mute the audio. Stereo
is displayed when the current channel is broadcasting in Stere().
SAP Displayed when the current channel is broadcasting SAP (Second
Audio Program) information.
PIP 59 (PIP Chan) Displays the current PIP channel. If yellow,
pressing channel up and down changes the PIP channel.
locked Displayed when Parental Controls are locked.
Sleep Displayed when the Sleep Timer has been set.
00:00 Displayed to count down time left on the commercial skip
(SKIP) timer.
CABLE, CABLEBOX, OR ANTENNA
TV
To see a different picture, in the PIP
window, you must connect another video
source, like a VCR. This connection
requires audio/video cables.
m
You can program the TV to tune to a
specific channel when you press the
VCR1, SAT.CABLE, DVD and VCR2
buttons. This is an easy way to tune the
PIP window to the correct vide() input
channel.
Check out the auto tuning feature in the
Interactive Setup and Using the Menus
sections.
Sample displays on a Channel Marker.
46
