F
EATURES
Inputs – Four, six, eight and twelve input models are available for
composite, S-video, and stereo audio.
Outputs – Dual video outputs on 4-pin Mini DIN and/or BNC,
dual audio outputs on RCA and/or 3.5 mm captive screw,
connectors.
Vertical Interval Switching – Switches are prompted to occur
during the vertical blanking period for crisp, clean broadcast
quality switches.
Video genlock – All video models include broadcast quality
NTSC/PAL/SECAM video genlock capabilities, providing
synchronization of video signals of one device with those from
another video source and resulting in smooth and clean
transitions when switching between inputs.
Autoswitching – Allows any input to be selected automatically
when the switcher detects a source, making it ideal for automatic
routing and unattended operation.
Encoding capabilities – S-video models encode S-video to
composite video, providing simultaneous output on composite
video and S-video outputs. With two buffered outputs, the
S-video models have the flexibility of utilizing two different signal
formats on the output.
Quad standard – The SW AV series are capable of switching
NTSC 3.58, NTSC 4.43, PAL, and SECAM video (quad-standard)
for worldwide compatibility.
Balanced and unbalanced stereo audio – Offers the
convenience and option of accepting either balanced or
unbalanced stereo audio signals on 3.5 mm captive screw
connectors, or unbalanced audio on RCA connectors for SW RCA
models.
Input audio gain and attenuation – The SW AV series allows
users to set the level of audio gain or attenuation (-18dB to
+24dB). Individual input audio levels may be adjusted so there is
no noticeable volume difference between sources.
RS-232 control – A rear panel, RS-232 port enables control via a
third party control system. Extron's Simple Instruction Set (SIS
allows for quick and easy programming.
Contact closure – contact closure via a 9-pin remote control port
allows for additional control options. The KP 6 keypad remote
control that switches the inputs on the SW AV switchers (four and
six input models only) from a remote location can be used. It
comes with a 25-foot (8 meters) cable to connect the KP 6 to the
contact closure.
IR control – With the optional IR 102 kit, the SW AV switchers
can be easily controlled with an IR 102 handheld remote.
Rack-mountable – Each model is housed in a rugged,
1U high, full rack enclosure, and can be mounted into any rack
or under a desk.
Internal international power supply – The 100-240VAC,
50/60Hz, autoswitchable, internal power supply of the
SW AV Series provides worldwide power compatibility.

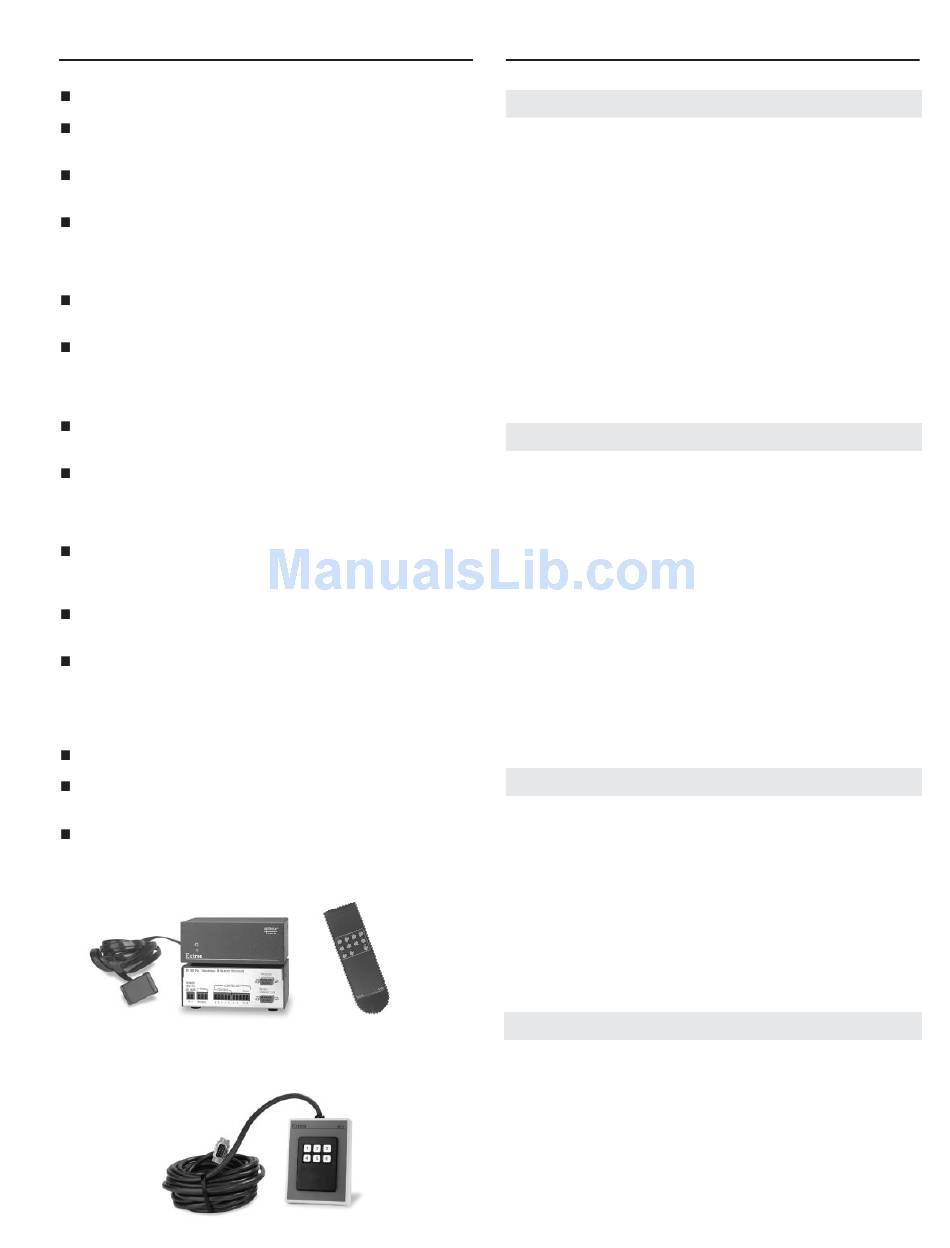

IR 102 Universal Remote Kit
KP 6 Remote Control Keypad
P N
ART UMBERS
Composite Video & Stereo Audio Switchers
Composite Video Switchers
SW 6V Six Input Composite Video Switcher ............................ 60-487-01
SW 8V Eight Input Composite Video Switcher .......................... 60-482-01
SW 12V Twelve Input Composite Video Switcher ...................... 60-483-01
Composite Video & Audio Switchers
SW 4AV Four Input Composite Video & Audio Switcher ............ 60-484-21
SW 4AV RCA Four Input Composite Video & Audio Switcher (RCA) .. 60-484-31
SW 6AV Six Input Composite Video & Audio Switcher .............. 60-487-21
SW 6AV RCA Six Input Composite Video & Audio Switcher (RCA) .... 60-487-31
SW 8AV Eight Input Composite Video & Audio Switcher ............ 60-482-21
SW 8AV RCA Eight Input Composite Video & Audio Switcher (RCA) .. 60-482-31
SW 12AV Twelve Input Composite Video & Audio Switcher ........ 60-483-21
SW 12AV RCA Twelve Input Composite Video & Audio Switcher (RCA) .. 60-483-31
S-video & Stereo Audio Switchers
S-video Switchers
SW 6SV Six Input S-video Switcher ............................................ 60-487-02
SW 8SV Eight Input S-video Switcher ........................................ 60-482-02
SW 12V Twelve Input S-video Switcher ...................................... 60-483-02
S-video & Audio Switchers
SW 4SVA Four Input S-video & Audio Switcher ............................ 60-484-22
SW 4SVA RCA Four Input S-video & Audio Switcher (RCA) .................. 60-484-32
SW 6SVA Six Input S-video & Audio Switcher .............................. 60-487-22
SW 6SVA RCA Six Input S-video & Audio Switcher (RCA) .................... 60-487-32
SW 8SVA Eight Input S-video & Audio Switcher .......................... 60-482-22
SW 8SVA RCA Eight Input S-video & Audio Switcher (RCA) ................ 60-482-32
™ )
SW 12SVA Twelve Input S-video & Audio Switcher ........................ 60-483-22
SW 12SVA RCA Twelve Input S-video & Audio Switcher (RCA) .............. 60-483-32
Stereo Audio Switchers
Stereo & Audio Switchers
SW 6A Six Input Audio Switcher .............................................. 60-487-20
SW 6A RCA Six Input Audio Switcher (RCA) .................................... 60-487-30
SW 8A Eight Input Audio Switcher .......................................... 60-482-20
SW 8A RCA Eight Input Audio Switcher (RCA) ................................ 60-482-30
SW 12A Twelve Input Audio Switcher ........................................ 60-483-20
SW 12A RCA Twelve Input Audio Switcher (RCA) .............................. 60-483-30
Accessories
Accessories
KP6 Keypad Remote Control.................................................................. 60-111-20
IR 102 Universal Remote kit .................................................................. 70-224-01
IR 102 Handheld Remote ...................................................................... 70-224-10
Under-desk Mount Kit .......................................................................... 70-077-01
