Pentax Optio 550 Operating Manual
  1. Manuals
  2. Brands
  3. Pentax Manuals
  4. Digital Camera
  5. OPTIO 550
  6. Operating manual
Pentax Optio 550 Operating Manual

Pentax Optio 550 Operating Manual

Hide thumbs Also See for Optio 550:

Advertisement

Quick Links

Download this manual

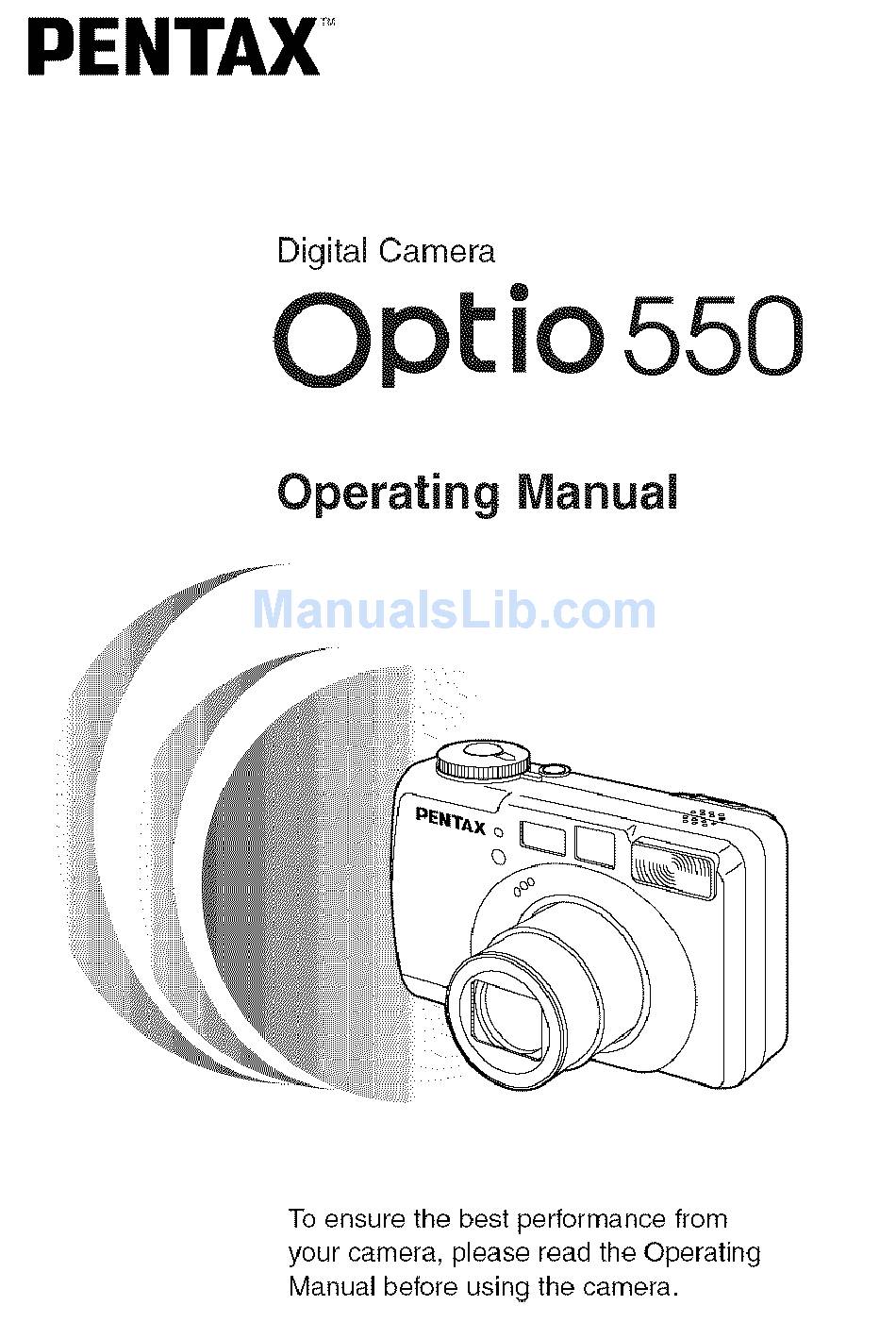

PENTAX _
Digital Camera
OPti0550
Operating
Manual
To ensure the best performance from
your camera, please read the Operating
Manual before using the camera.
