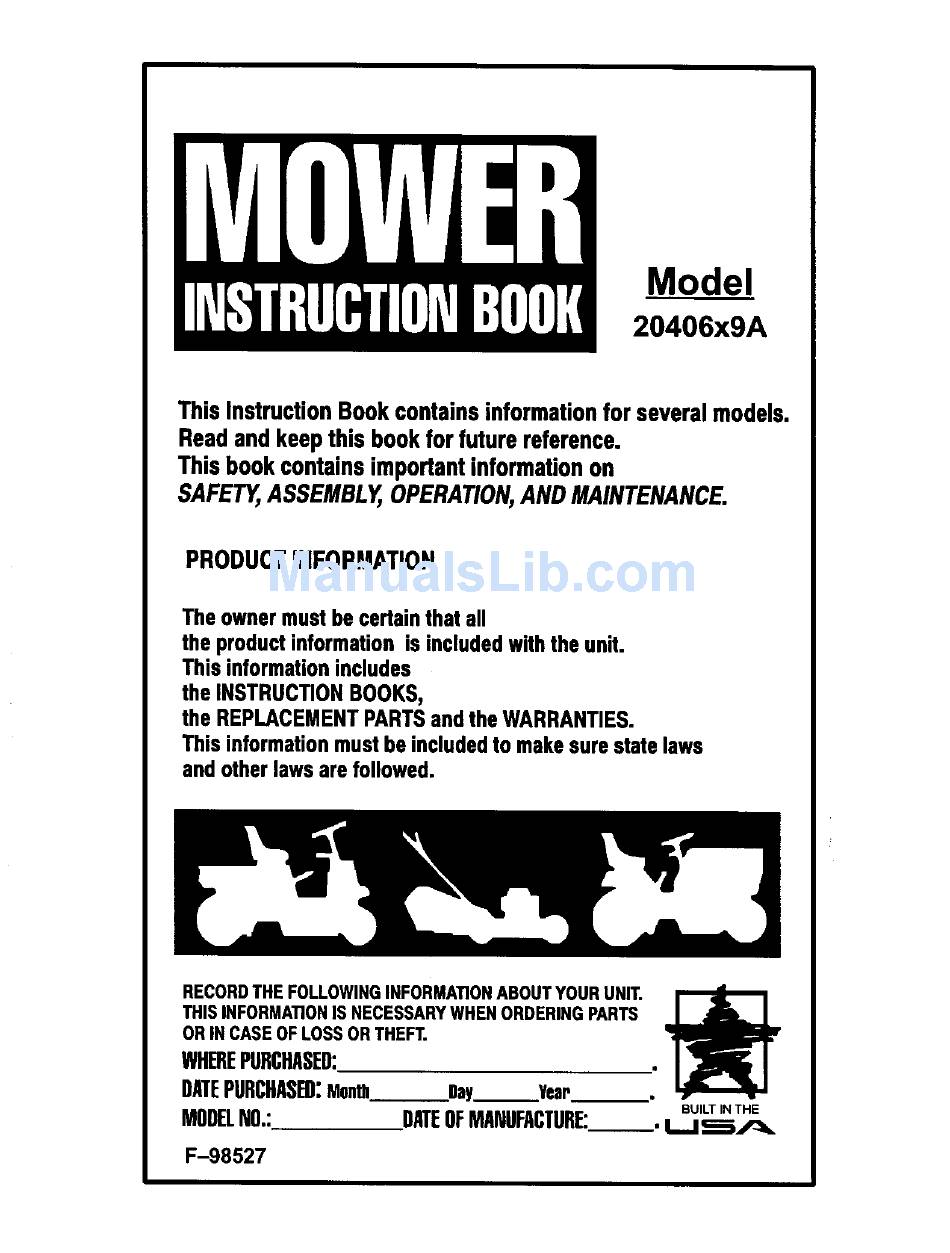

This InstructionBookcontainsinformationfor severalmodels.
Readand keep this book for future reference.
This book containsimportantinformationon
SAFETY,ASSEMBLY,OPERATION, A ND MAINTENANCE.
PRODUCTINFORMATION
The owner must be certainthat all
the productinformation is includedwiththe unit.
This informationincludes
the INSTRUCTIONBOOKS,
the REPLACEMENT PARTSandthe WARRANTIES.
This informationmust be includedto makesure state laws
and other lawsare followed.
RECORD THEFOLLOWING INFORMATION ABOUTYOURUNIT.
THIS INFORMATION IS NECESSARY WHEN ORDERING PARTS
OR IN CASE OF LOSS OR THEFT,
WHERE PURCHASED:
DATE P URCHASER:
Month
.Day,
Year.
MODEL NO.:
BUILT IN THE
DATE O FMANUFACTURE:.
t.J _,_,4_
F-98527
