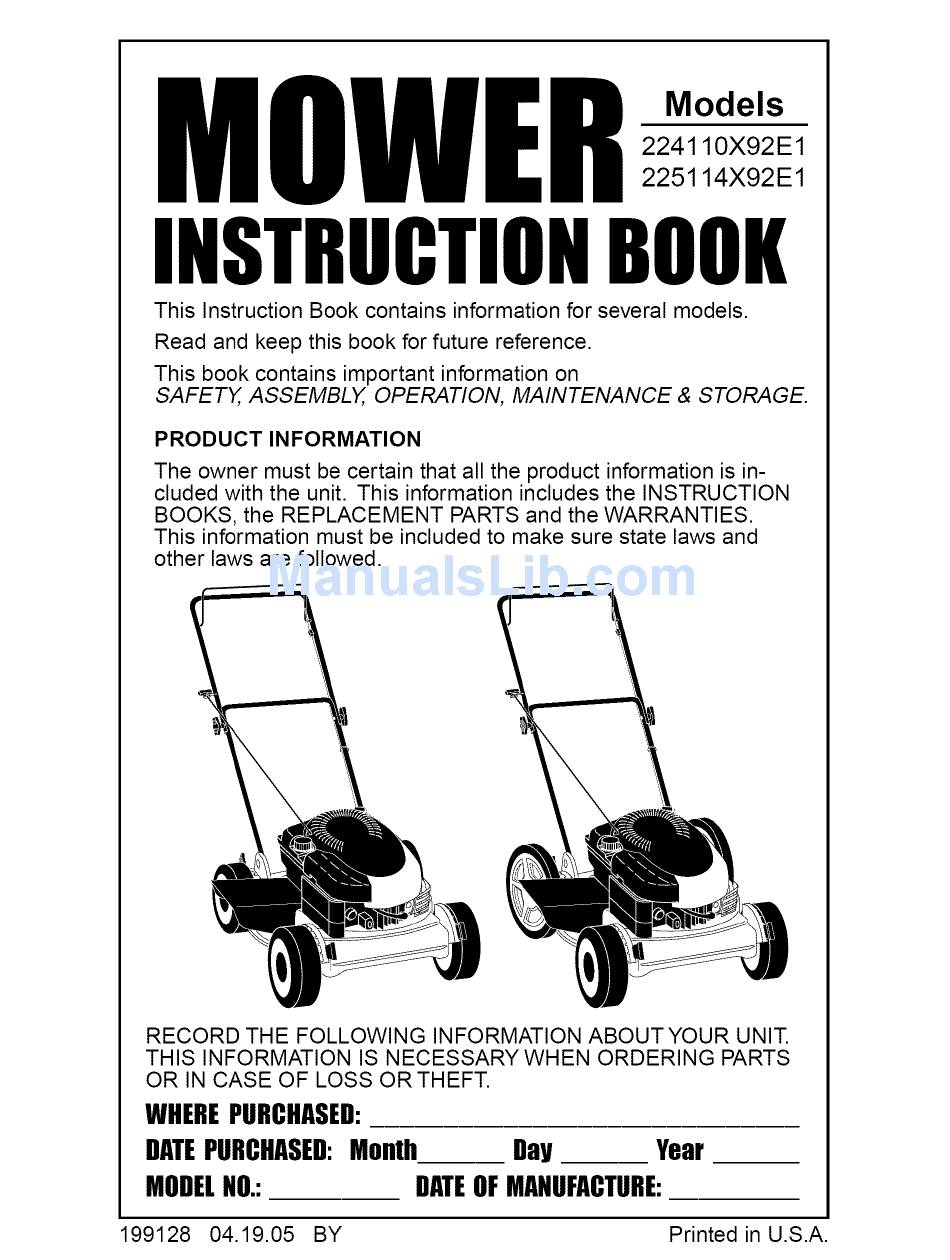

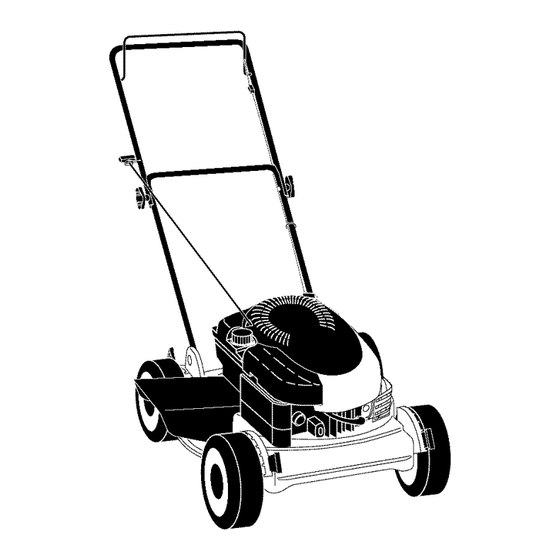

MOWER " °°es
224110X92E1
225114X92E1
INSTRUCTION
BOOK
This Instruction
Book contains
information
for several
models.
Read and keep this book for future
reference.
This book contains
important
information
on
SAFETY,
ASSEMBLY,
OPERATION,
MAINTENANCE
& STORAGE.
PRODUCT
INFORMATION
The owner
must be certain
that all the product
information
is in-
cluded
with the unit. This information
includes
the INSTRUCTION
BOOKS,
the REPLACEMENT
PARTS
and the WARRANTIES.
This information
must be included
to make sure state laws and
other laws are followed.
RECORD
THE FOLLOWING
INFORMATION
ABOUTYOUR
UNIT.
THIS INFORMATION
IS NECESSARY
WHEN
ORDERING
PARTS
OR IN CASE
OF LOSS OR THEFT.
WHERE PURCHASED:
DATE PURCHASED: Month
Day
Year
MODEL N O.:
DATE OFMANUFACTURE:
199128
04.19.05
BY
Printed
in U.S.A.
Advertisement
Table of Contents
Related Manuals for Murray 224110X92E1
Summary of Contents for Murray 224110X92E1
- Page 1 MOWER " °°es 224110X92E1 225114X92E1 INSTRUCTION BOOK This Instruction Book contains information for several models. Read and keep this book for future reference. This book contains important information SAFETY, ASSEMBLY, OPERATION, MAINTENANCE & STORAGE. PRODUCT INFORMATION The owner must be certain that all the product information is in-...
-
Page 2: Warranty
Maintenance ........9-11 Warranty ..........Safety Rules ......... Service and Adjustments ....... Product Specifications ......Storage ..........13-14 Assembly/Pre-Operation ......Troubleshooting ........ 14-15 Operation ..........Repair Parts ........16-17 Maintenance Schedule ......Service ........Back Cover The Manufacturer warrants to the original consumer purchaser that this product... -
Page 3: Of The Owner
This instruction book is written for a person unit is correctly assembled. The owner must with some mechanical ability. Like most ser- carefully check the unit according to the in- structions in this manual before it is first used. vice books, not all the steps are described. -
Page 4: Slope Operation
• See manufacturer'sinstructionsfor • Be alert and turn machine off if children proper operationand installationof enter the area. accessories.Only use accessoriesap- • Before and while walking backwards, proved by the manufacturer. look behind and down for small children. • Stop the blade(s)when crossing gravel •... - Page 5 Neverattemptto makewheel height • Mowerbladesare sharp and can cut. adjustmentswhile the engineis running. Wrap the blade(s)or wear gloves,and Grasscatchercomponentsare subjectto use extra caution when servicing them. wear, damage, and deterioration,which • Do not change the enginegovernorset- couldexposemovingpartsor allowobjects ting or overspeedthe engine. to be thrown.
- Page 6 KNOWYOUR LAWN MOWER READTHISOWNER'SMANUALANDALLSAFETYRULESBEFOREOPERATINGYOUR LAWNMOWER.Comparethe illustrationswithyour lawnmowertofamiliarizeyourselfwith the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your lawn mower or in literature supplied with the product. Learn and understand their meaning. CAUTION ENGINE ENGINE...
- Page 7 The operationof any lawn _CAUTION: Do not run your lawn mower SAFE.GLASSES mowercan result in foreign without discharge guard, approved grass objects throwninto the catcher or mulcher plate in place. eyes, which can result in severeeye damage.Always Hinge rod wear safetyglasses or eye shieldswhile Discharge operatingyour lawn moweror performing any adjustmentsor repairs.We recom-...
- Page 8 ADD GASOLINE • For extremely heavy cutting, reduce • Fill fuel tank to bottom of tank filler neck. width of cut by overlapping previously Do not overfill. Use fresh, clean, regular cut path and mow slowly. unleaded gasoline with a minimum of 87 •...
-
Page 9: Maintenance Schedule
MAINTENANCE BEFORE AFTER EVERY EVERY EVERY BEFORE EACH EACH 25HOURS SCHEDULE HOURS OR SEASON HOURS STORAGE Check for Loose Fasteners Clean / Inspect Grass Catcher Check Tires Check Drive Wheels Clean Lawn Mower ..Clean under Drive Cover *** Check Drive Belt / Putleys *** Check / Sharpen / Replace Blade... -
Page 10: Lawn Mower
LAWN MOWER Crankshaft Blade adapter Always observe safety rules when per- forming any maintenance. Lockwasher TIRES • Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber. • Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause... - Page 11 TO CHANGE ENGINE _CAUTION: Petroleum solvents, such as kerosene, are not to be used to clean NOTE: Before tipping lawn mower cartridge. They may cause deterioration drain oil, empty fuel tank by running of the cartridge. Do not oil cartridge. Do gine until fuel tank is empty.
- Page 12 AWARNING: Toavoid serious injury,beforeperformingany serviceor adjustments: 1. Releasecontrolbar and stop engine. 2. Makesure the blade and all movingparts have completelystopped. 3. Disconnectspark plug wire from spark plug and placewire where it cannotcome in contactwith plug. LAWN MOWER TO ADJUST CUTTING HEIGHT See "TO ADJUST CUTTING...
- Page 13 Immediatelyprepareyour lawn mowerfor storageat the end of the season or if the unit will not be used for 30 days or more. LAWN MOWER Operator MOWING When lawn mower is to be stored for a POSITION control bar period of time, clean it thoroughly, remove all dirt, grease, leaves,...
-
Page 14: Troubleshooting
ENGINE OTHER Drain oil (with engine warm) and replace • Do not store gasoline from one season to another. with clean engine oil. (See "ENGINE" the Maintenance section of this manual). • Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline... - Page 15 TROUBLESHOOTING - See appropriate section in manual unless directed to a qualified service center, PROBLEM CAUSE CORRECTION 1. Raise cutting height. Loss of power Rear of mower housing blade dragging in grass. Cutting too much grass. Raise cutting height. Dirty air filter. Clean/replace air filter.
- Page 16 ROTARY LAWN MOWER - - MODEL NUMBER 22411OX92 (224110X92E1)
- Page 17 ROTARY LAWN MOWER - - MODEL NUMBER 22411OX92 (224110X92E1) PART PART DESCRIPTION DESCRIPTION 198204 Lawn Mower Housing Assembly 193436 Torsion Spring (Includes Key Number 38) 851514 Blade Adapter 194177X428 Control Bar 141114 22" Blade 179585 Hardened Washer Rope Guide 851074 194179X479 Helical Lockwasher Upper Handle...
- Page 18 ROTARY LAWN MOWER - - MODEL NUMBER 225114X92E (225114X92E1) ///"...
- Page 19 ROTARY LAWN MOWER - - MODEL NUMBER 225114X92E (225114X92E1) PART PART DESCRIPTION DESCRIPTION 198204 Lawn Mower Housing (Includes Key Number 38) 193436 Torsion Spring 194177X428 Control Bar 851514 Blade Adapter 179585 22" Blade Rope Guide 141114 194179X479 Hardened Washer Upper Handle 851074 169708X479 Lower Handle...
-
Page 20: Parts And Service
PARTS AND SERVICE This product has been expertly engineered and carefully manufactured to rigid quality standards. As with all mechanical products, some adjustments or part replacement may be necessary during the life of your unit. For Parts and Service, contact our authorized distributor: call 1-800-849-1297...
